Template for kitchen worktop joints - IKEA
Code: BK650Related products

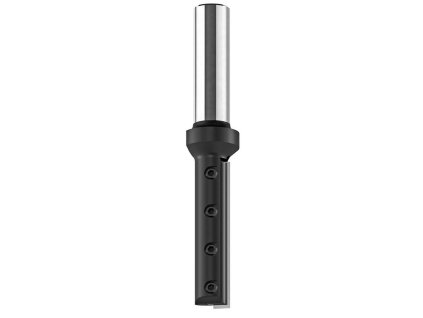

Milling cutter with one mini knife and clamping wedge. The longitudinal and transverse groove of the mini-knife allows better adjustment and security against axial movement of the knife. For milling and finishing, sequential drilling and grooving in board materials (laminate, chipboard and MDF) or hardwood or Corian. Can be used for manual milling or in CNC machining centres.
Rounding, chamfering, fluting and edge profiling. Milling curves and cut-outs with the multi-purpose milling jig. With guide system for milling grooves on rear walls or recessing of clamping rails. Milling grooves for Schallex, Kältefeind or automatic door and window seals with the milling tool. Milling of mineral materials (max. cutter diameter 45 mm).

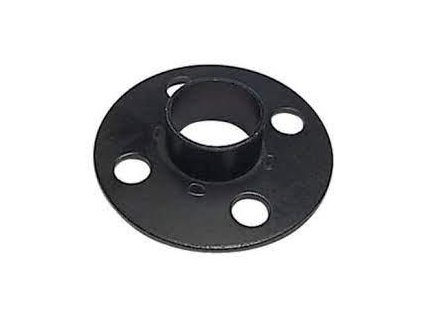

Copy ring 30 mm - standard for the production of kitchen countertop joints.
These cutters are designed for trimming, shaping and grooving.
For direct drilling, use type F044.
HM surface milling cutter - D60x12 L80 S=12x50 Z3 - ideal tool for large material removal from large surfaces.
Trimming cutter with one HM rotary razor blade and copy bearing on the shank. Ideal for trimming kitchen and worktops. Suitable for machining chipboard and laminated chipboard.
Ideal tool for engraving and lettering. If you find the razor dull or worn, simply flip it over and use another of the sharp blades. The locking screw safely secures the razor blade and thus ensures precision work.
Plate milling cutter without countersink, for milling grooves from 1.5 - 6 mm wide. The drift shank can be freely combined to create a groove according to your own requirements.
Use type 3 (without copy bearing) 4B (with copy bearing).
Designed for trimming and edging.
Type F042 is equipped with a copy bearing. Designed for manual milling.
Milling machine designed for precise face milling and copying according to the template underneath. With a traditional brazed cutter, the cutting diameter is reduced against the bearing during sharpening and this causes a tooth to form. The razor cutter eliminates this phenomenon with precisely aligned exchangeable razor blades, which can also be rotated and used with up to 4 blades. For milling Corian, it is possible to purchase a straight or tapered bearing with a plastic ring to ensure precise guidance through the material.
Type F043-195xx with a cutting length of 50 mm is equipped with two copy bearings for better guidance according to the template.
Semi-slotted cutter sets allow you to make an unlimited number of cuts by setting different cutting heights on your cutter and changing the bearings on the cutter included in the set.
These new CMT cutters feature double bearing and are spiral ground allowing clean smooth cuts in many materials. You no longer have to rotate the material or move the template. Unique tool especially for milling curved shapes along the template.
Product detailed description
What you need to work with the template:
- We recommend a top milling machine with a power of 1400W or more. With a lightweight and low-performance milling machine, you will struggle to maintain the accuracy and quality of the joint
- Copy ring D 30 mm, should be part of every top milling machine.
- Spline cutter D 12 mm. The right choice of tool is the most important and therefore we recommend only precise and high quality tools to achieve a precise and clean joint with low production costs. For less frequent use of the template, we recommend a spline cutter with soldered blades.
Additional parameters
Category: | Drilling and milling jigs |
---|---|
Warranty: | 2 years |
Weight: | 3 kg |
