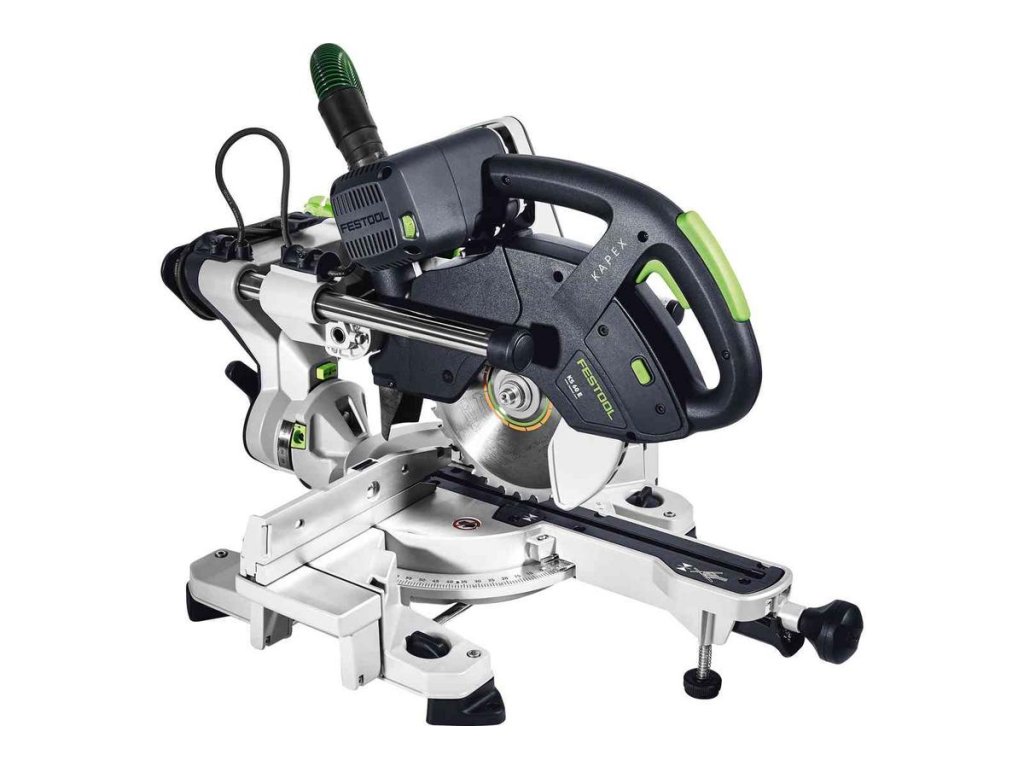

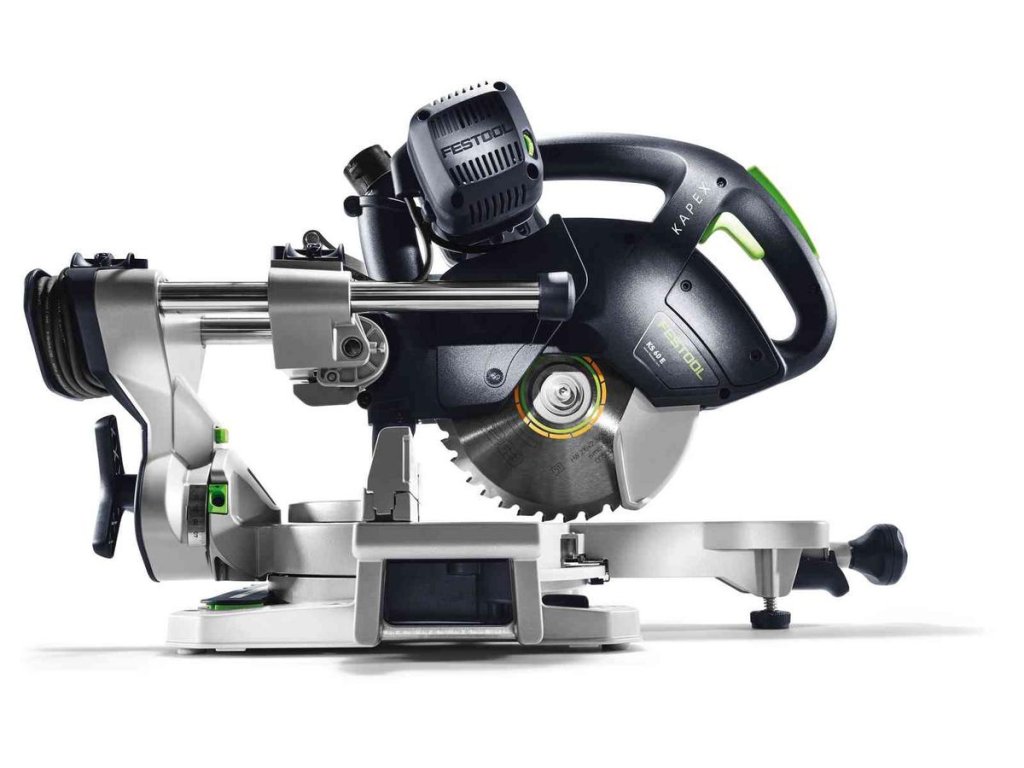

Festool | Miter saw KAPEX KS 60 E - SET
Code: 561728Related products
Product detailed description

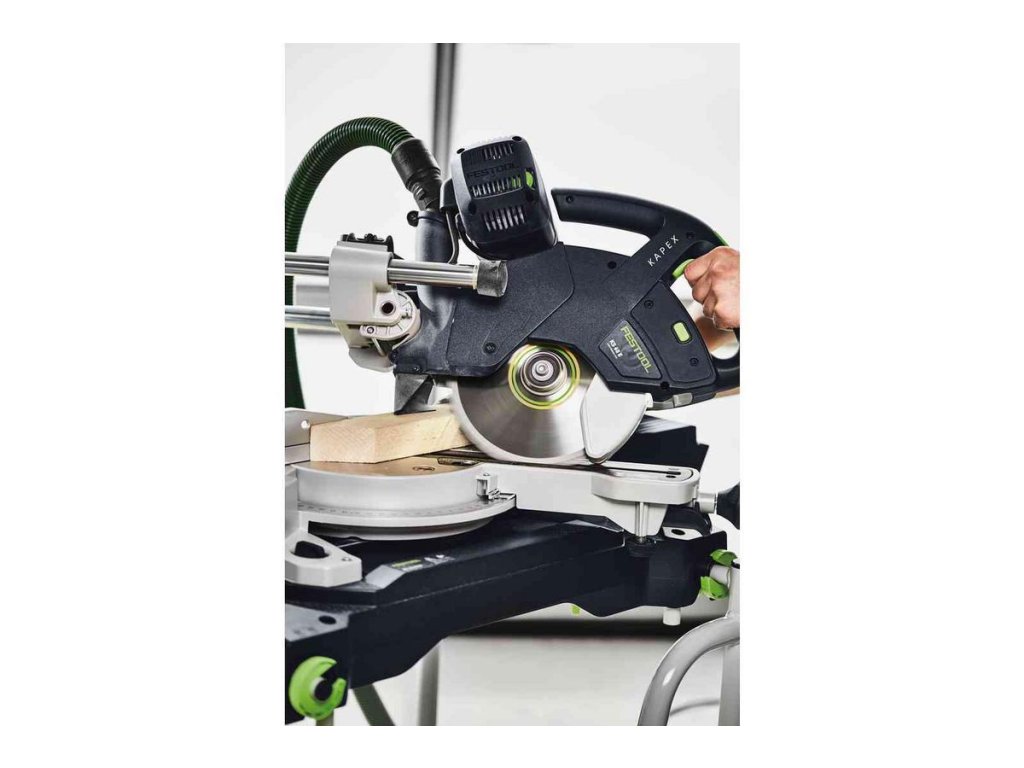

Mobility, versatility and the best results - the perfect combination. New KAPEX KS 60 saw.
It renounces everything that is unnecessary on the assembly. For example, every unnecessary gram of weight. It convinces with ergonomically positioned handles, cable reel and transport lock. And an extremely compact design thanks to the aligned guide rods. And it makes no compromises when it comes to precision and versatility: with a double-sided mitre angle of up to 60 degrees and double-sided tilt angles of up to 46 and 47 degrees respectively. The double guide post in a double ball bearing ensures safe and smooth guidance of the saw blade. And thanks to numerous other ingenious details such as the LED shadow light, the extendable table extension, the additional grooving function or the angle unit, the KAPEX KS 60 is the perfect combination of mobility, versatility and best results.

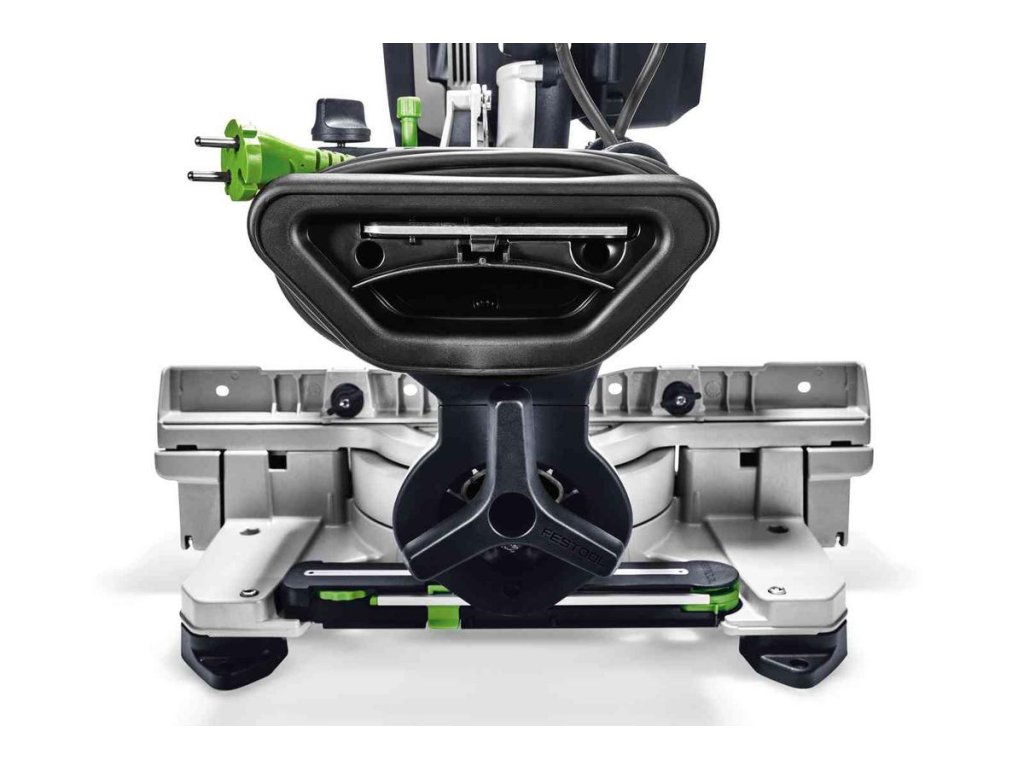

- Compact, lightweight, with ergonomic handles and cable retraction.
- An LED shadow light for precise tracking of the cut line is included in the kit.
- Angle unit for transferring internal and external angles.

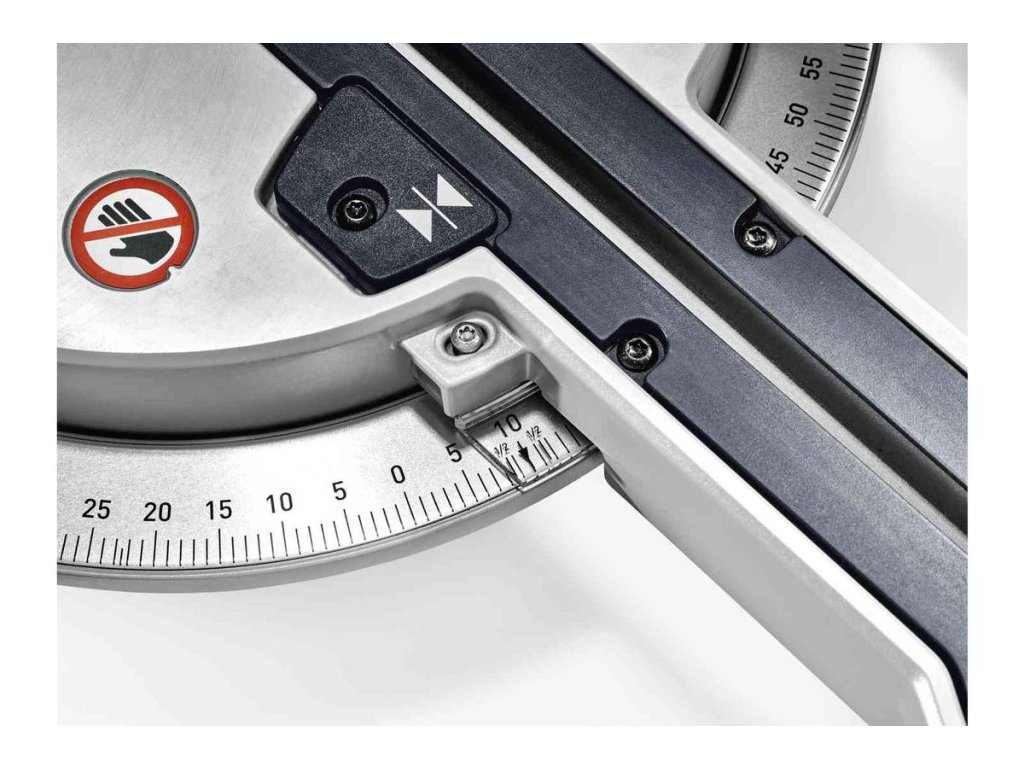

- Double-sided tilt angle up to 47°/46° and double-sided mitre angle up to 60°.
- Limiting the depth of cut for fast groove creation.
- For clean air and a healthy working environment: the extraction system in combination with the Festool mobile vacuum cleaner extracts dust where it is generated.
- Always a job adapted to the material: the Festool saw blades are ideally suited for the KAPEX KS 60 and the corresponding materials.
- Minimises pruning - minimises material costs. Thanks to flawless angle transmission with the angle unit and narrow beam LED light for optimum visibility of the outline.

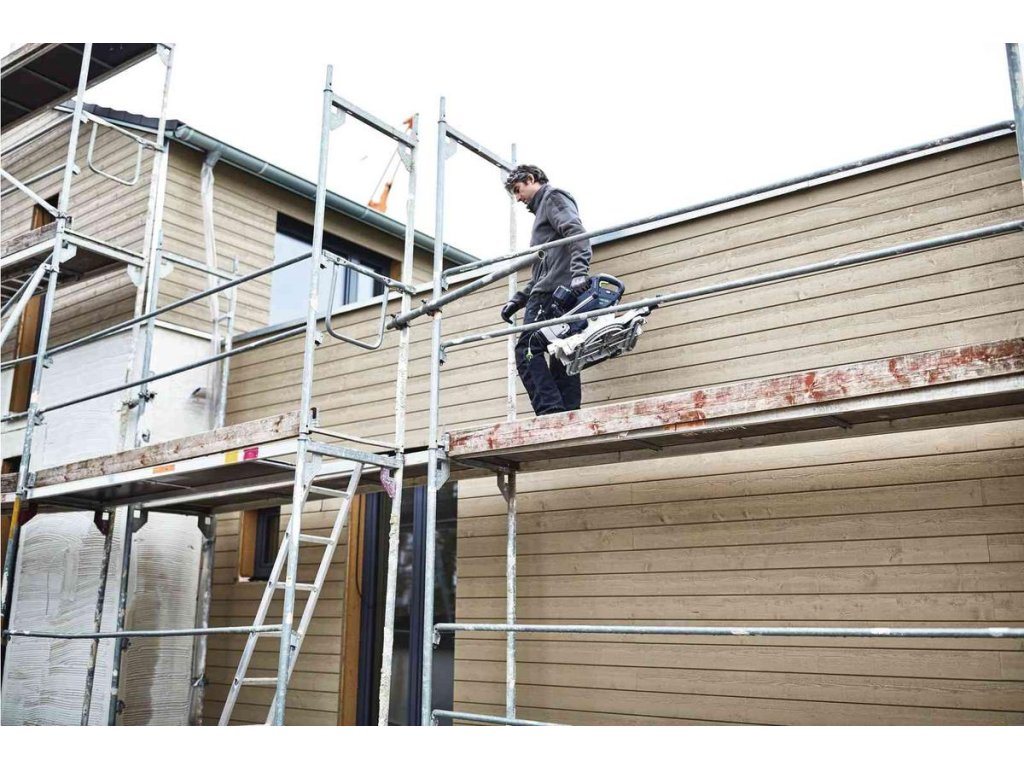

- Optimal for field work - regardless of whether you work on the ground floor or on the 3rd floor. Thanks to its compact design, light weight and ergonomically arranged handles, integrated cable reel and transport lock.

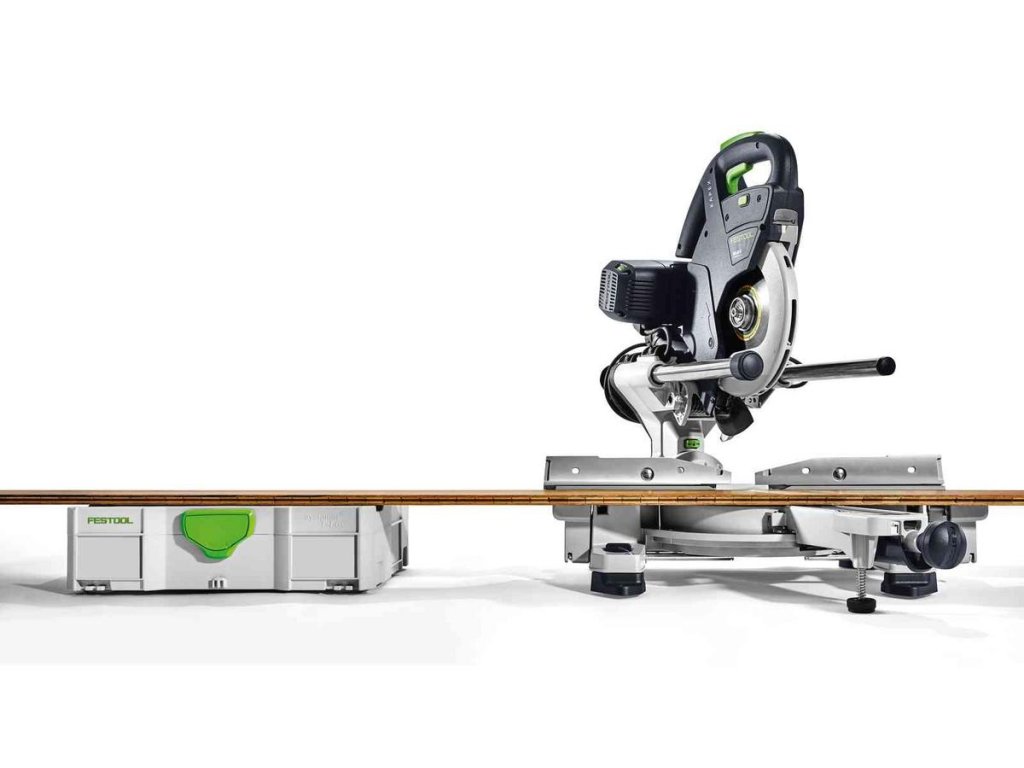

- Additional legs adjust the Kapex KS 60 to the height of the Systainer SYS 1
- Pull-out table extension.
- Grooving function due to depth of cut limitation

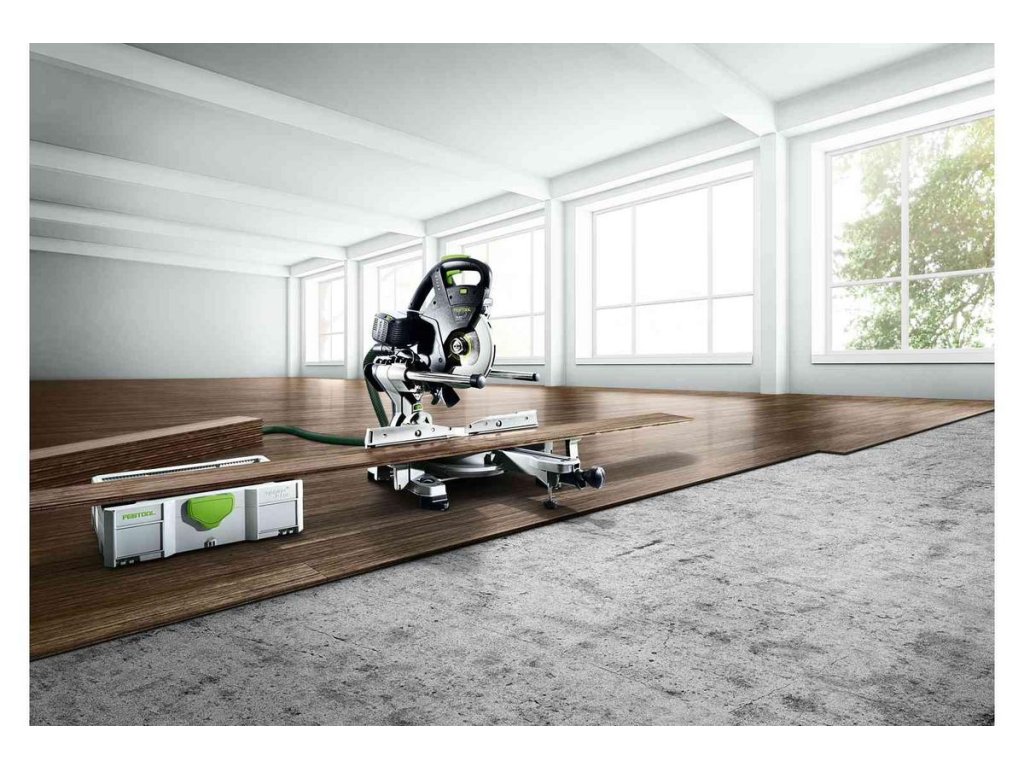

- Ideal for mobile use on the assembly site
- Cutting boards and panels up to 305 × 60 mm
- Cutting of strips, profiles and prisms up to 60 mm thickness
- Angularly precise adjustment of skirting boards and ceiling strips without calculation - in combination with the angle unit

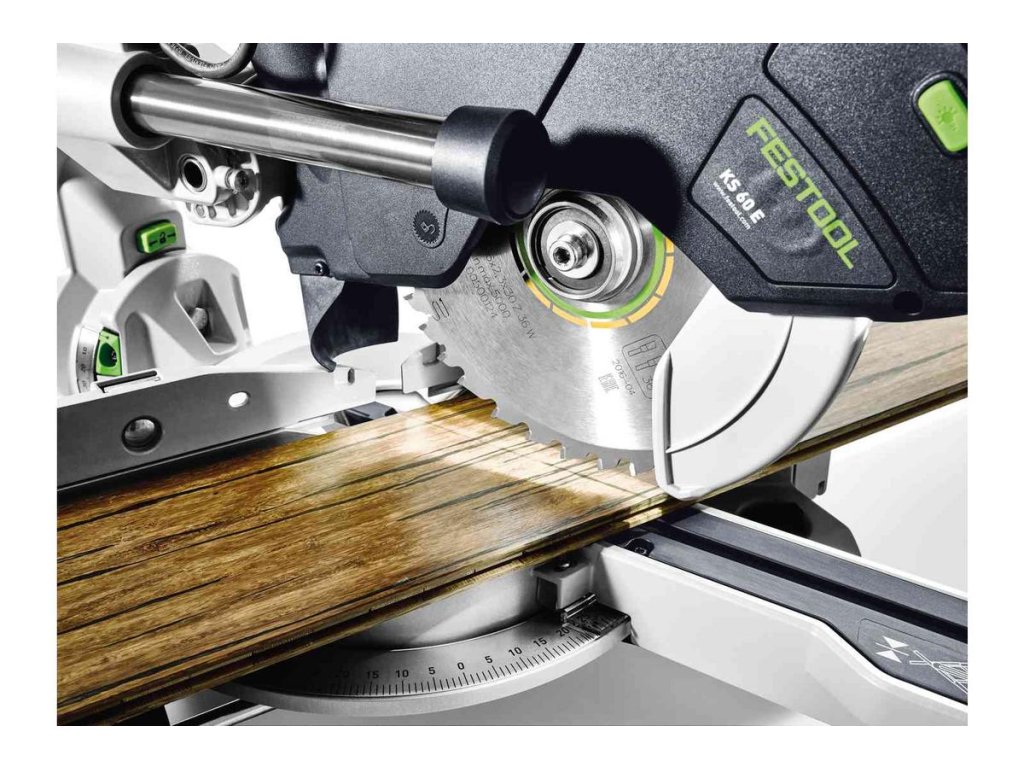

- Shadow light LED light for easy and precise attachment to the outline.
Technical data:
- power consumption: 1200 W
- idling speed: 1300-3500 min-¹
- Ø diameter of saw blade: 216 mm
- cutting depth 90°/90°: 305 x 60 mm
- cutting depth at 45°/90°: 215 x 60 mm
- angle of inclination: 47/46°
- bevel angle: 60/60°
- dimensions (W x D x H): 661 x 475 x 430 mm
- Dust extraction connection Ø: 27/36 mm
- weight: 17,8 kg
- depth of cut 60°/90° (right): 150 x 60 mm
- cutting depth 60°/90° (left): 150 x 60 mm
- cutting depth 45°/45° (right): 215 x 40 mm
- cutting depth 45°/45° (left): 215 x 20 mm

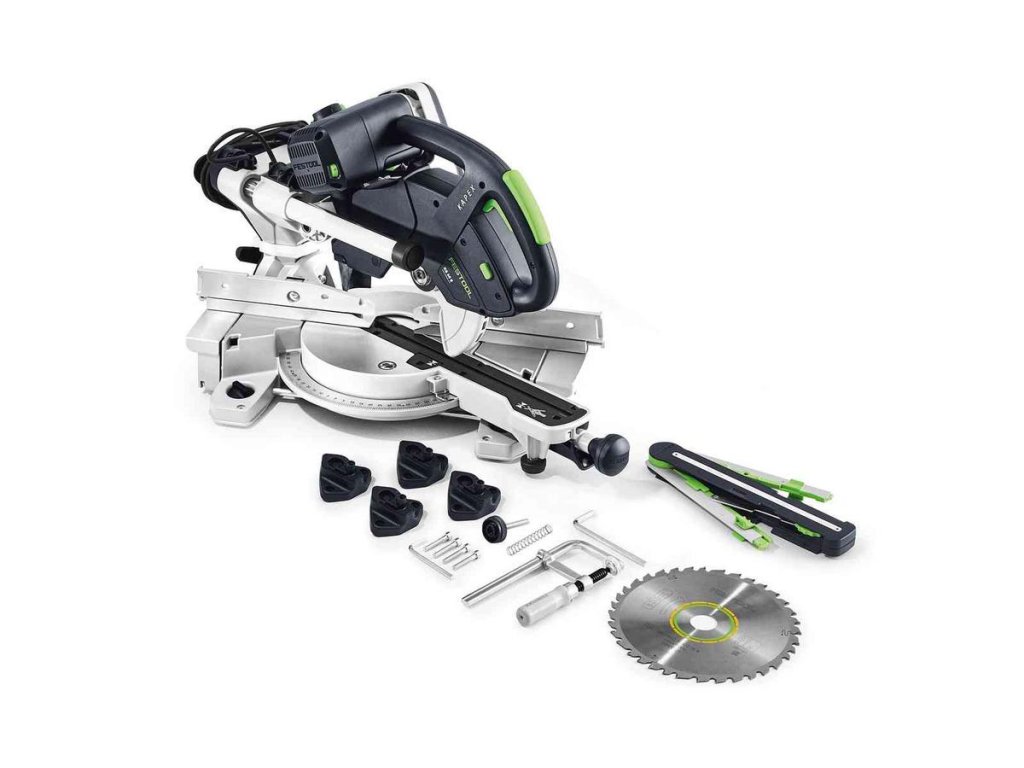

- universal carbide saw blade W36
- joinery clamps FSZ 120
- LED shadow light
- angular unit
- increase
- tools for the operator
- in cardboard
Additional parameters
| Category: | Table saws |
|---|---|
| Warranty: | 2 roky nebo All - inclusive 3 roky(po registraci zákazníkem) |
| Weight: | 21.88 kg |
| Saw blade diameter: | 216 mm |
| Power input: | 1200W |
