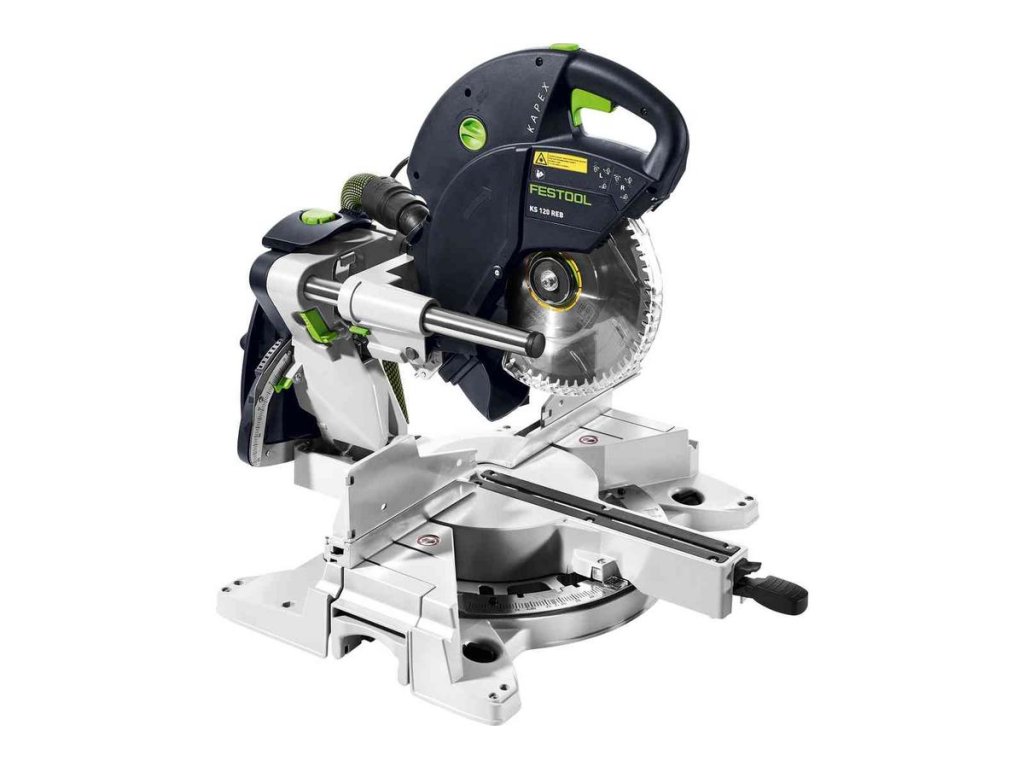

Festool | Miter saw KS 120 REB
Code: 575302Related products
Product detailed description
Lead left, lead right. Even where others only pretend to. With double-sided ball bushings that keep the sledge on the extra-large posts exactly in the right direction twice. With double seals for extreme durability, always precise and free of play.

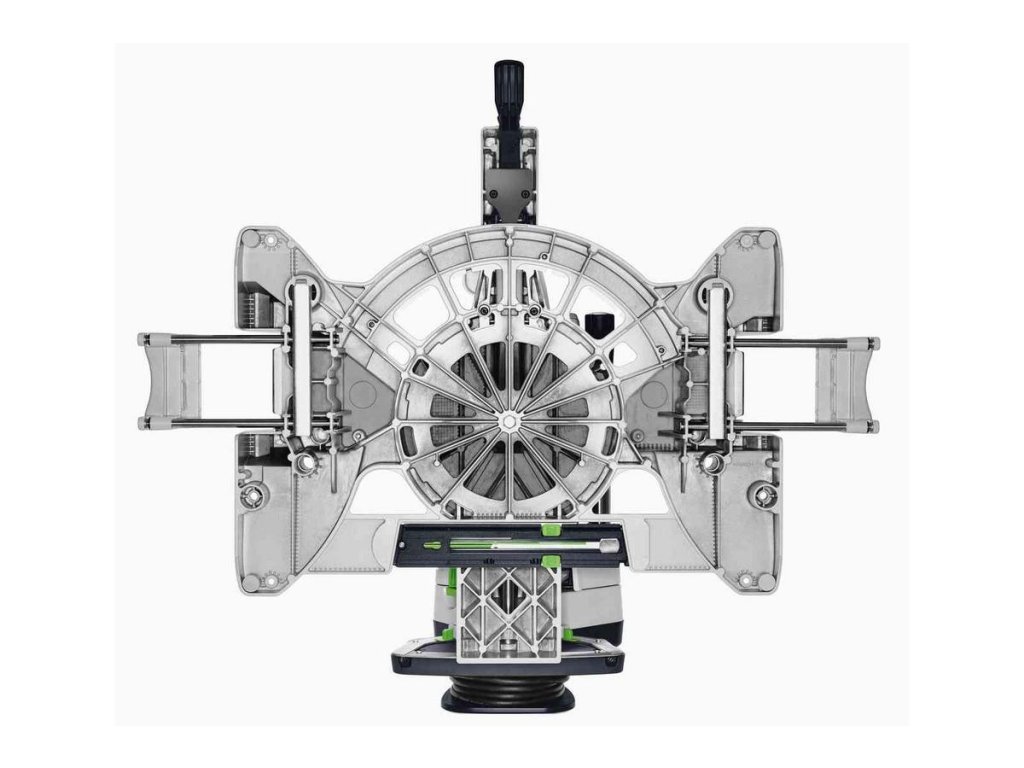

- Double guide post with double-sided ball bearings for unparalleled precision

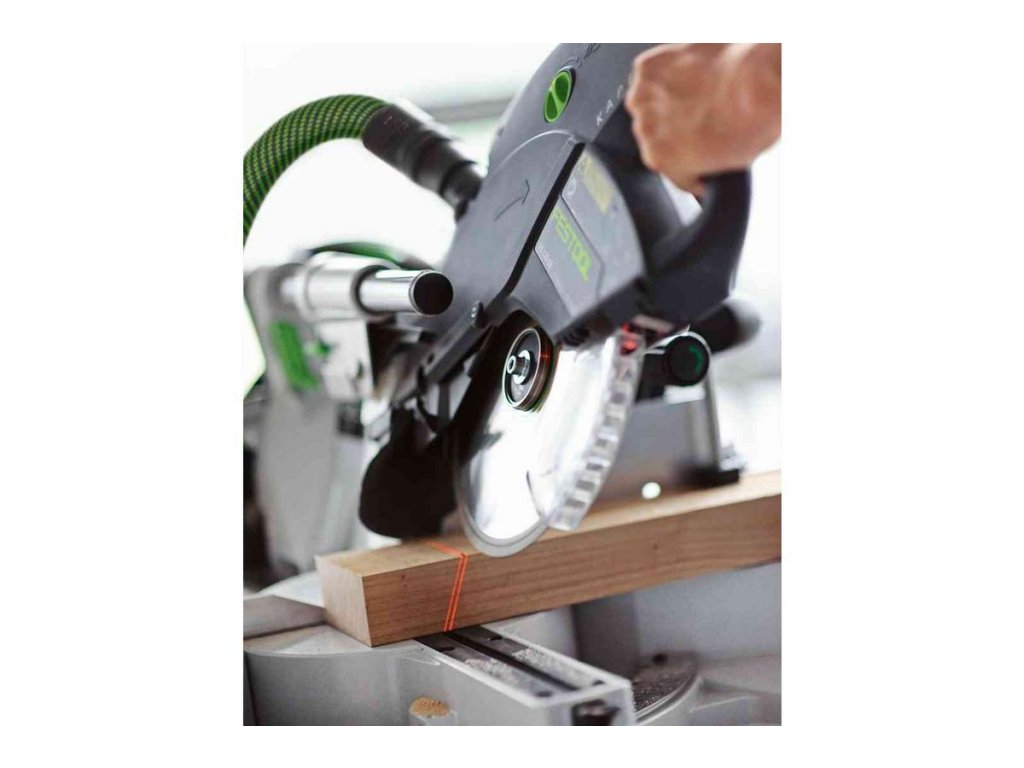

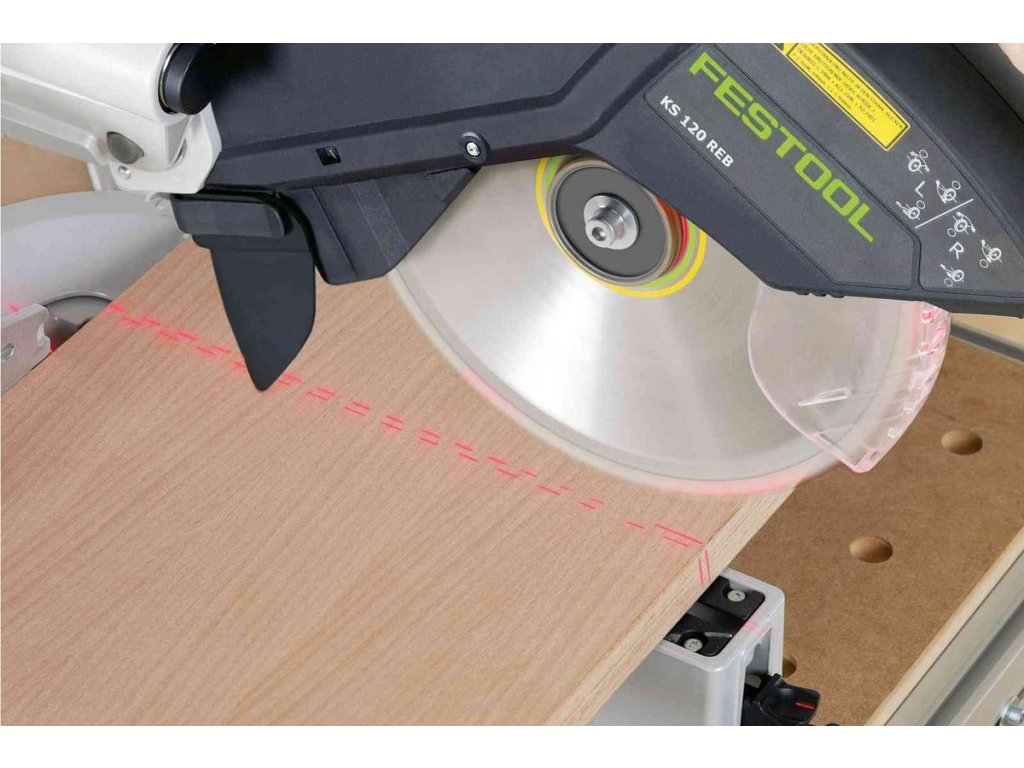

- Dual beam laser for precise cut marking
- Fine adjustment at the front for setting the blade angle with millimetre precision

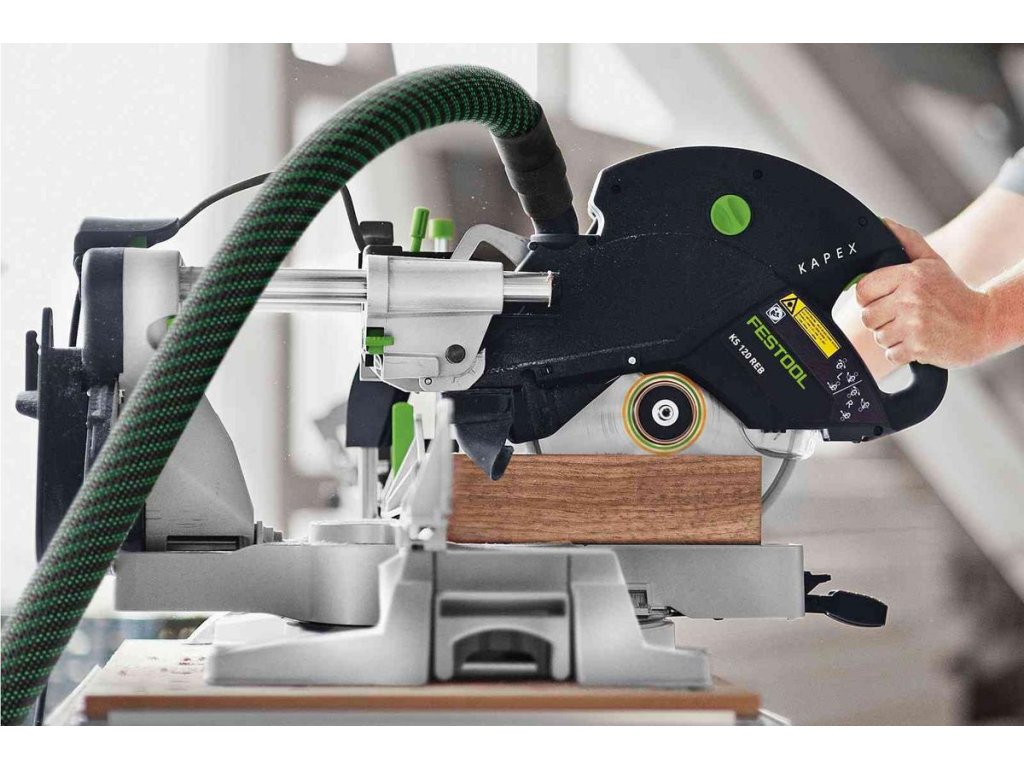

- Integrated special drip position for cutting depths up to max. 120 mm
- FastFix saw blade change for material-specific work
- Precise cuts thanks to two guide posts

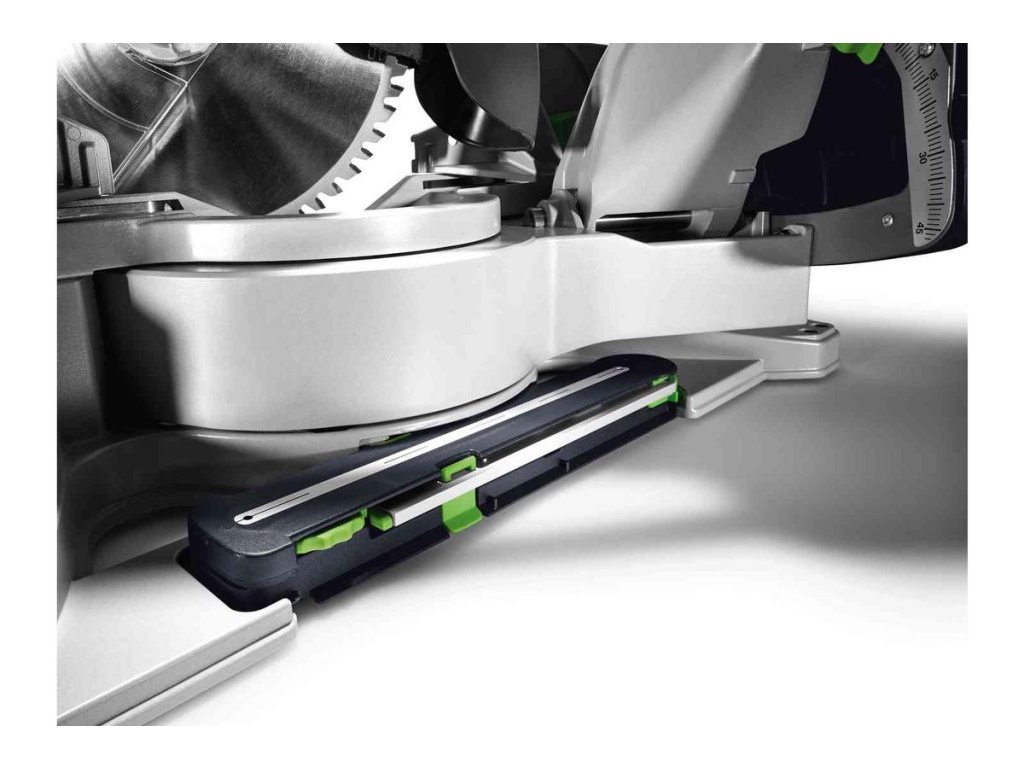

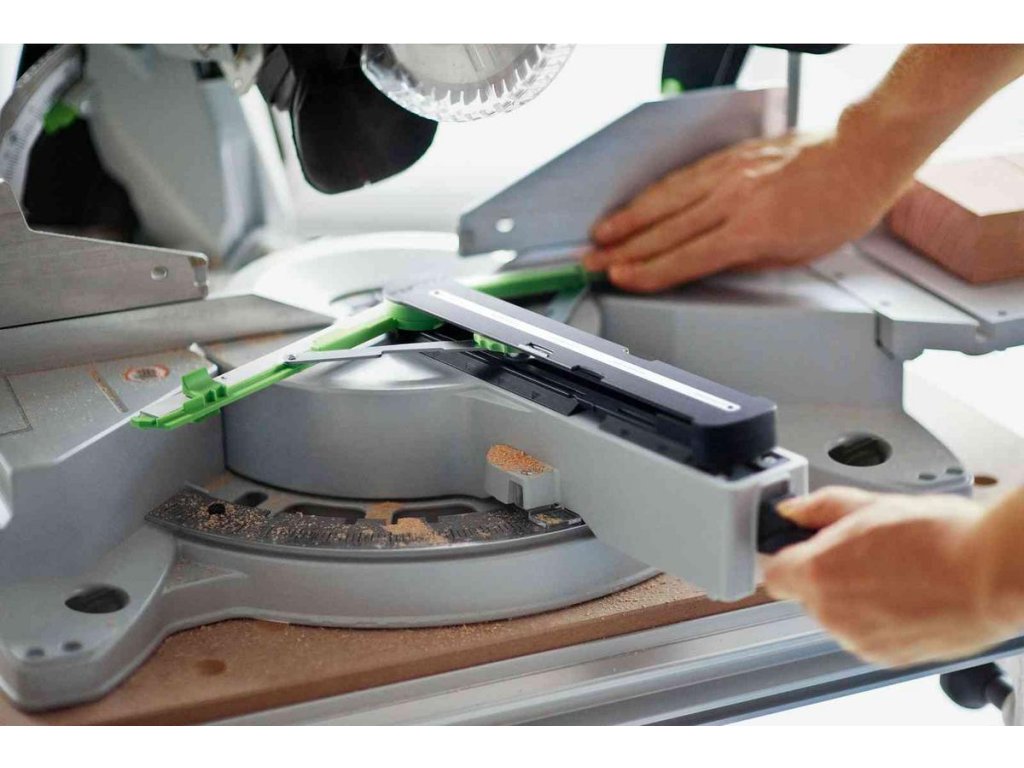

- Flawless angle transfer with angle unit and dual line laser
- Compact, lightweight design for convenient transport
- Speedbrake
Use:
- Cutting skirting boards and ceiling strips up to 120 mm high - without calculation
- Cutting boards and panels up to 305 x 88 mm
- Cutting of wreath profiles up to 168 mm in "real wall position"
- Cutting of prisms and beams up to a thickness of 88 mm
- Two laser lines for easy and precise attachment to the sketch from the right or left.
Technical data:
| Power input | 1600 W |
| idling speed | 1400-3400 min-¹ |
| saw blade diameter | 260 mm |
| depth of cut 90°/90° | 305 x 88 mm |
| depth of cut at 45°/90° | 215 x 88 mm |
| special cutting depth 90°/90° | 60 x 120 mm |
| wreath profile, diagonal cut at 45°/90° | 168 mm |
| angle of inclination | 47/47 ° |
| dimensions (W × H × D) | 713 x 500 x 470 mm |
| Ø connections for dust extraction | 27/36 mm |
| mass | 21,5 kg |
| special depth. 45°/90° (left) | 40 x 120 mm |
| special depth of cut at 45°/90° (right) | 20 x 120 mm |
| depth of cut 50°/90° (left) | 196 x 88 mm |
| depth of cut 60°/90° (right) | 152 x 88 mm |
| depth of cut 45°/45° (left) | 215 x 55 mm |
| depth of cut 45°/45° (right) | 215 x 35 mm |
| wreath profile, diagonal cut 90°/90° | 168 mm |
| bevel angle | 50/60 ° |
| working height | 900 mm |

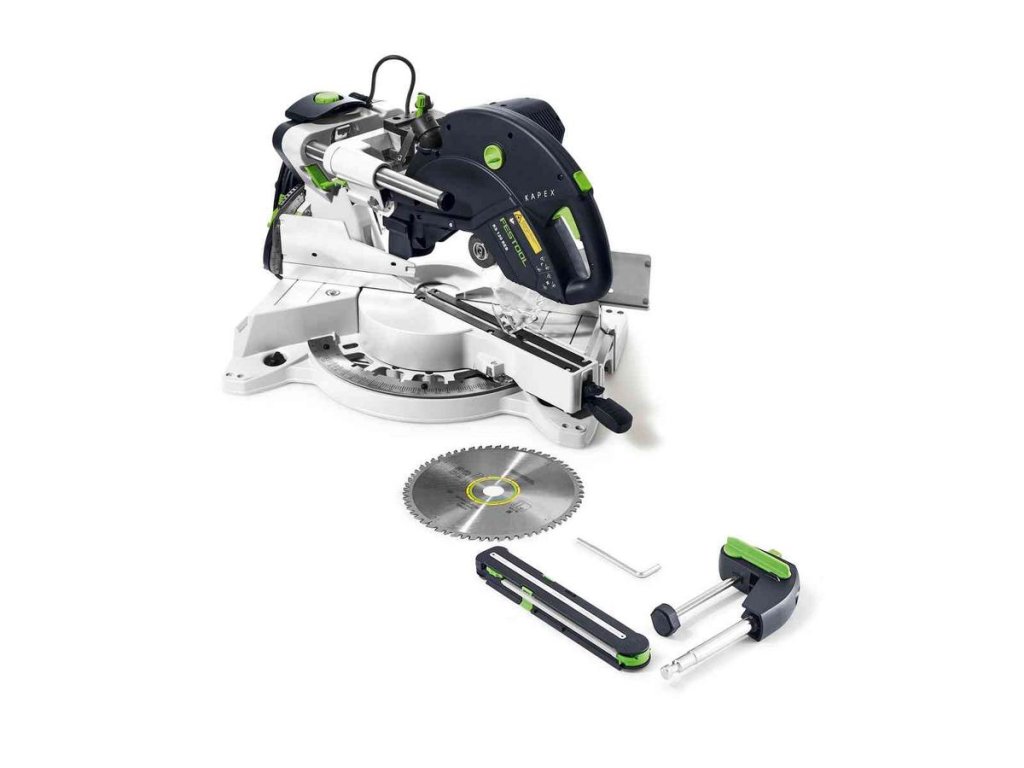

Scope of delivery:
- KS 120 EB
- universal carbide saw blade W60
- angular unit

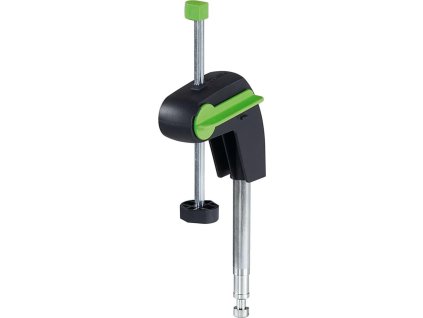

- workpiece clamp
- tools for the operator
- in cardboard
Additional parameters
| Category: | Table saws |
|---|---|
| Warranty: | 3 roky All - inclusive |
| Weight: | 27.845 kg |
| Saw blade diameter: | 260 mm |
| Power input: | 1600 W |
