IGM F463 Mini Shank cutter for surfaces

Code: F46300781
1 492 Kč

Choose variant

Surface milling cutters are ideal for fast feed and large material removal rates.

Detailed information

Cutter F 463: D35x10,5 L60 Shank = 8 x 38 Z3
In stock (>10 pcs) | F46300781
Delivery to: 11/11/2024
1 492 Kč
Cutter F 463: D38x12 L60 Shank =12 x 35 Z3
In stock (3 pcs) | F46300521
Delivery to: 11/11/2024
1 492 Kč

Product detailed description

The IGM F463 is a high-end tool designed primarily for machining flat surfaces made of solid wood, particleboard and MDF. Thanks to its robust design and powerful cutting parameters, it enables fast and efficient milling with high material removal while maintaining high quality machining.

The main advantage is the interchangeable, 4 x rotatable inserts made of high-quality carbide. These ensure a sharp cut every time, long tool life and the possibility of quick replacement after wear, without the need to re-sharpen the entire cutter. The result is always a perfect cut bottom surface.

Added value is high productivity thanks to the high feed and material removal, versatility for different types of boards and wood, easy maintenance and long life thanks to replaceable blades. The purchase price is higher, but it quickly pays for itself in time saved and production quality.

The milling machine can be used wherever larger areas need to be worked productively and with high quality:

  • In the production of panel furniture and interior elements
  • For the preparation of semi-finished products and cross-sections
  • When milling parts for construction joinery and door production
  • For milling plates and creating semi-grooves
  • On CNC machining centres in production and workshops

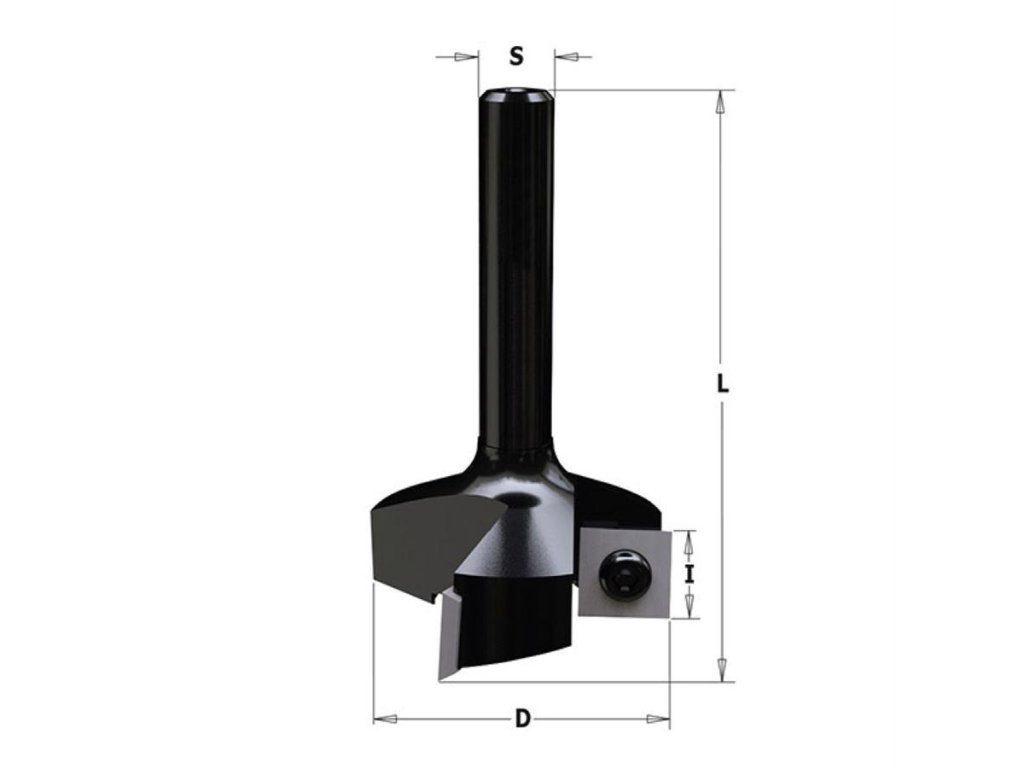

Technical data:

Order no. F46300781

  • Stem (S): 8 mm
  • Cutting diameter (D): 38 mm
  • Overall length (L): 60 mm
  • Cutting height (I): 10.5 mm
  • Number of teeth/needles (Z): 3

Spare razor blades for this tool under order no. NT13863

Order no. F46300521

  • Stem (S): 12 mm
  • Cutting diameter (D): 38 mm
  • Overall length (L): 60 mm
  • Cutting height (I): 12 mm
  • Number of teeth/needles (Z): 3

Spare razor blades for this tool under order no. N01212045

Scope of delivery:

  • package: 1 piece

Additional parameters

Category: Wood Cutters
Warranty: 2 years
Clamping shank: 8 mm
