Leveling lamella - Lamello - Bisco P 10 (145305)

Code: L145305
8 Kč
In stock (>10 pcs)
Delivery to:
22/04/2025
Delivery offer

Alignment slat, accessory for Clamex P10 joints Dimensions:52x19x7mm Packing (1pc)

Detailed information

Product detailed description

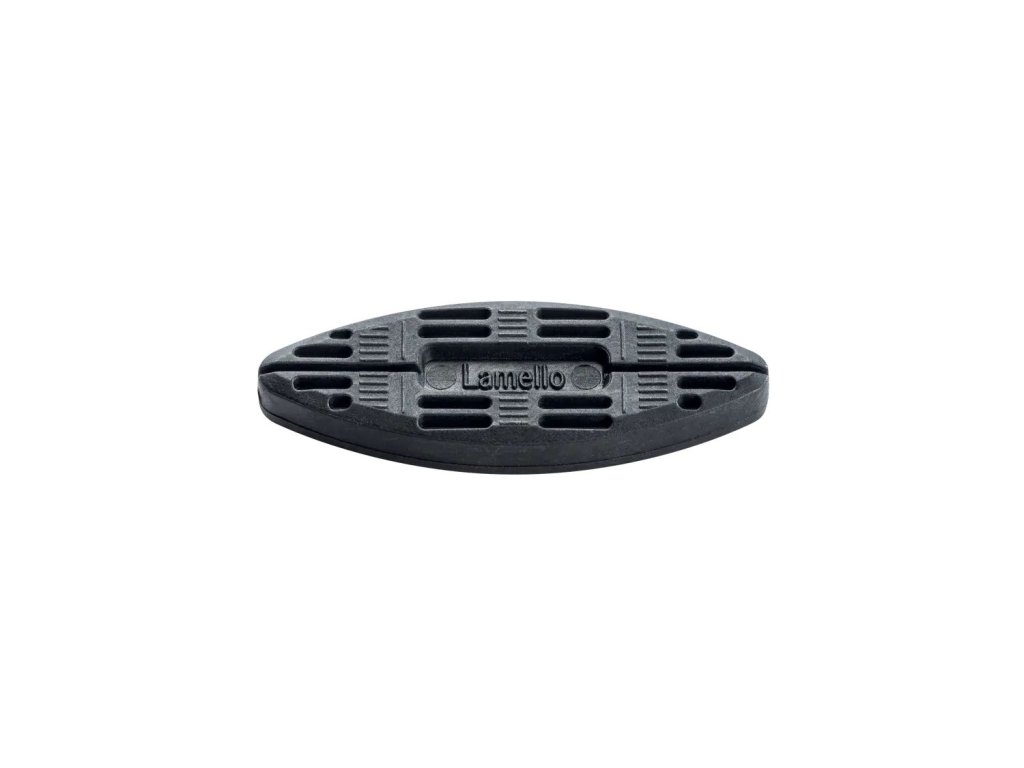

Lamello Bisco P-10 precision joint

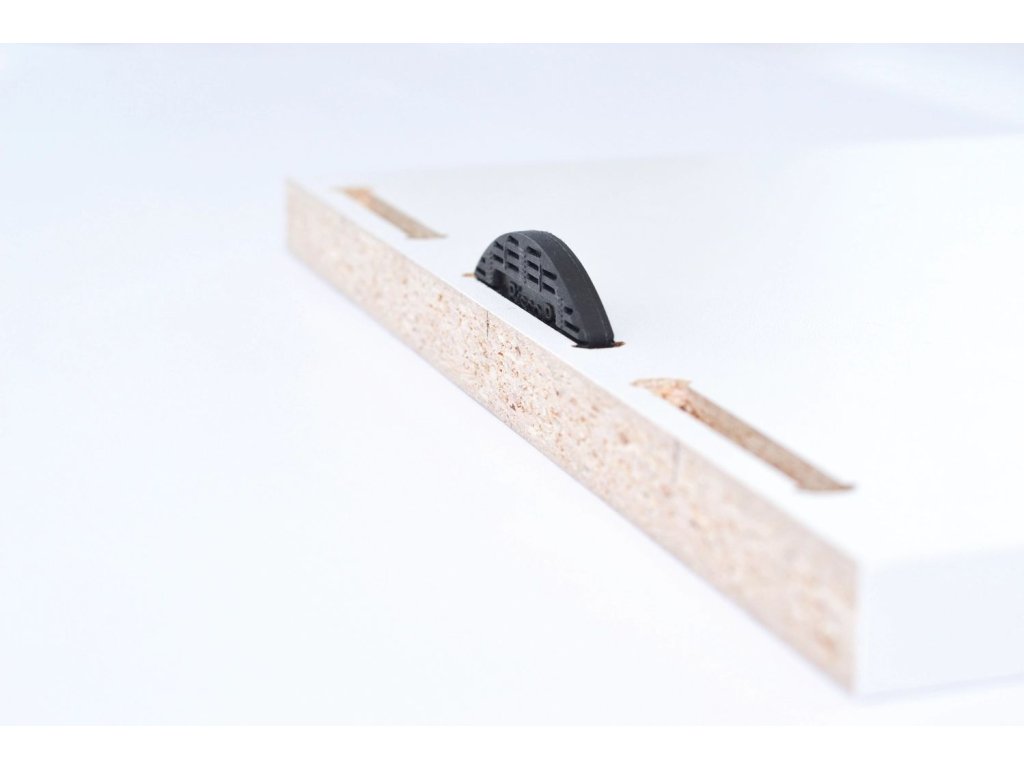

The P-System groove aligner ensures precise alignment of parts without visible holes.

Lamello | Bisco P-10 vyrovnávací lamela

Bisco P-10 replaces some locking couplers as a cost-effective alternative because it is significantly cheaper.

Important production notes

This type of joint can only be produced by Lamello Zeta P2 or on CNC machines. The groove cannot be produced with a standard laminating machine.

Technical Specifications:

  • Material:Fiberglass reinforced plastic

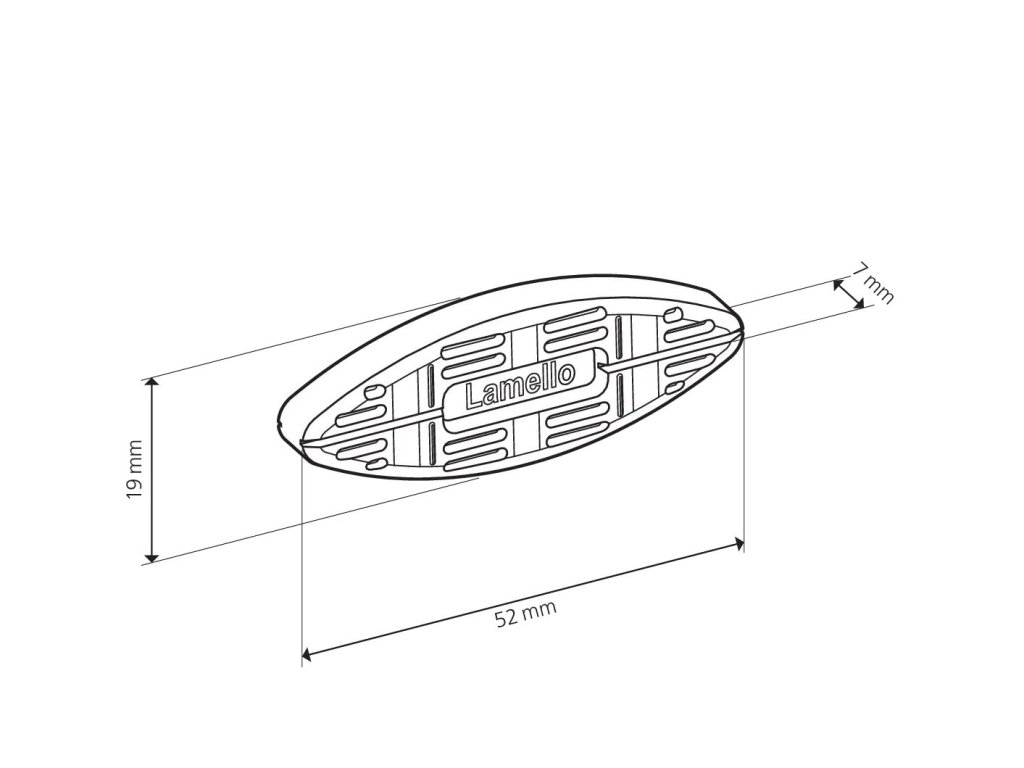

  • Dimensions: 52 × 19 × 7 mm
  • Bisco P-10:
    • Designed for butt joints from 12 mm material thickness.
    • Suitable for corner joints from 18 mm material thickness.
Lamello | Bisco P-10 vyrovnávací lamela

Scope of delivery: 1 x piece

Lamello | Bisco P-10 vyrovnávací lamela

Connection options

positioning of shelves opposite each other and minimum material dimensions
Lamello | Bisco P-10 vyrovnávací lamela

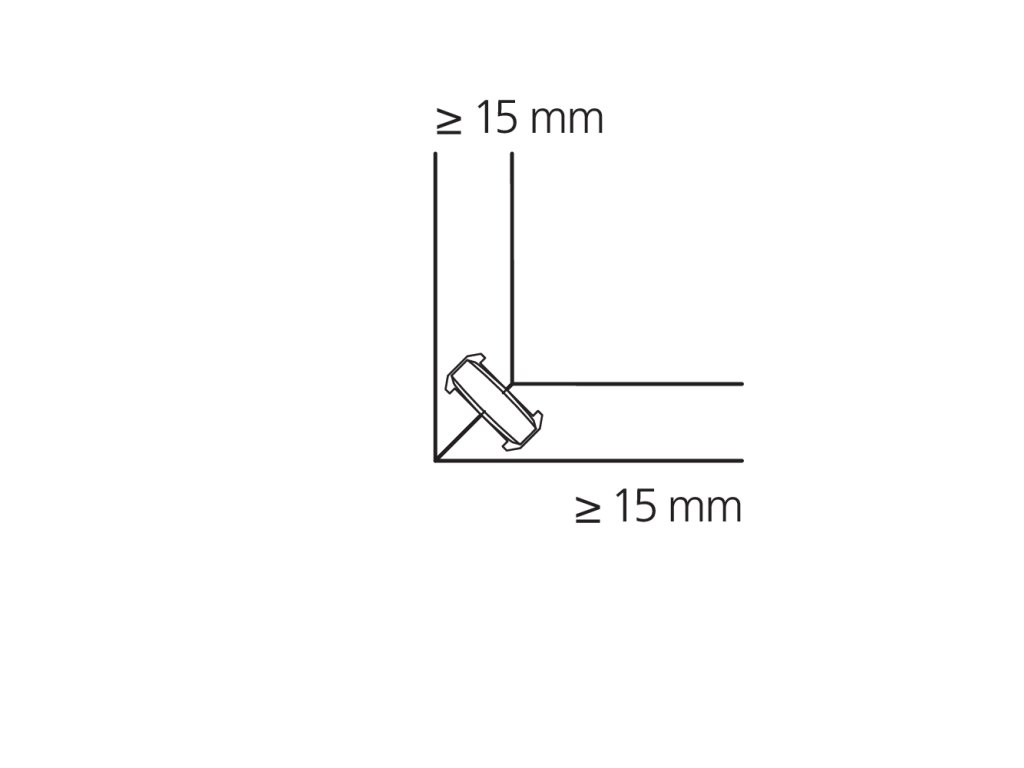

Connection options

mitre joint and minimum material dimensions
Lamello | Bisco P-10 vyrovnávací lamela

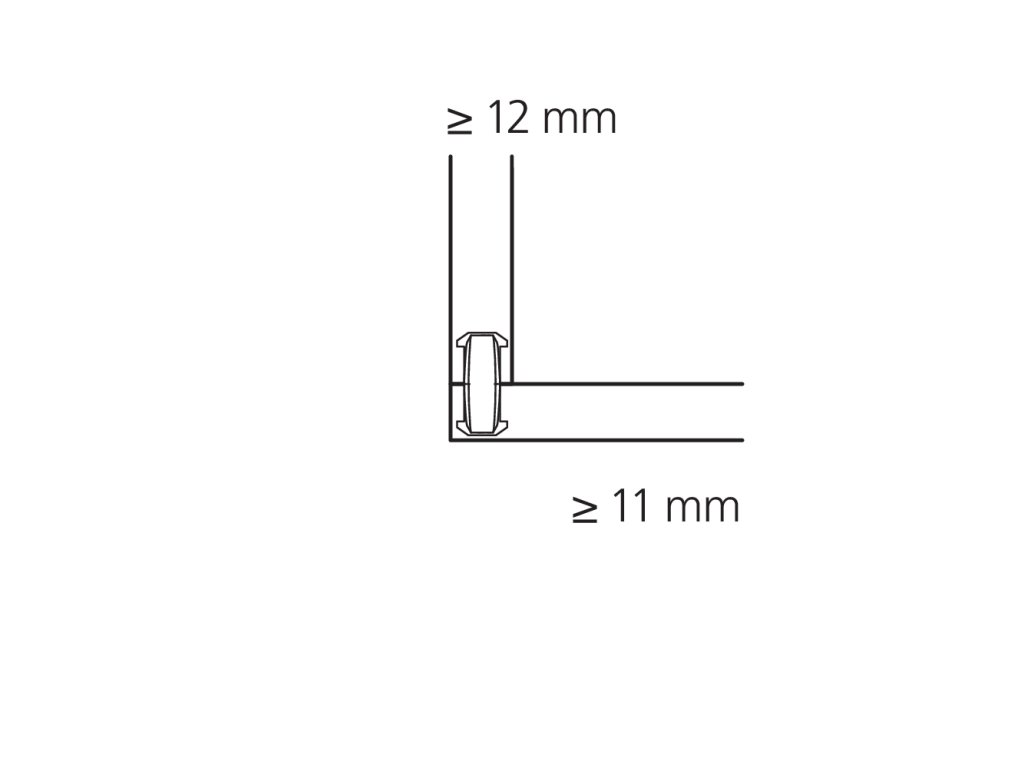

Connection options

butt joint and minimum material dimensions

Vyrovnávací lamela, doplněk ke spojům Clamex P10 rozměry::52x19x7mm Balení (1ks)

An economical addition to P-couplings for precise alignment.

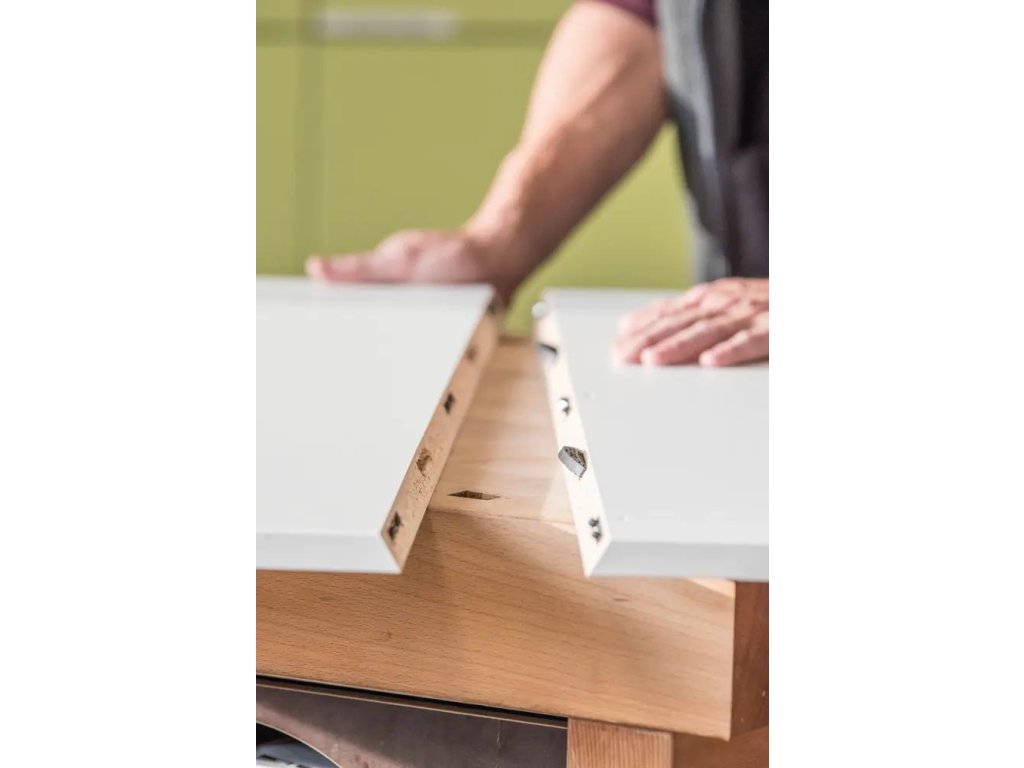

Bisco P is an alignment element, used in combination with Clamex P or Tenso P couplings. Its minimalist design and the absence of control holes make it ideal where the frequent use of locking couplings (like Clamex P) could detract from the aesthetics of the furniture. For example, with a joint spacing of approx. 40 cm, locking joints would create a series of holes in the visible surface, which would be distracting.

Bisco P replaces some locking joints as a cost-effective alternative because it is significantly cheaper. Unlike the Clamex P, it does not require more complex construction or material-intensive workmanship, while still providing precise alignment of parts.

It serves as a pre-assembly tool When using the Tenso P, which produces a strong clamping force, disassembly can be difficult. Bisco P allows you to make test connections and verify processing accuracy before applying adhesive. Once checked, Bisco P can be easily removed, replaced with Tenso P and the assembly completed with bonding.

Additional parameters

Category: Lamello - fasteners P - system
Weight: 0.006 kg
EAN: 7640129666768
