Lamello - Tenso P-10 connecting piece with clip

Code: K058
25 Kč –4 % 24 Kč
In stock (>10 pcs)
Delivery to:
22/04/2025
Delivery offer

Tenso P-10 is a unique bonding aid that eliminates the need for clamps or pullers. Tenso P-10, developed for angle (45°) from 15mm material thickness or butt joints (90°) from 12mm material thickness.

Detailed information

Product detailed description

Tool-free fixing at any angle!

Tenso P-10 is a self-locking fastening system for thin materials that pushes the boundaries of bonding.


Lamello | Tenso P-10 spojovací systém pro tenké materiály s clipem

Simply click in.

Use this fastening system to glue joints at any angle without the need for clamps or pullers.

Lamello Tenso P-10 - The revolution in bonding

One half of the connector is fitted with powerful tension springs that ensure a firm connection and exert high pressure on the parts to be joined.

The result is perfect bonding without the need for clamps, tapes or presses. Tenso P-10 always joins parts at the correct angle, perpendicular to the cutting surfaces, ensuring precise alignment. Thanks to the innovative design, the fastener is anchored directly into the P-system groove in seconds, which significantly speeds up the entire assembly process.

Important production notes

This type of joint can only be produced by Lamello Zeta P2 or on CNC machines. The groove cannot be produced with a standard laminating machine.

Technical Specifications:

  • Material: Fiberglass reinforced plastic

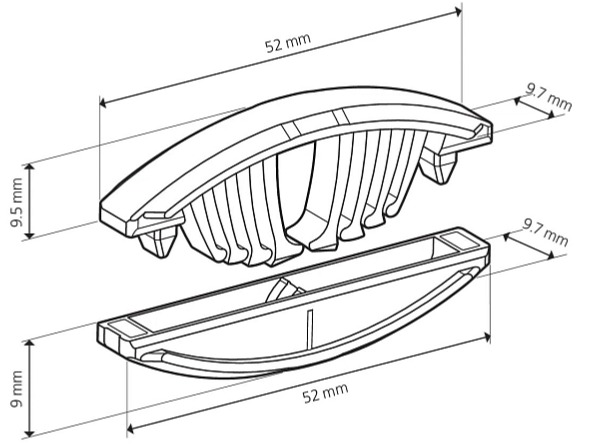

  • Dimensions: 52 × 19 × 9.7 mm
  • Mounting tolerance: Longitudinally ± 1 mm, radially ± 1 mm
  • Use: Suitable for materials with a minimum thickness of 13 mm
  • Tensile strength: Depends on the adhesive used and the type of material


Lamello | Tenso P-10 spojovací systém pro tenké materiály s clipem

Scope of delivery: 1 x pair including tensioning clip

Lamello | Tenso P-10 spojovací systém pro tenké materiály s clipem

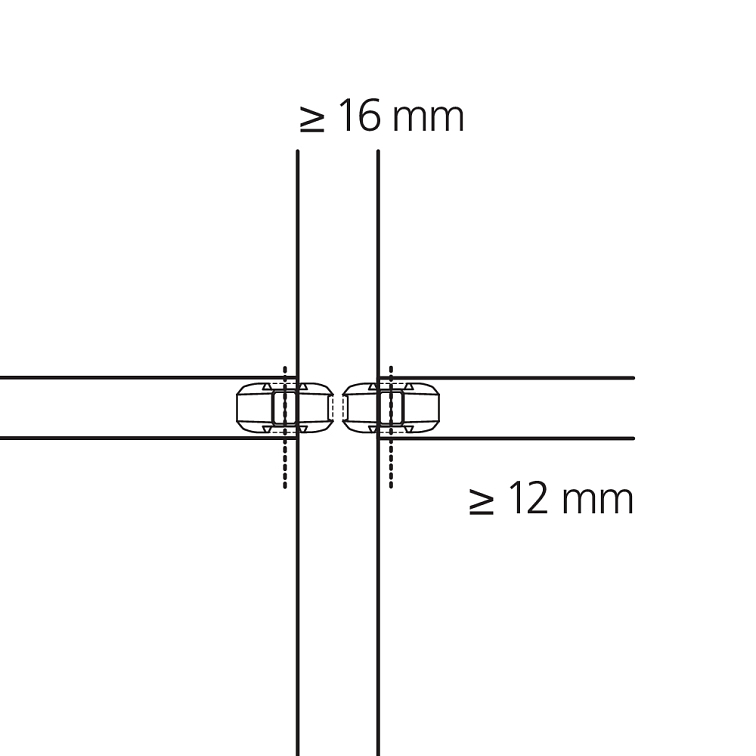

Connection options

positioning of shelves opposite each other and minimum material dimensions
Lamello | Tenso P-10 spojovací systém pro tenké materiály s clipem

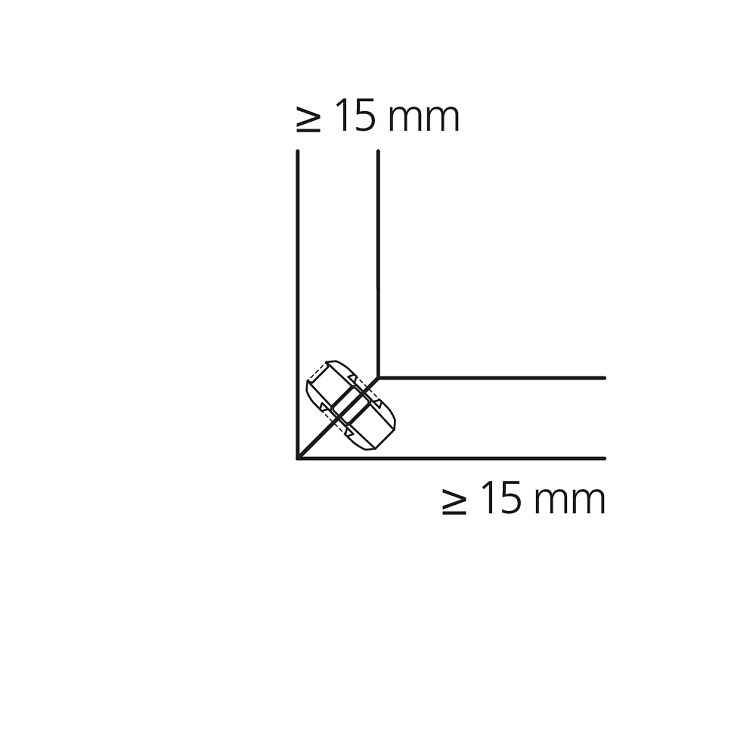

Connection options

mitre joint and minimum material dimensions
Lamello | Tenso P-10 spojovací systém pro tenké materiály s clipem

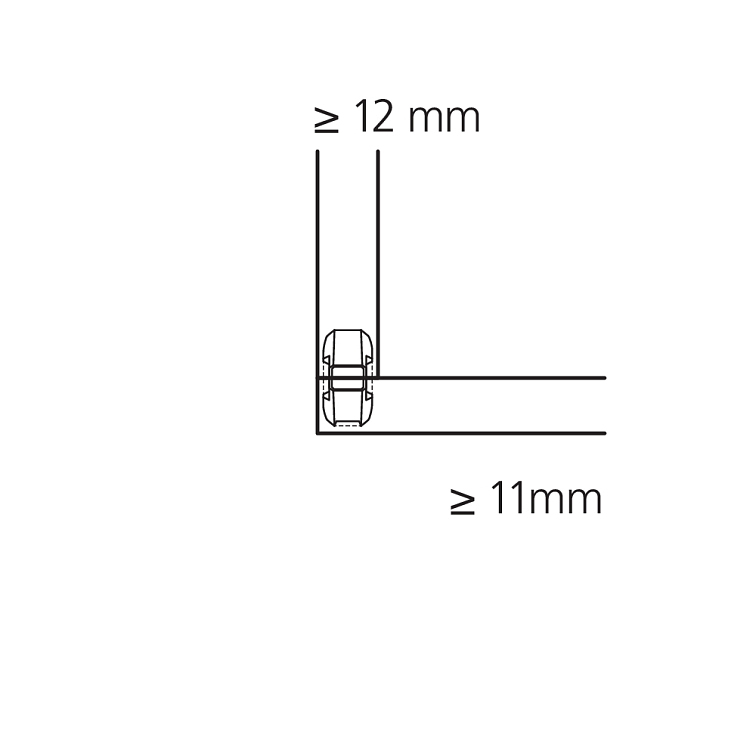

Connection options

butt joint and minimum material dimensions

Whatever you can think of - we'll put it together.

  • Adhesive: Quickly join without using clamps or waiting for glue to dry
  • Invisible: Joints remain completely hidden, ideal for projects with high aesthetic demands
  • Universal: Allows joints at angles from 22.5° to 180°.
  • Pre-loaded clip: Allows for easier handling when assembling mitre joints or multiple elements simultaneously.
  • Stockable: Parts with pre-installed connectors can be easily stored and transported
  • High clamping force: Ensures precise alignment and tight connection of parts
Lamello | Tenso P-10 spojovací systém pro tenké materiály s clipem

Why choose the Tenso P-10?

Assembly is a breeze with the Tenso P-10. This system allows you to create and implement new concepts for production, transport and assembly.

You can transport your furniture disassembled and assemble it on site in minutes. You save space, reduce the risk of damage during transport and moving, and streamline logistics.

The simplicity of the system means that even untrained personnel can assemble the furniture quickly and easily.

Additional parameters

Category: Lamello - fasteners P - system
Weight: 0.006 kg
EAN: 7640149937060

Lamello Tenso P - 10

Video Tenso P 10
