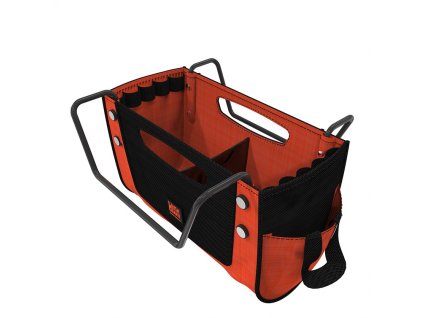

A ballistic nylon and steel tool bag that attaches to your ladder and keeps your tools close at hand. It can be placed between the ladder rungs and stored together with the ladder.
Wall Mount Ladder Rack™
- If your ladder is not stored properly, it can become dangerous. An unsecured ladder can cause personal injury, ladder damage or other property damage by falling, tipping or sliding.
- Therefore, make sure that your ladder is stored safely.
- The holder has a load capacity of up to 34 kg.
- Standing on a ladder for long periods of time can be uncomfortable.

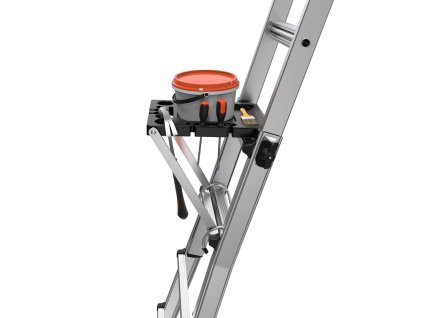

- The work platform is an accessory to the ladder that serves as a comfortable standing platform or tool holder.
- Enjoy the comfort of standing on a sturdy platform rather than a ladder rung.
- The work platform is a versatile accessory that is compatible with many of our multi-purpose ladders.
- Tool and equipment organiser, accessories for articulated extension ladders
Toughbuilt - special SolarSet for solar system installation.
We've got something to make you happy! Introducing the Toughbuilt solar system installation kit! This basic complete package is for anyone working on the installation of solar systems.

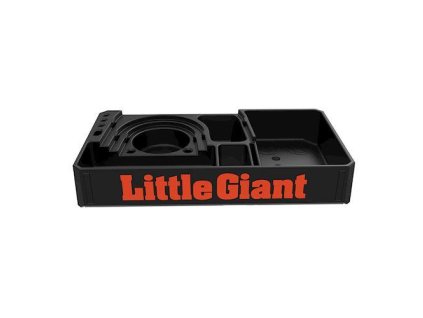

Additional tool organiser TOOL TRAY which is compatible with most multi-purpose articulating ladders.
Product detailed description
Conquest PRO 2.0 All-Terrain
aluminium extendable articulated ladder with extendable levelling legs that adapt to uneven ground and provide greater stability.
The ladder is fitted with outriggers that can rest around window frames or extend the ladder. They also serve as safety handrails when exiting the ladder. Configurable up to 7 positions.
This ladder meets or exceeds all EN 131 standards with a 150 kg capacity in all configurations.
90° ladder
Scaffolding
The ladder can be divided into two separate support goats and can be used to build a fixed scaffold with the help of additional accessories.Support ladder
You can safely lean the ladder so that you can get as close to your work as possible.Extendable ladder
The ladder can be extended into a long ladder to help you reach high work areas.Stair ladder
The freestanding ladder in configuration A (rungs) can be freely adjusted in length on one side so that it can be safely placed on the staircase.stepladder
The stand-alone ladder in the A configuration, or ladder rungs, will help you reach your work without having to lean on the ladder.Ladder for uneven terrain
The ladder has levelling legs to help you level the ladder even on uneven ground and keep the ladder stable and safe.Quad-Lock® unlocking lock
Four-point lock with palm control.Supports with swivel feet
The base feet can be turned and driven into soft ground.Jibs
that can lean around window frames or extend the ladder. They also serve as safety handrails when exiting the ladder.Wide base: for a sense of security with a solid base to increase stability of the lateral centre of gravity.
Extendable supports: adapt easily to uneven terrain and increase stability and safety.
Booms: for support around window frames and extensions for safe exit and entry.
Rock Lock®: cast aluminium locks for easy adjustment of ladder length.
Quad-Lock™ locks: the opening lock is durable and easy to use.
Tip & Glide™ wheels: fold the ladder onto the wheels and take it wherever you need to go.
Technical specifications:
Model 17 | Model 22 | Model 26 | |
Length | 274-457 cm | 335-579 cm | 396-701 cm |
Total length with extensions | 523 cm | 645 cm | 767 cm |
Max standing height Max (racks) | 147 cm | 203 cm | 262 cm |
Maximum standing height Min (racks) | 60 cm | 89 cm | 117 cm |
Max standing height Max (extendable) | 353 cm | 472 cm | 589 cm |
Maximum standing height Min (extendable) | 175 cm | 239 cm | 297 cm |
Maximum range (baton) | 347 cm | 403 cm | 462 cm |
Maximum range (extendable) | 553 cm | 672 cm | 789 cm |
Maximum working height (extendable) | 455 cm | 577 cm | 699 cm |
Minimum working height (extendable) | 272 cm | 333 cm | 394 cm |
Net internal width | 32 cm | 32 cm | 32 cm |
Depth of internal partition | 4 cm | 4 cm | 4 cm |
Depth of the outer partition | 3 cm | 3 cm | 3 cm |
Depth of double partition | 8 cm | 8 cm | 8 cm |
Upper width | 46 cm | 46 cm | 46 cm |
Base depth min (rack) | 103 cm | 121 cm | 140 cm |
Base depth max (rack) | 158 cm | 194 cm | 231 cm |
Storage height | 140 cm | 170 cm | 201 cm |
Storage width with base | 69 cm | 76 cm | 84 cm |
Storage depth | 23 cm | 23 cm | 23 cm |
Weight | 19 kg | 24 kg | 28,1 kg |
Explanation of terms
Length
Total ladder size
Total length with extensions
Total length of ladder in maximum extension.
(Maximum) standing height
This is the highest position of the standing ladder where it is safe to stand.
Maximum range
This is the highest position of the standing ladder plus 2 m (170 cm person with a vertical reach of 30 cm).
Net internal width
The distance between the inner flanges of the side rails of the ladder.
Width of the partition
Width of one rung.
Depth of partition
Depth of one partition. (Rounded to centimetres).
Depth of double partition
Depth of two overlapping partitions. (Rounded to centimetres).
Upper width
Width at the top of the ladder.
Base width
Total width across ladder foot. (Rounded to the nearest centimetre).
Depth of base
Total depth across the foot of the ladder when extended (rounded to the nearest centimetre).
Maximum base distance
The maximum vertical distance from the highest rung or step that the climber is recommended to use to the horizontal plane of the ladder base support, with the ladder in the preferred climbing position.
Minimum base distance
The minimum vertical distance from the highest rung or step that a climber is recommended to use to the horizontal plane of the ladder base support, with the ladder in the preferred climbing position.
Maximum working height
The working height is the length of the non-self-supporting portable ladder measured along the rails from the ladder's base support point to the point of attachment at the top.
Minimum working height
The working height is the length of the non-self-supporting portable ladder measured along the rails from the ladder's base support point to the point of attachment at the top.
Storage height
Measured from the bottom of the footing to the highest point of the ladder with the storage position closed. The extendable legs are positioned vertically. (Rounded to the nearest centimetre).
Storage width with base
Measured across the total width of the widest point of the ladder (rounded up to the nearest centimetre).
Storage depth
Measured across the deepest depth from front to back with the ladder closed in the stowed position, including any legs or wheels (Rounded up to the nearest centimetre).
