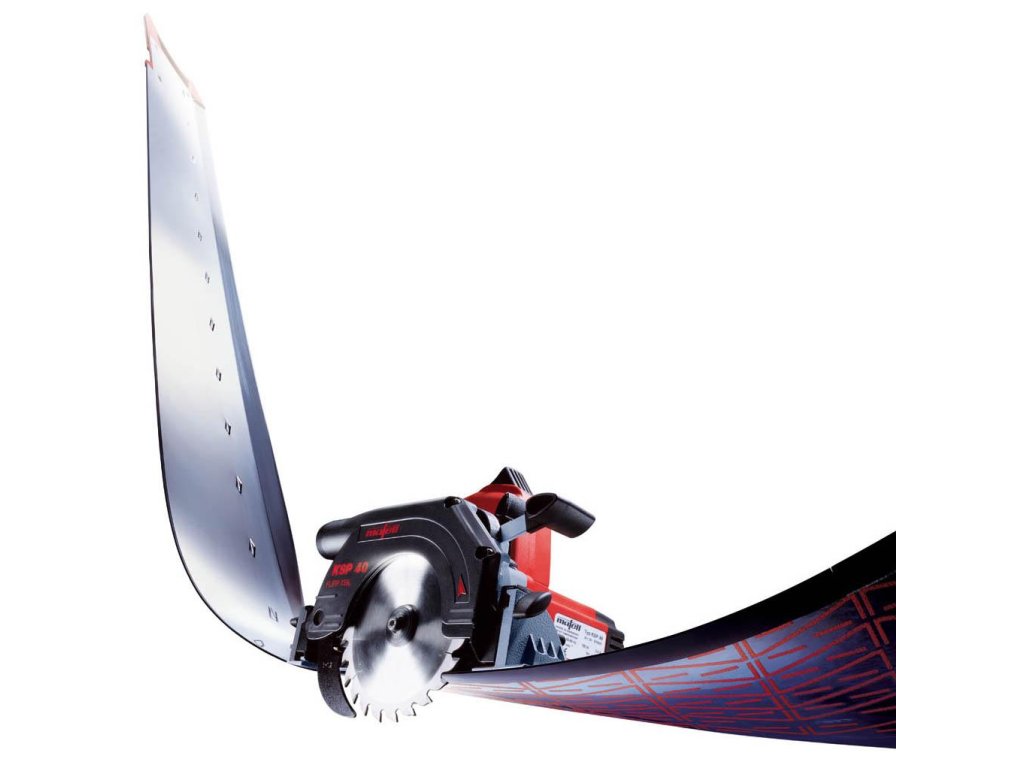

Mafell - circular saw KSP 40 Flexistem

Product detailed description

Description:

• Four saws in one - hand saw, bar-guided saw with movable guard, plunge saw and expansion joint saw.
• The tilting point is located on the underside of the bar. Advantage: only one cutting indicator is needed for all tilting angles, with or without bar. The tear-out protection is located in the rail and is easy to replace.
• Opening of the moving cover by means of a lever - a novelty in this class of machines.

Field of application:

• Longitudinal and transverse cuts
• Oblique cuts up to 45°
• Immersion cuts
• Suitable for: board materials, doors, slats, scarfing, interior and renovation

Technical data:

• Cutting depth 0 - 40 mm
• Cutting depth at 45 degrees: 0 - 29 mm
• Cutting range: 0 - 45 deg.
• Idle speed: 8 400 rpm
• Rated power: 900 W
• Weight: 2.3 kg

Scope of delivery:

• 1 saw blade HM 120x1,2 /1,8x20 mm, Z24 WZ
• 1 flexi guide rail FX 140 1,4 m
• 1 parallel stop
• 2 clamping clamp
• 1 suction attachment
