Mafell | PROMOTION - plunge saw MT 55 with guide bar

Code: 1P0007
21 145 Kč –28 %
mt55cc zoomZH26qroTxrJpN
21 145 Kč –28 % 15 095 Kč
In stock
Delivery to:
22/11/2024
Delivery offer

Possibility to rent a test machine!!

Action + rail F 160

The only hand-held circular saw with pre-cutting function with the same cutting quality as stationary machines, including 160cm guide rail

Detailed information

Product detailed description

The idea of developing a new submersible saw is nothing new. But what is new is to develop all the components of the machine to create a unique precision product.

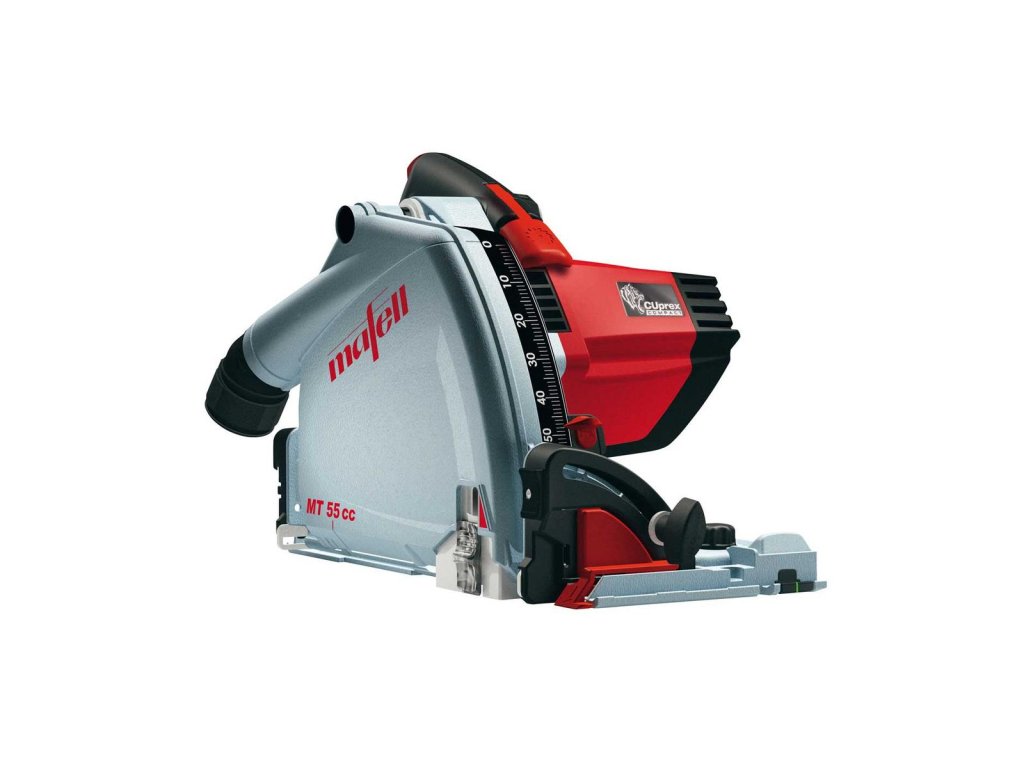

The MT 55 cc submersible saw with Aerofi x F-AF1 suction clamping system allows perfect cuts with simple operation.
The pre-cut is activated in one movement. In this way, the MT 55 cc cuts as cleanly as stationary machines, even with worn-out bar protection.
The MT 55 cc is equipped with gradually adjustable speeds for a variety of materials and saw blades.
Cutting up to 57 mm (without bar) is now possible. The innovative tilting system knows almost no limits when making angled cuts.

Strengths:

  • For precise depth adjustment, e.g. on ground wheels.
  • Enclosed housing for the saw blade and retractable cover at the cutting point, ensuring extremely low dust.
  • The MT 55 cc is equipped with the new CUprex-Compact engine, which allows significantly higher revs with huge power reserves.

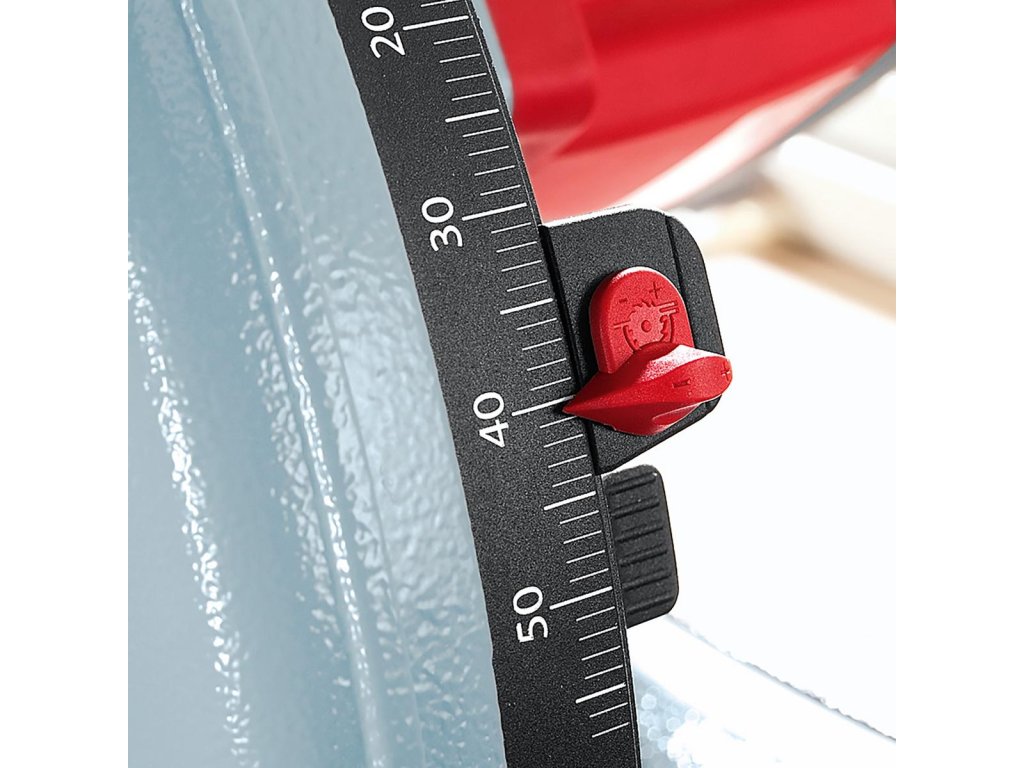

  • The depth of cut can be adjusted to the millimetre. With or without the bar - a simple turn of the pointer shows the corresponding depth of cut.
  • A semicircular turn of just one lever ensures angle adjustment at the front and rear of the saw when cutting at an angle.

Field of application:
  • Transverse and longitudinal sections.
  • Cuts at an angle of -1 to + 48°.
  • Plunge cuts.
  • Materials e.g.: solid wood, cement particle board, trespa, OSB, plasterboards, plastics, facade boards, board materials.

Product Features:

  • With pre-cutting, high speed and precise fixation.
  • Ensures greater accuracy.

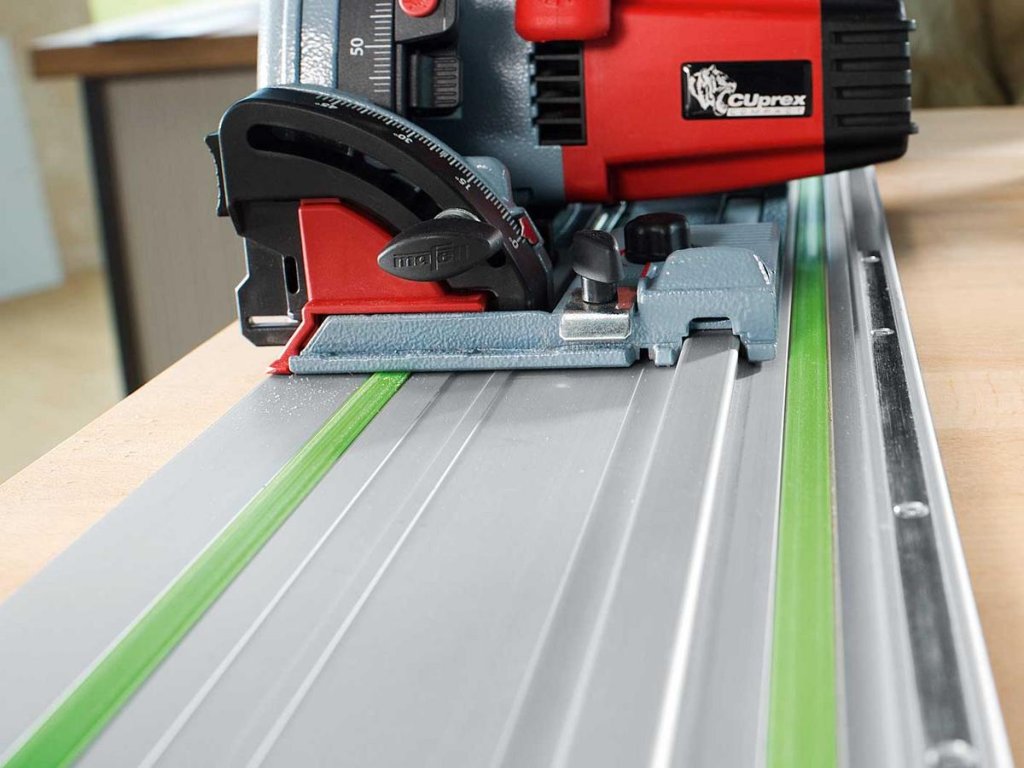

  • Compatible with other guide rail systems.

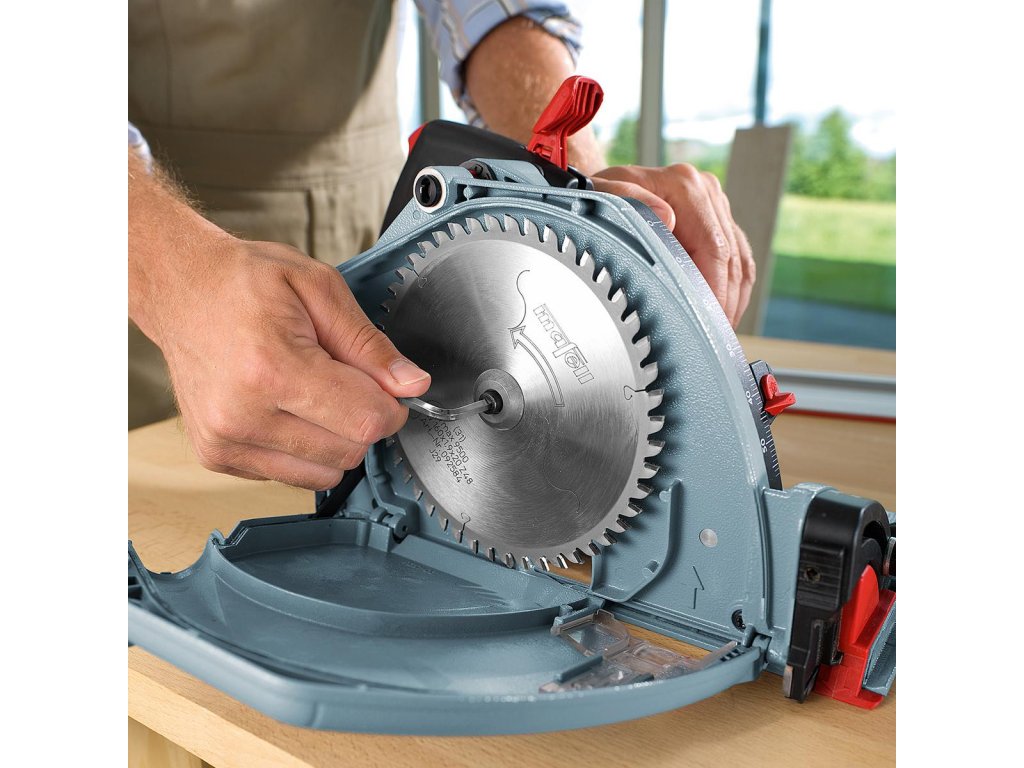

  • With the world's fastest and most innovative disc change system.
  • More power thanks to the powerful CUprex-Compact engine.
Technical data:
  • Rated power: 1400 W,
  • Universal motor: 230 V / 50 Hz,
  • Idle speed: 3600 - 6250 rpm,
  • Cutting depth: 0 - 57 mm,
  • Cutting depth at 45°: 0 - 40.5 mm,
  • Cutting range: -1 to + 48°,
  • Weight: 4.7 kg.
Scope of delivery:
  • Guide rail - free
  • 1 saw blade HM 162 x 1,2/1,8 x 20 mm, Z 48, WZ for universal use of board materials (092584),
  • 1 hexagon wrench, 5 mm (093034)

Additional parameters

Category: Submersible saws
Warranty: 3 years
Weight: 4.7 kg
Saw blade diameter: 160 mm
Power input: 1400W

MT 55 cc
