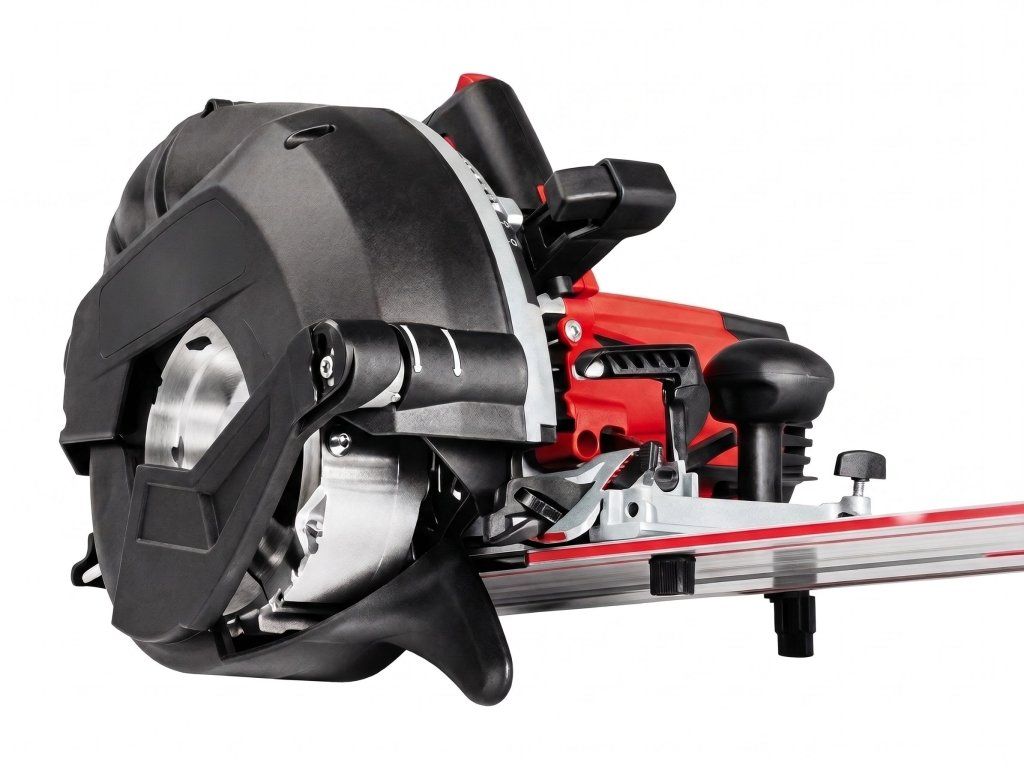

Mafell - Groove milling machine NFU 50

Code: 918701
66 217 Kč
In stock at the supplier, we ship within 72 hours.
Delivery to:
27/11/2024
Delivery offer

The NFU 50 grooving machine can be used flexibly and is versatile for various types of milling in wooden structures. Extensive special accessories expand the possibilities of use in everyday work.

Detailed information

Product detailed description

Description:

  • The concentrated force and high pulling power of the NFU 50 allows milling widths up to 60 mm and milling depths up to 50 mm
  • The NFU 50 can also be used as a saddle milling machine.
  • With the special accessory of the setting groove cutter, you can mill grooves efficiently and quickly. For example for supply lines

Use:

  • With the adjustable groove cutter, which is a special accessory, grooves from 22 -40 mm wide can be produced.
  • PINS - Individual pins can be effortlessly made using the NFU50 and drip rail.
  • The design of the NFU 50 impresses thanks to its extremely robust parts and the high quality of precision-manufactured components such as magnesium alloy castings or impact-resistant fibreglass plastic parts. In addition, sophisticated detailed solutions help you in difficult workloads
  • Longitudinal and transverse grooves
  • Adjustment plates (guiding devices)
  • Fillings in the framework or embedded ceilings
  • Sloping grooves up to 45°
  • Cones
  • The use of material, e.g. For example: solid wood, panel materials

Technical data:

  • rated voltage 230 V.
    Nominal income 2300 W
    Milling depth without rail at 0° 0 - 50 mm
    Milling depth with rail at 0° 0 - 44 mm
    Rotating range 0 - 45 °
    Rated idling speed 5900 rpm
    Weight with rail 9,4 kg
    Dimensions (W x D x H) with guiding device D 370 x 810 x 280 mm
    Milling length with guide device L 370 mm

Scope of delivery:

  • Milling head Ø 163 x 60 mm 091901
  • 1 Position indicator NFU-PA 207467
  • 1 Side stop SA 625 207183
  • 1 Parallel stop 207468
  • 1 Guiding device L 205310
  • 2 Repeat setting arrival 206026
  • 1 Screwdriver SW 6 207496
  • 1 Torx screwdriver T 15 093274
  • 1 Supply cable 10 m long

Additional parameters

Category: Mafell - grooving milling machine
Warranty: 3 years
Weight: 9.4 kg
Power input: 2300W
