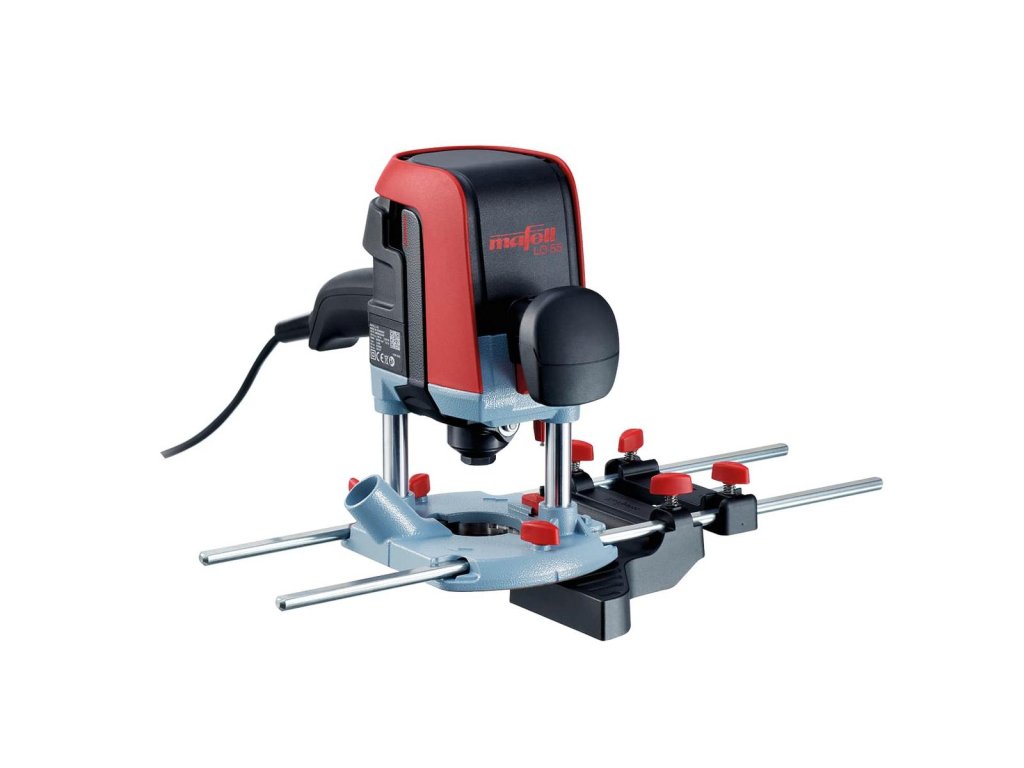

Mafell | Top milling machine LO 55

Code: 91A901
New
Brand: Mafell
19 632 Kč
In stock (2 pcs)
Delivery to:
11/11/2024
Delivery offer

Want to experience versatility in a whole new dimension? Then get acquainted with LO 55. Its exemplary handling makes it ideal for all work in the workshop or on the assembly line. See the many possible uses and unleash your creativity.

Detailed information

Product detailed description

Description:

  • With our Ergo-Balance concept, you as the user are the focus. For example, the LO 55 is optimally balanced. There is no vibration or vibration transmission.
  • Revolver stop with height adjustment for repetitive working depths.
  • In conjunction with the LO-FA top adapter and the F-LR guide rail, you can drill rows of holes safely and accurately. Simply deactivate the Permafix clamping for a quick workflow.

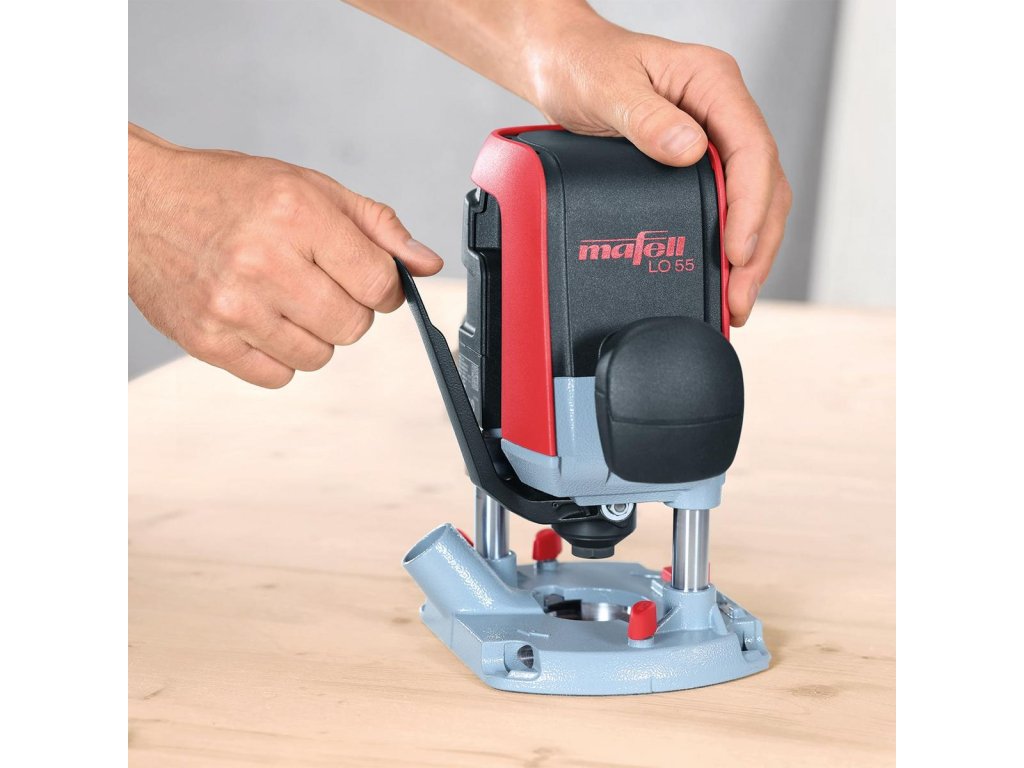

  • It couldn't be easier or faster: To replace the cutter, simply loosen the clamping lever, replace the cutter and fold the lever back.
  • The intake is integrated into the motherboard. This means that the resulting chips are optimally absorbed.
  • The milling depth is permanently locked. Press the Permafix button to release the lock and easily adjust the milling depth.
  • Widely arranged LED lights ensure optimum illumination of the milling area in all lighting conditions.

Use:

  • Groove milling with parallel stop
  • Milling
  • Processing of chamfers
  • Rows of holes
  • False milling
  • The use of materials e.g. For example: solid wood, board materials

Technical data:

Milling depth: 0-55 mm
Kleština Ø: 8 mm

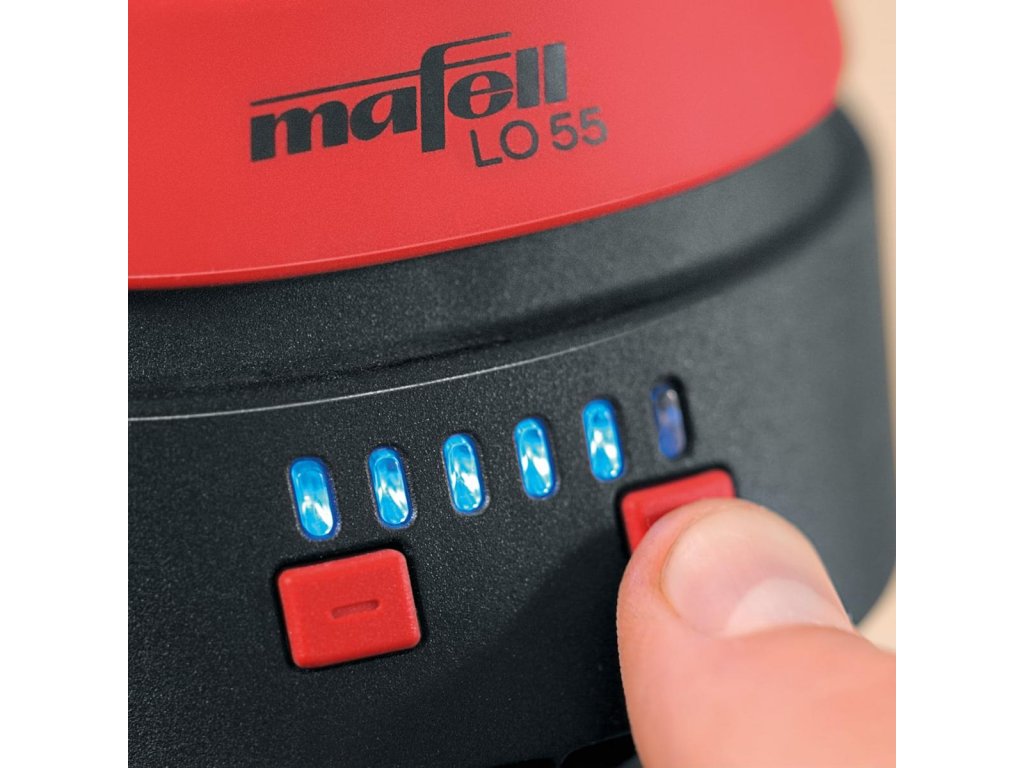

Rated idling speed 10000 - 24000 1/min
Power input 1100 watts
Suction connection Ø 29 mm
Weight 3.1 kg
Universal motor 230V/50Hz

Scope of delivery:

  • 1 parallel stop with fine adjustment
  • 1 chip deflector

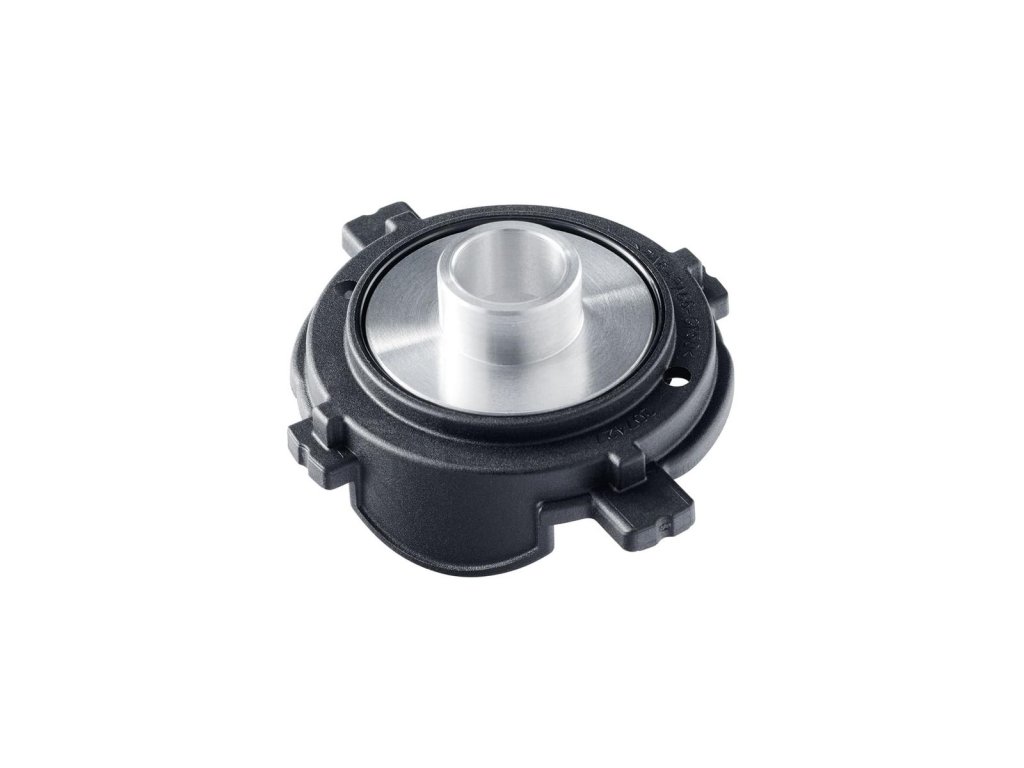

  • 1 copy ring 20 mm
  • 1 copy ring 30 mm
  • 1 copy ring 40 mm
  • 1 copy ring adapter
  • 1 suction adapter
  • 1 suction adapter for F-rail
  • 1 connecting cable 4 m
  • Transport and storage box MAX3

Additional parameters

Category: Top milling machines for wood
Warranty: 2 years
Weight: 3.1 kg
Power input: 1100 W
Clamping pliers: 8 mm
