Mafell- miter saw KSS 40 18M bl -PURE

Product detailed description

Description:

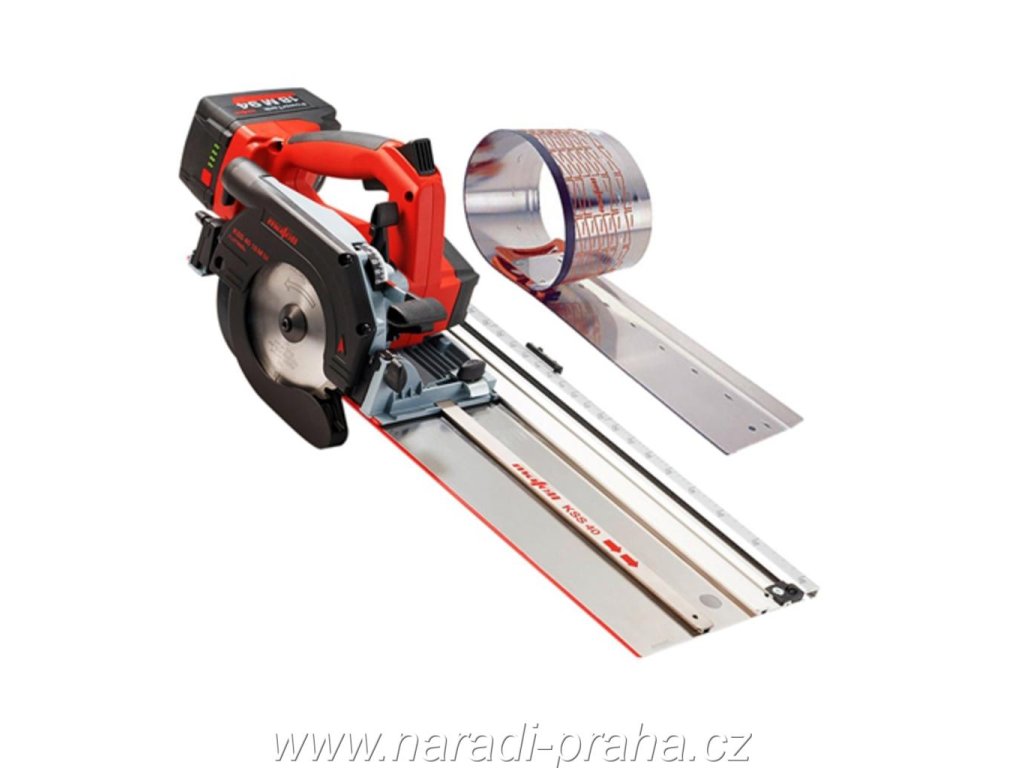

• Again, a unique rail is used on which the saw is not only guided but also connected to it.
• Of course, the cutting angle can be adjusted with only one hand in the range of + 45°/-60°
• The saw can also be tilted along the vertical axis in the range of 0 - 45°
• The saw returns itself to the starting position on the bar
• Cutting length 300mm
• Can also be used without guide rail as a stand-alone circular saw
• The saw can also be plunged anywhere in the material (use as a plunge saw)

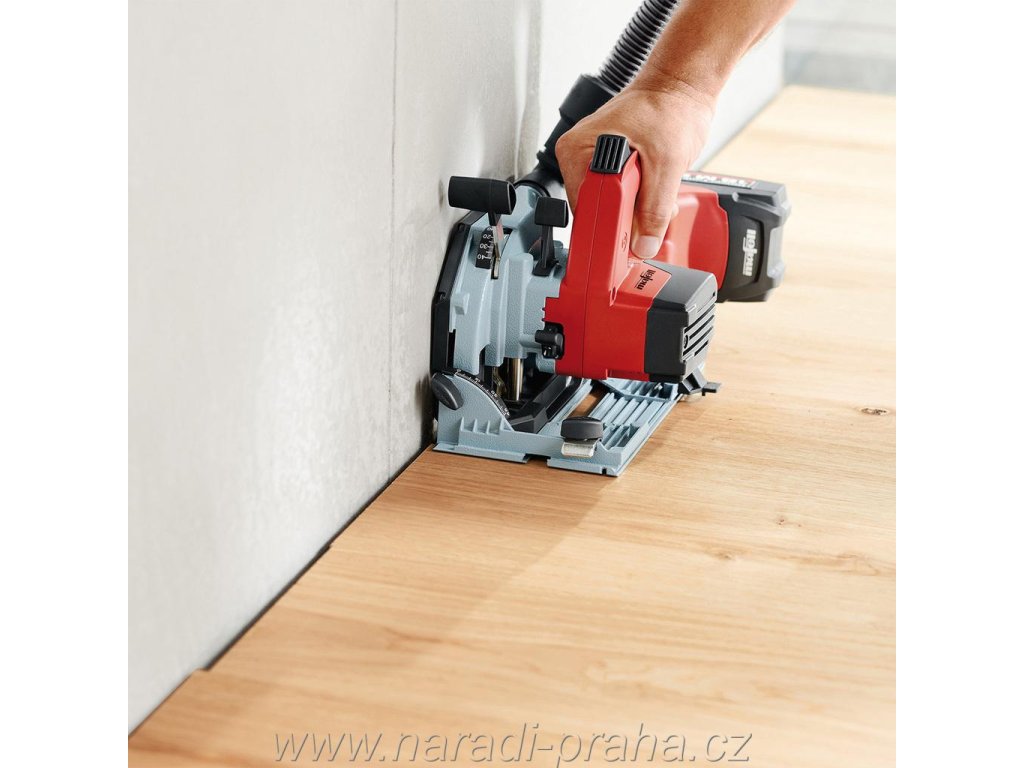

• Thanks to the narrow housing design, the KSS 40 18M bl is suitable for cutting expansion grooves in flooring.

Field of application:

• Drip cuts with guide rail
• Longitudinal and transverse cuts
• Plunge cuts, cut-outs and panel cutting

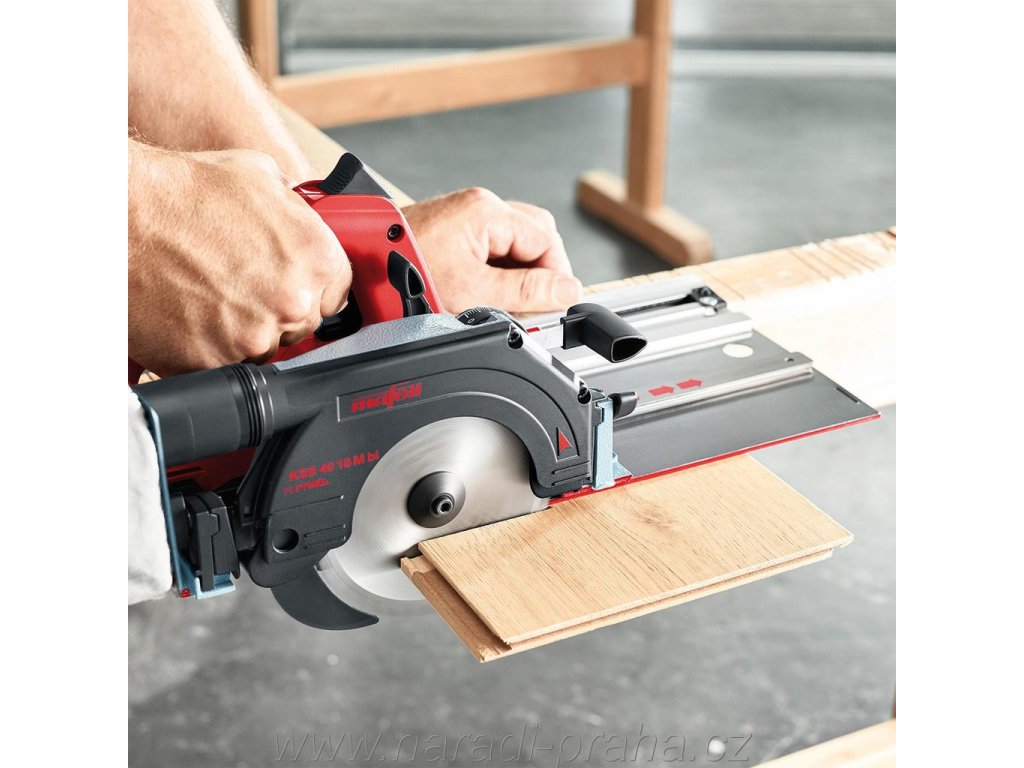

• Materials such as: board materials, doors, worktops, parquet and laminate

Product Features:

• Extremely compact and easy to use system
• Unique rail system

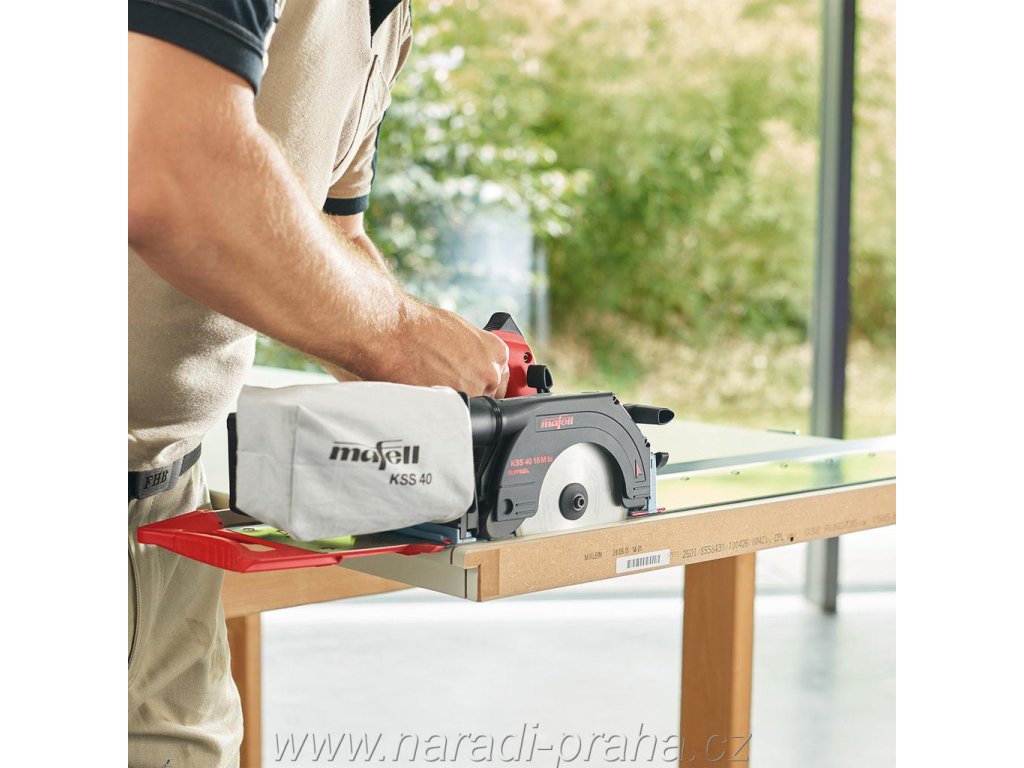

• Ideal for cutting boards and panels
• Quick and easy angled cuts

Technical data:

• Cutting depth with bar at 90°: 0 - 40 mm,
• Cutting depth without 90° bar: 0 - 42 mm,
• Cutting depth with bar at 45°: 0 - 27 mm,
• Tilting range: 0 - 45°, Cross cuts - angle: + 45°/-60°,
• Cutting length 300mm,
• Battery: 18 V 94 Wh, Li-Ion,
• Idle speed: 6700 rpm,
• Weight with drip rail (including Akku): 3,65 kg,
• Weight without drip rail ( including Akku ): 2,8 kg.

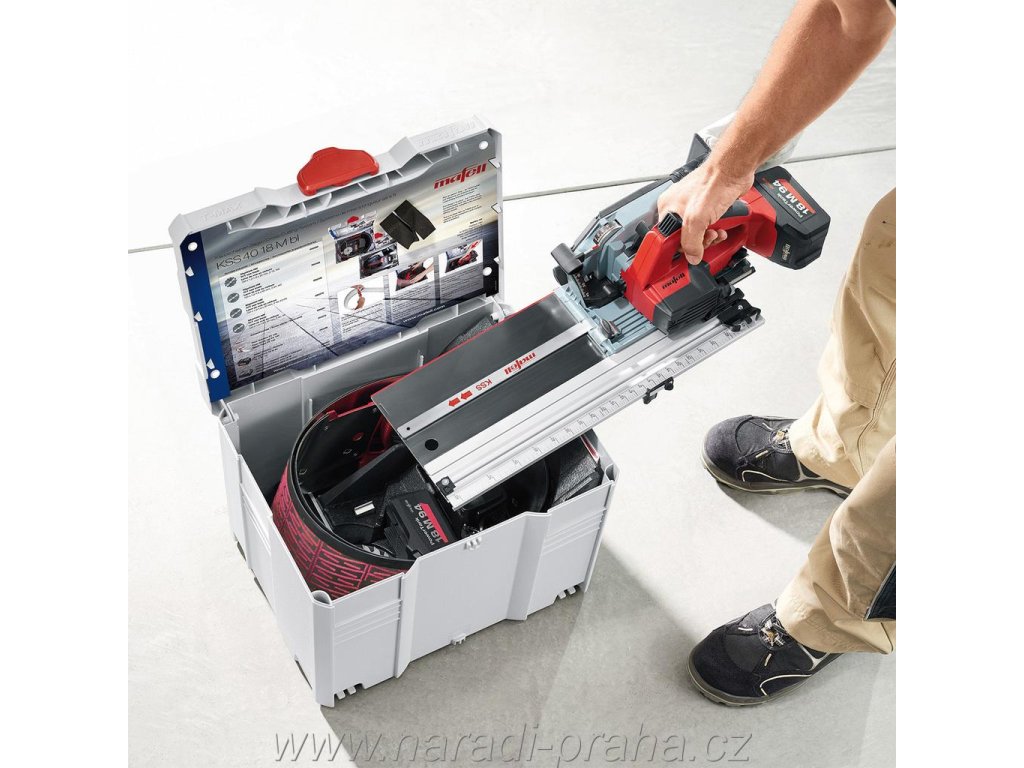

Scope of delivery:
