Mafell - KSS 300 miter saw in MidiMAX

Product detailed description

Description:

The fixed, quick-clamping connection of the handsaw to the KSS 300 guide rail creates a highly functional, one-handed drip system for cuts at different angles. After each cut, the spring returns the saw back to the starting position.
The KSS 300 has enough power in any situation and weighs only 2.4 kg thanks to its magnesium alloy castings. This makes it very easy to handle and lightweight.

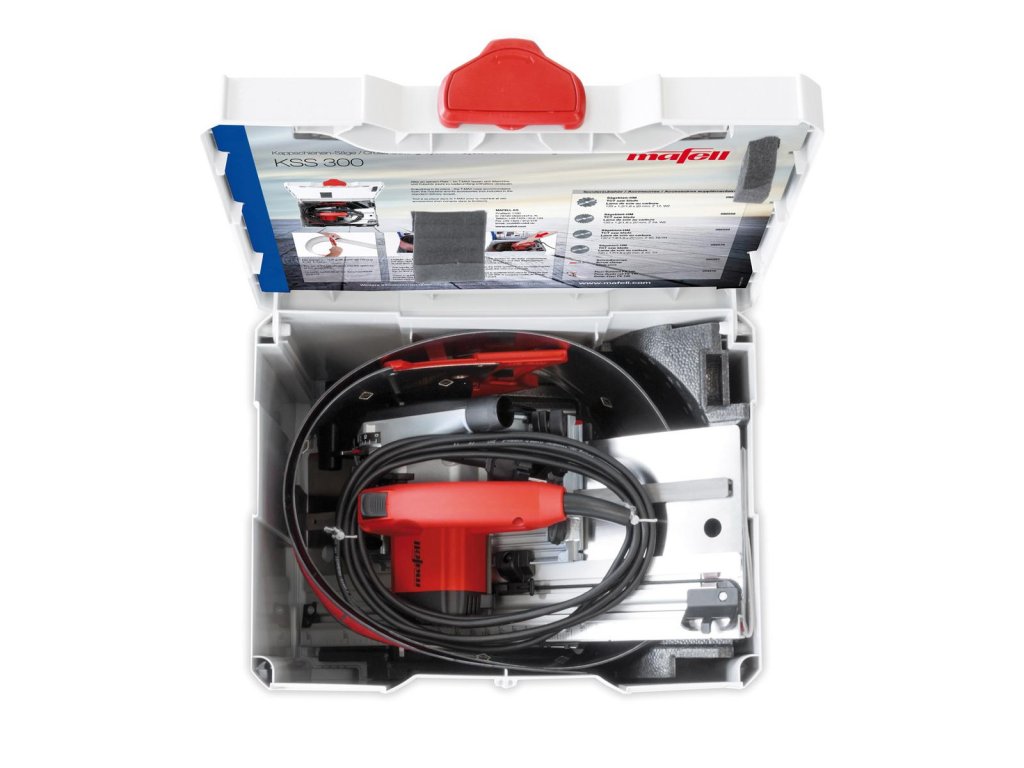

Everything together in the MAFELL-MAX transport case gives a compact system for mitre, rip, cross and plunge cuts, and finally for work without a guide rail.

Strengths:

By simply lifting a button, the handsaw can be disconnected from the guide rail - all Mafell KSS series saws are equipped in this way.
The fixed stop and, thanks to the large scale, the precisely adjustable sliding stop allow precise cutting at an angle.
Flexibible bar.

Field of application:

Drip cuts with guide rail.
Longitudinal and transverse cuts.
Plunge cuts, cut-outs and panel cutting.
Materials such as: board materials, doors, worktops, parquet and laminate.

Product Features:

Extremely compact and easy to use.
Unique rail system.
Ideal for cutting boards and panels.
Quick and easy cuts at an angle.

Technical data:

• Rated power: 900 W
• Universal motor: 230 V / 50 Hz
• Idle speed: 8800 rpm.
• Cutting depth: 0 - 40 mm
• Tilt range: 0 - 45°
• Cutting length: 300 mm
• Cutting depth at 45°: 0 - 27 mm
• Cutting depth without bar: 0 - 42 mm
• Angle cuts: +45° - -60°, Weight 3,2kg.

Scope of delivery:

• 1 machine,
• 1 saw blade HM 120x1,2/1,8x20 mm, Z40 FZ/TR for precise cuts in wood
• 1 parallel stop
• 1 suction attachment
• 1 hexagon wrench 4 mm
• 1 power cable 4 m long
