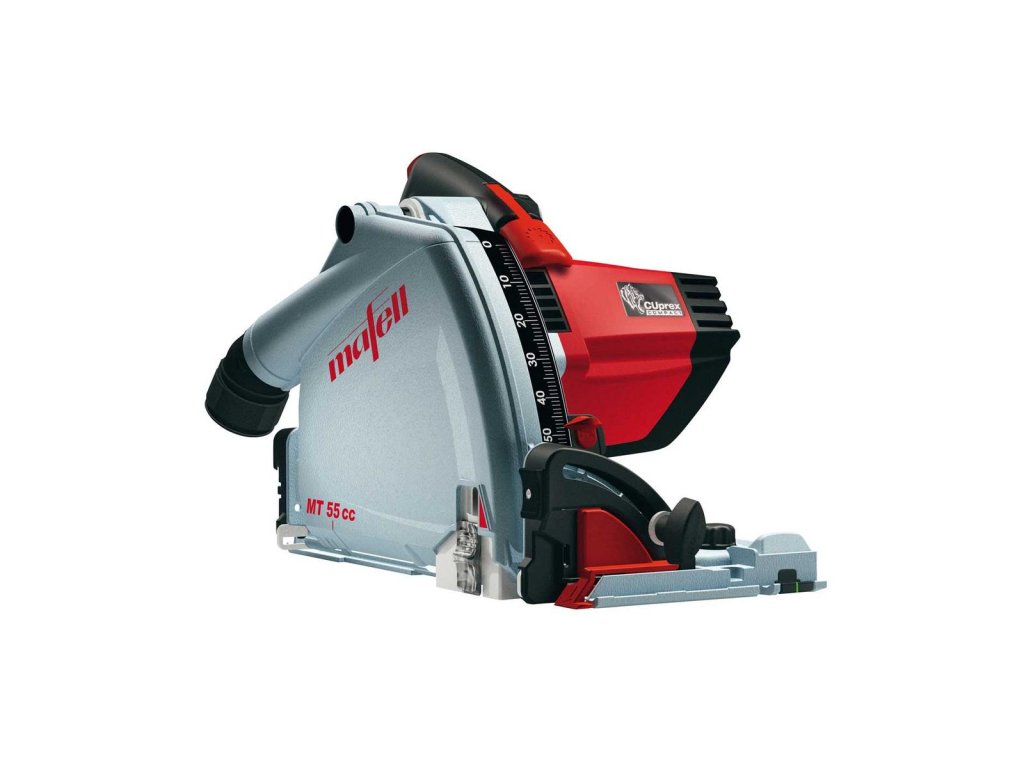

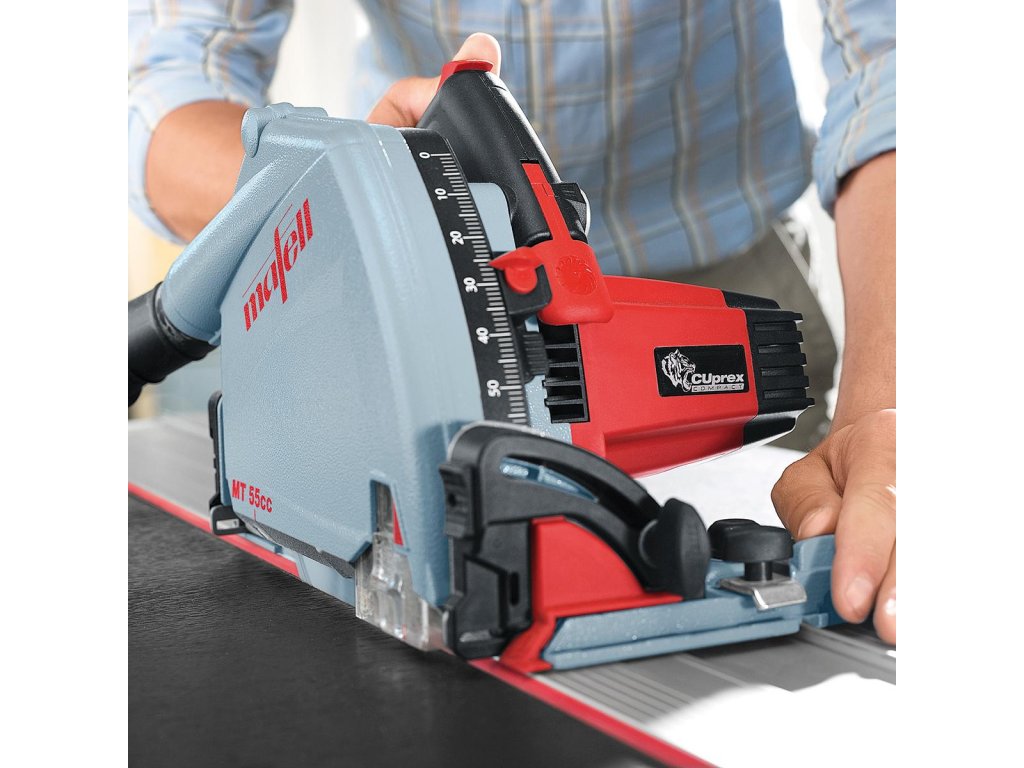

Mafell | Submersible saw MT 55

The idea of developing a new submersible saw is nothing new. But what is new is to develop all the components of the machine to create a unique precision product.
The MT 55 cc submersible saw with Aerofi x F-AF1 suction clamping system allows perfect cuts with simple operation.
The pre-cut is activated in one movement. In this way, the MT 55 cc cuts as cleanly as stationary machines, even with worn-out bar protection.
The MT 55 cc is equipped with gradually adjustable speeds for a variety of materials and saw blades.
Cutting up to 57 mm (without bar) is now possible. The innovative tilting system knows almost no limits when making angled cuts.

Strengths:

• For precise depth adjustment, e.g. on ground wheels.

• Enclosed housing for the saw blade and retractable cover at the cutting point, ensuring extremely low dust.

• The MT 55 cc is equipped with the new CUprex-Compact engine, which allows significantly higher revs with huge power reserves.

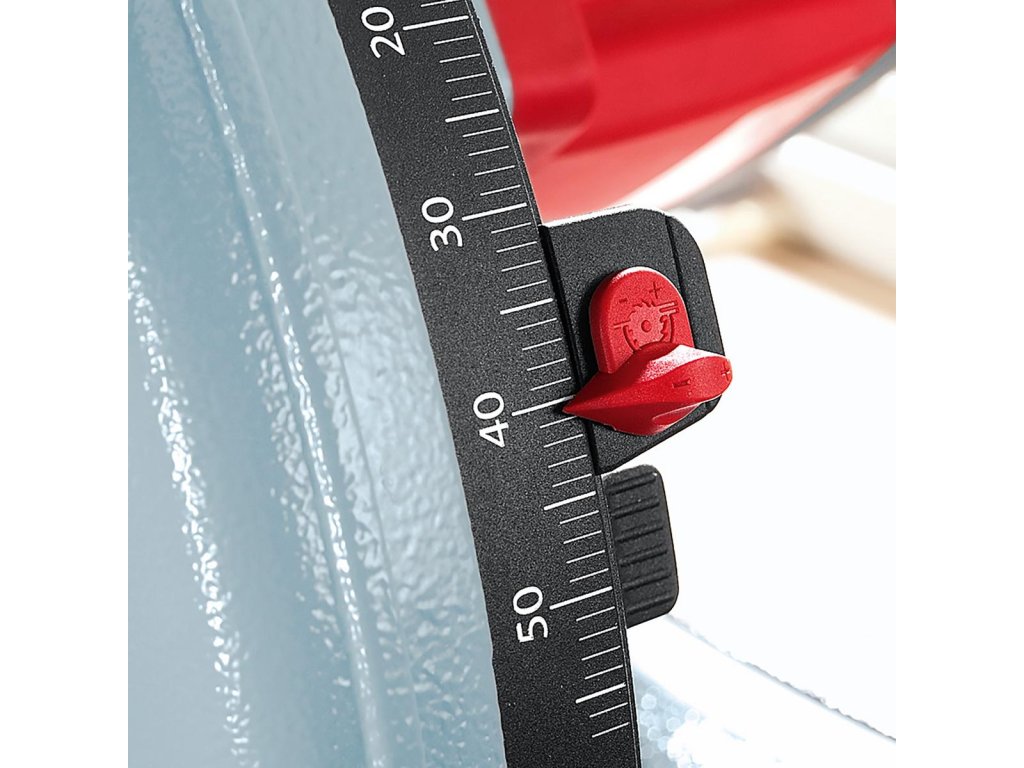

• The depth of cut can be adjusted to the millimetre. With or without the bar - a simple turn of the pointer shows the corresponding depth of cut.

• A semicircular turn of just one lever ensures angle adjustment at the front and rear of the saw when cutting at an angle.

Field of application:

• Cross and longitudinal cuts

• Cuts at an angle of -1 to + 48°

• Immersion cuts

• Materials e.g.: solid wood, cement-bonded particleboard, trespa, OSB, plasterboards, plastics, facade boards, board materials

Product Features:

• With pre-cutting, high speed and precise fixation.

• Ensures greater accuracy.

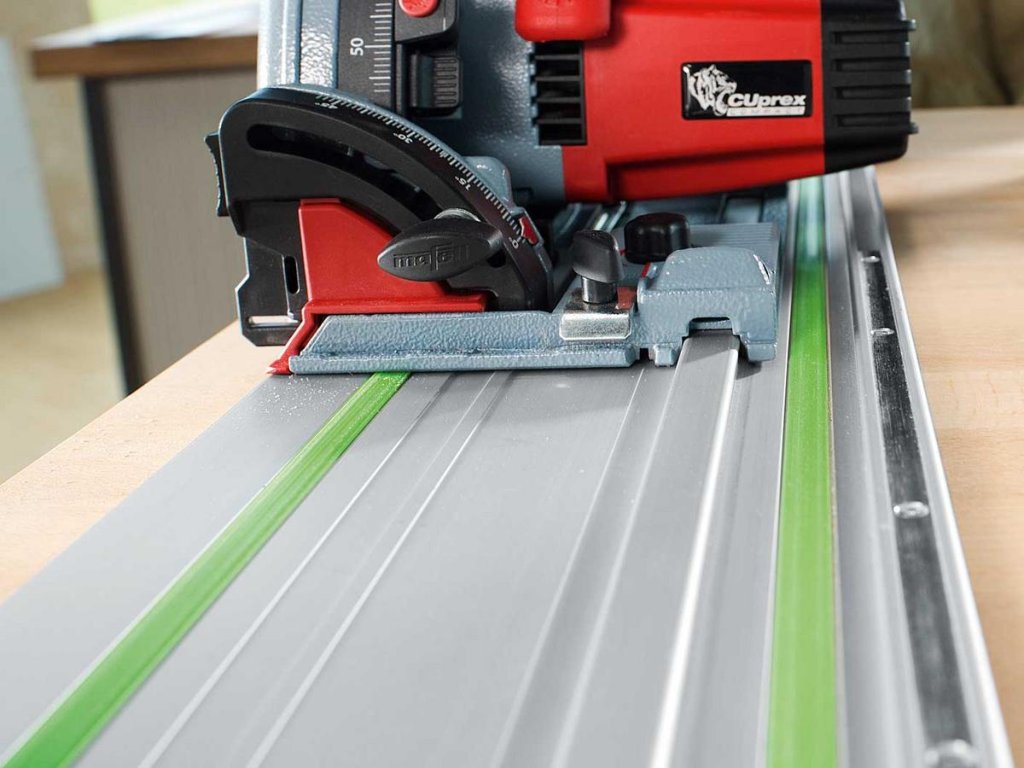

• Compatible with other guide rail systems.

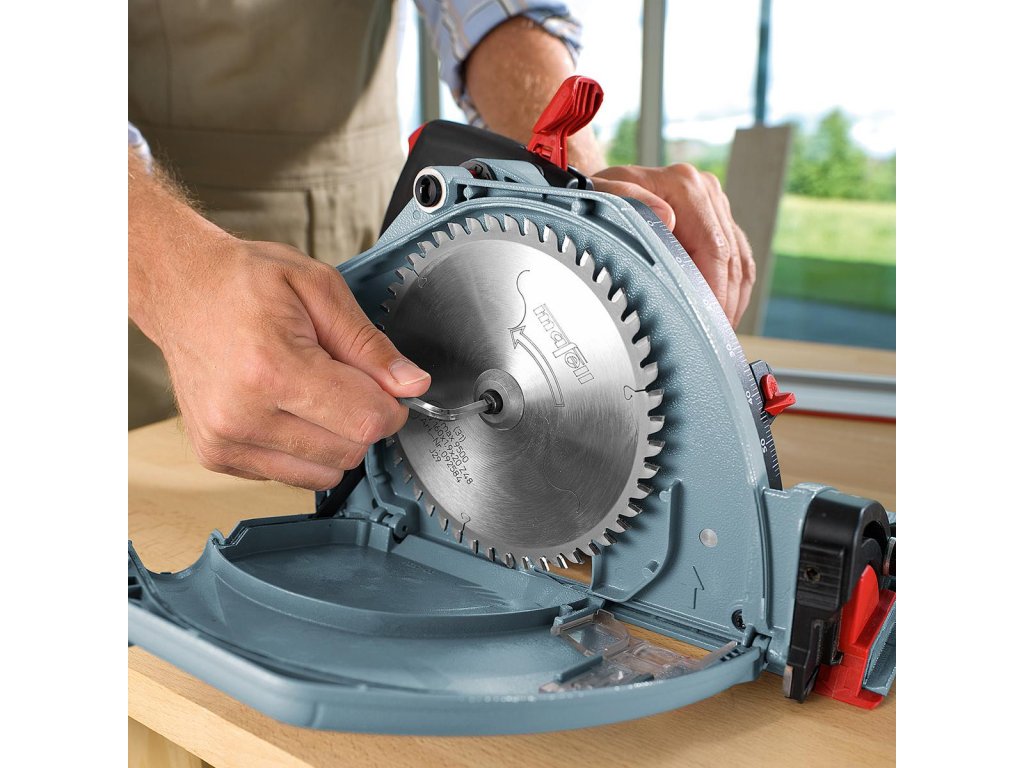

• With the world's fastest and most innovative disc change system.

• More power thanks to the powerful CUprex-Compact engine.

• Rated power: 1400 W,
• Universal motor: 230 V / 50 Hz,
• Idle speed: 3600 - 6250 rpm,
• Cutting depth: 0 - 57 mm,
• Cutting depth at 45°: 0 - 40.5 mm,
• Cutting range: -1 to + 48°,
• Weight: 4.7 kg.

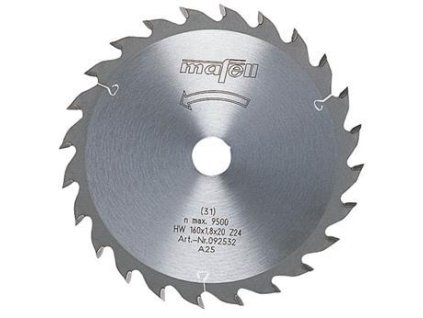

• 1 saw blade HM 162 x 1,2/1,8 x 20 mm, Z 48, WZ for universal use of board materials (092584),
• 1 hexagon wrench, 5 mm (093034)
