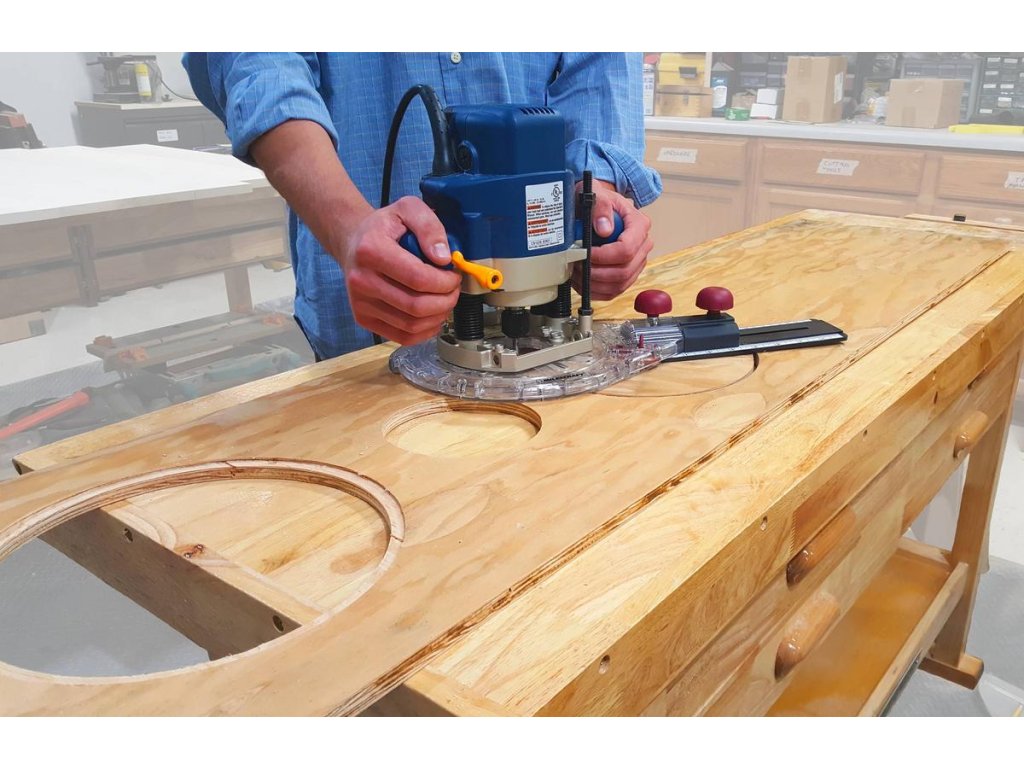

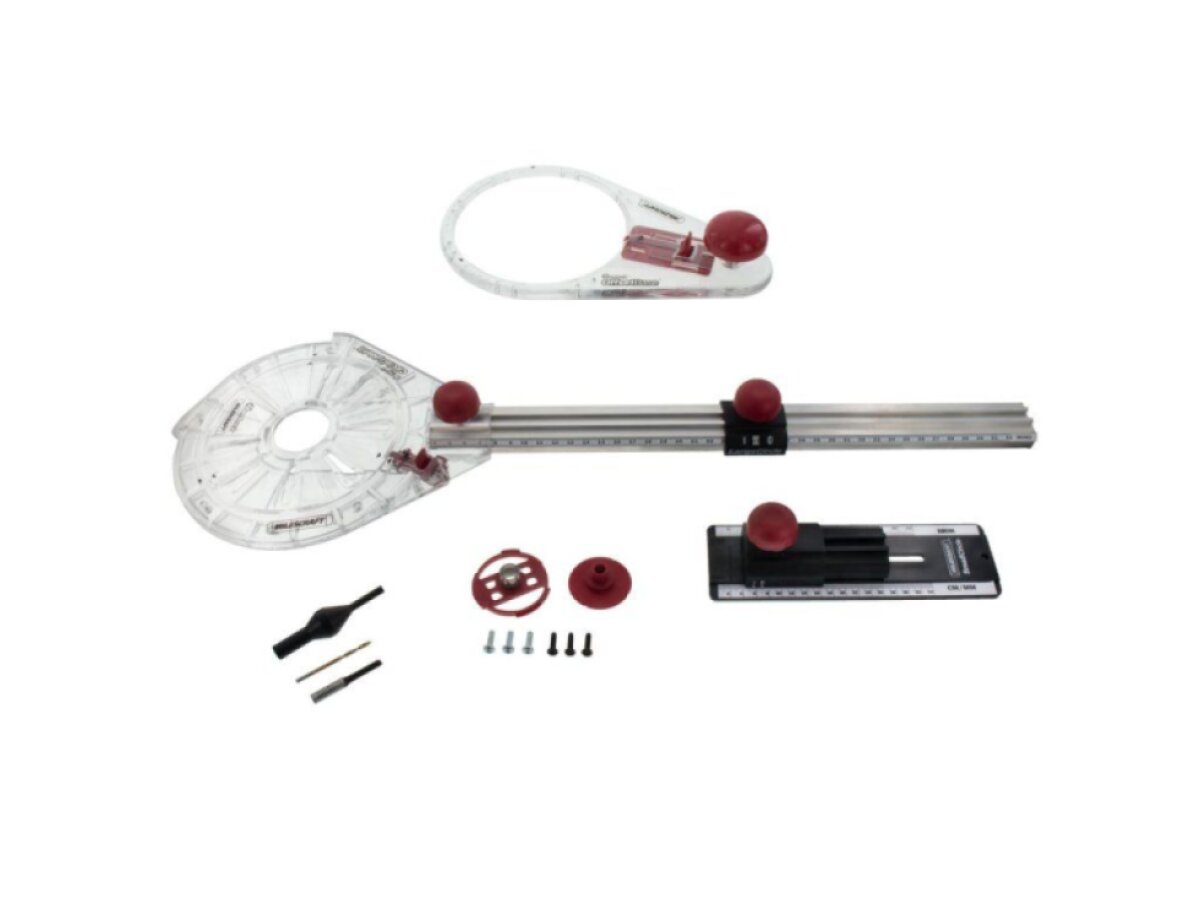

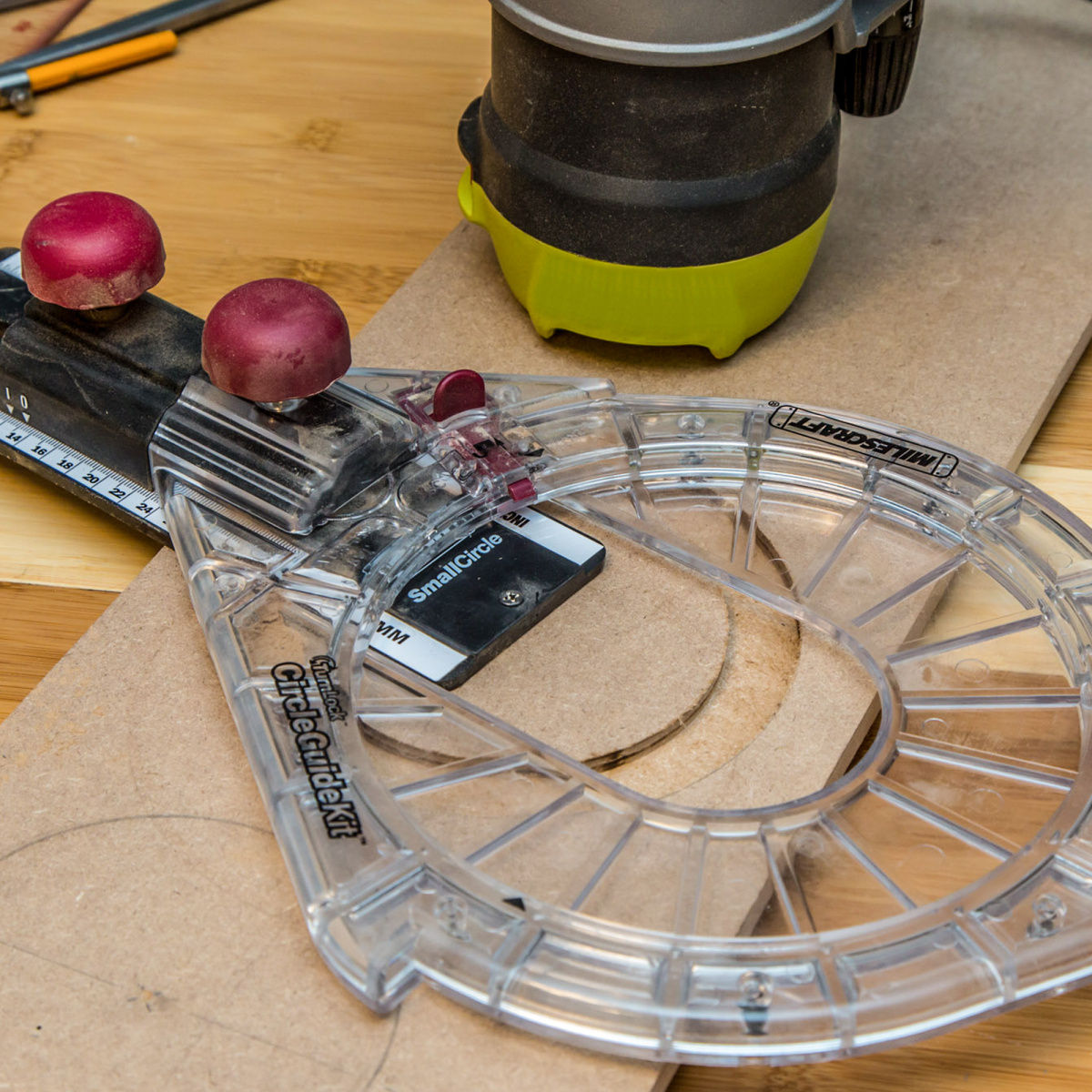

Milescraft - tool for milling circles
Code: M1269Related products

Slotting shank cutter with one drilling razor blade and one cutting razor blade. It has excellent drilling properties in hardwood and board materials (laminate, chipboard, MDF and Corian). The 20 mm diameter shank is designed for safe clamping in CNC machining centres at high feed rates. Can also be used for manual milling.
The milling cutter is equipped with a drilling razor blade, which makes it easier to drill into the material.

Laminating disc for laminated joints - D100x3,96 d22 Z6 HM alternating tooth

Semi-slotted cutter sets allow you to make an unlimited number of cuts by setting different cutting heights on your cutter and changing the bearings on the cutter included in the set.

Ideal tool for engraving and lettering. If you find the razor dull or worn, simply flip it over and use another of the sharp blades. The locking screw safely secures the razor blade and thus ensures precision work.


- Replaceable razor blades made of micro-grain carbide.
- The razor blades can be rotated by 90° for a total of 4 cutting edges.
- The razor blades are fixed with special Torx screws.
- Cutter body made of high-quality steel.
The cutter is equipped with two double-edged razor blades for rounding the edges. The radius is ground on all 4 sides of the razor for maximum tool efficiency. The cutter is fitted with a razor blade with a radius of R3mm or R2mm, which is mainly used on ABS edges. It is also possible to buy a radius R1mm and R1,5 mm, which can be used to cut the edge when gluing umakarte, veneer or laminate on boards. For use on manual top milling machines.

Milling machine designed for precise face milling and copying according to the template underneath. With a traditional brazed cutter, the cutting diameter is reduced against the bearing during sharpening and this causes a tooth to form. The razor cutter eliminates this phenomenon with precisely aligned exchangeable razor blades, which can also be rotated and used with up to 4 blades. For milling Corian, it is possible to purchase a straight or tapered bearing with a plastic ring to ensure precise guidance through the material.
Type F043-195xx with a cutting length of 50 mm is equipped with two copy bearings for better guidance according to the template.

Plate milling cutter without countersink, for milling grooves from 1.5 - 6 mm wide. The drift shank can be freely combined to create a groove according to your own requirements.
Use type 3 (without copy bearing) 4B (with copy bearing).

CMT cutters have long-lasting HM blades, are precision sharpened, and are suitable for milling softwood, hardwood, glulam, DTD, laminate, MDF and Corian. Also suitable for CNC machining.
The sharpening of the cutter face allows deep drilling operations.

Type F045 is designed for cutting, copying and formatting according to a template when using a template from above. For processing of board materials (laminate, DTD, MDF) or hardwood.

- Clean, perfect cuts in boards or drawer fronts
- For edge beveling
- For milling lettering

These cutters are designed for trimming, shaping and grooving.
For direct drilling, use type F044.
Product detailed description

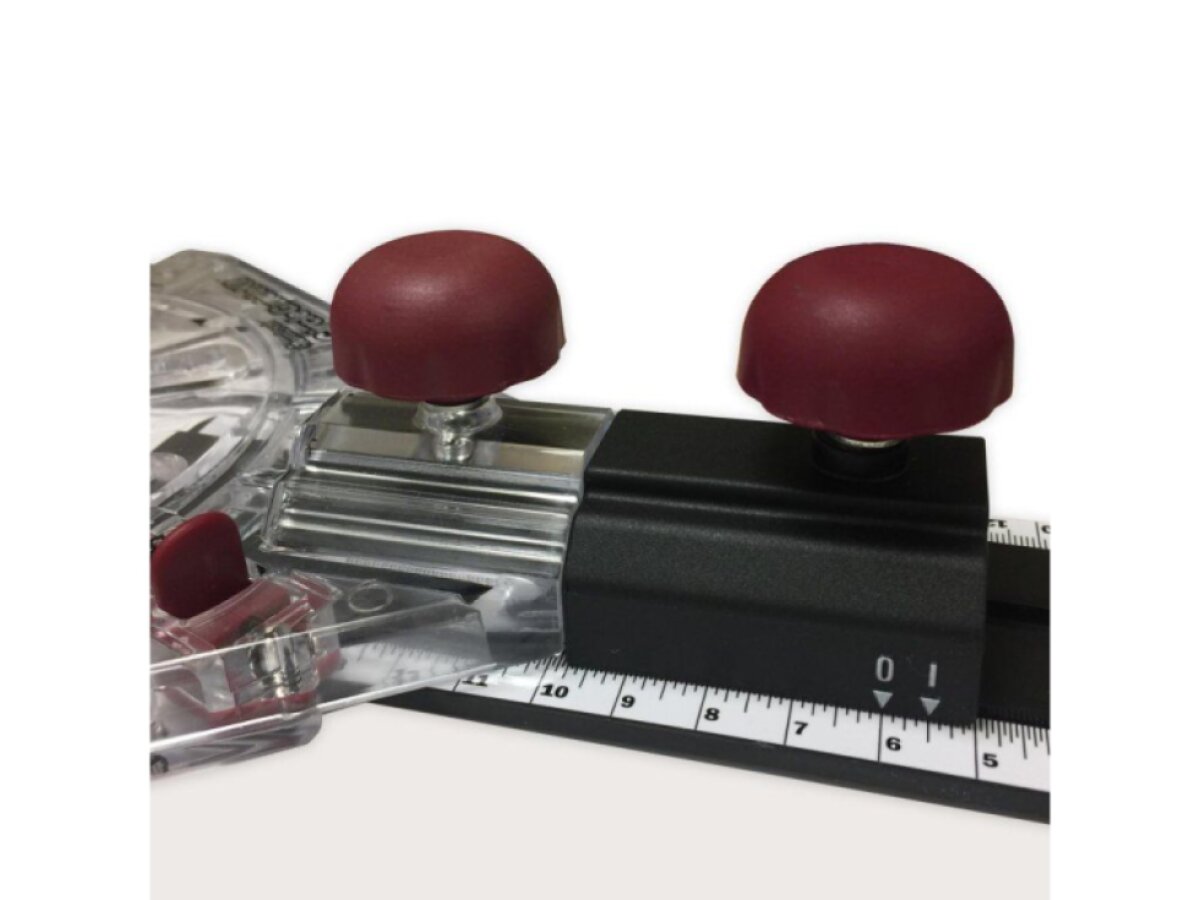

- Robustní, vysoce kvalitní hliníkový nosník, metrická i palcová stupnice.

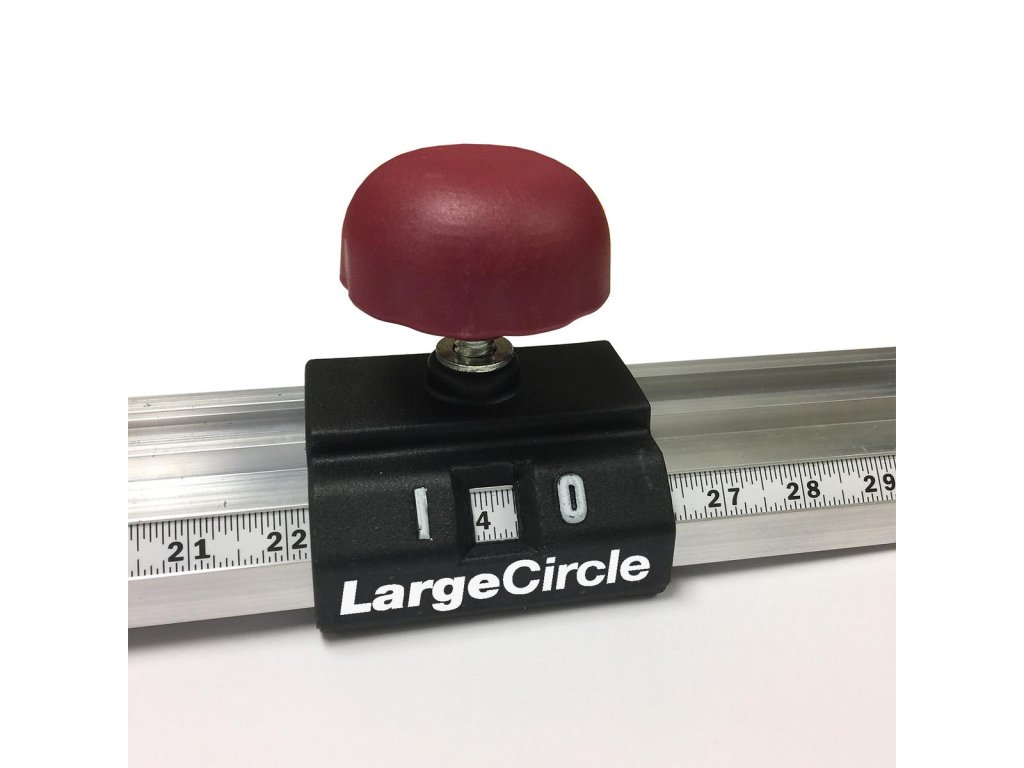

- Snadné odečítací okénko pro nastavení průměru vašich vnitřních i vnějších řezů.

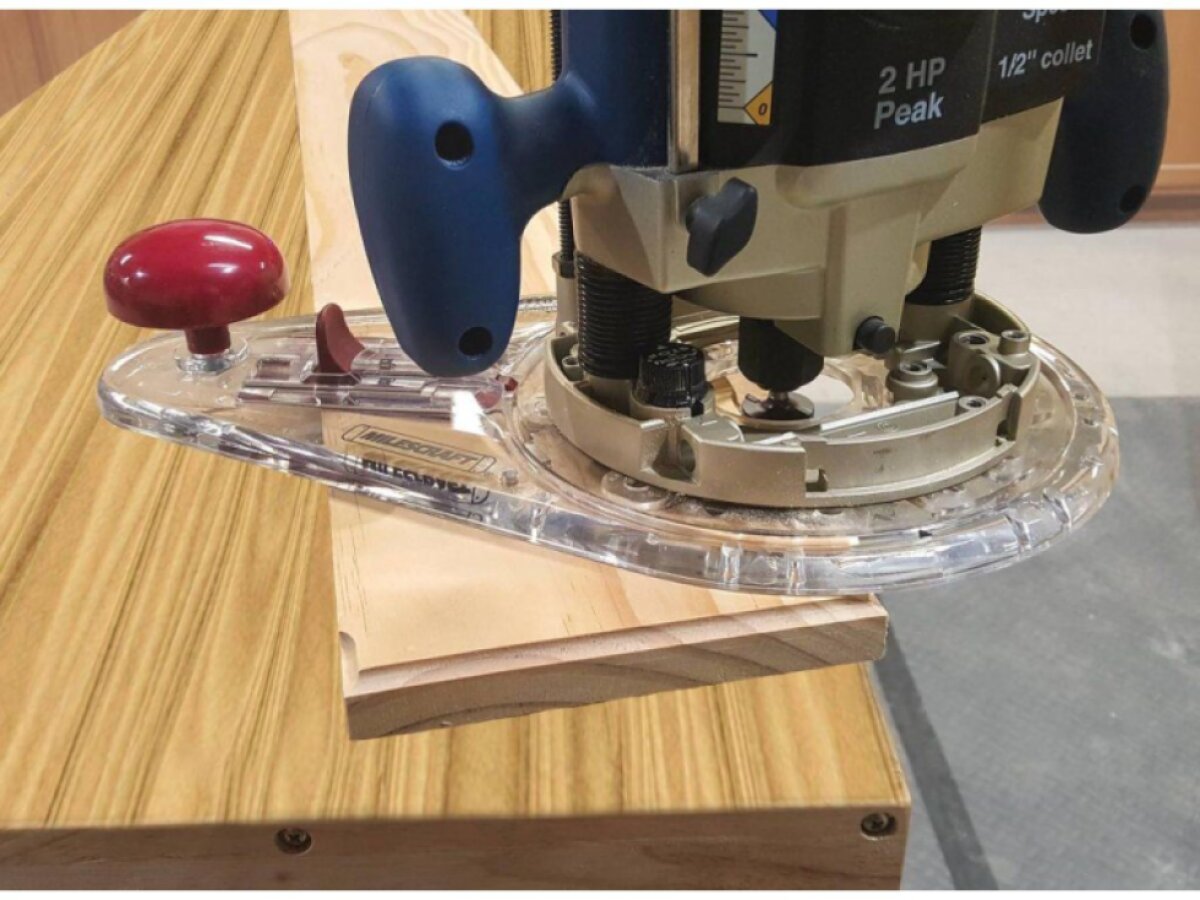

- Velká přídavná základna poskytuje větší stabilitu při dokončování na krajích obrobku kde klasická základna frézky není stabilní.

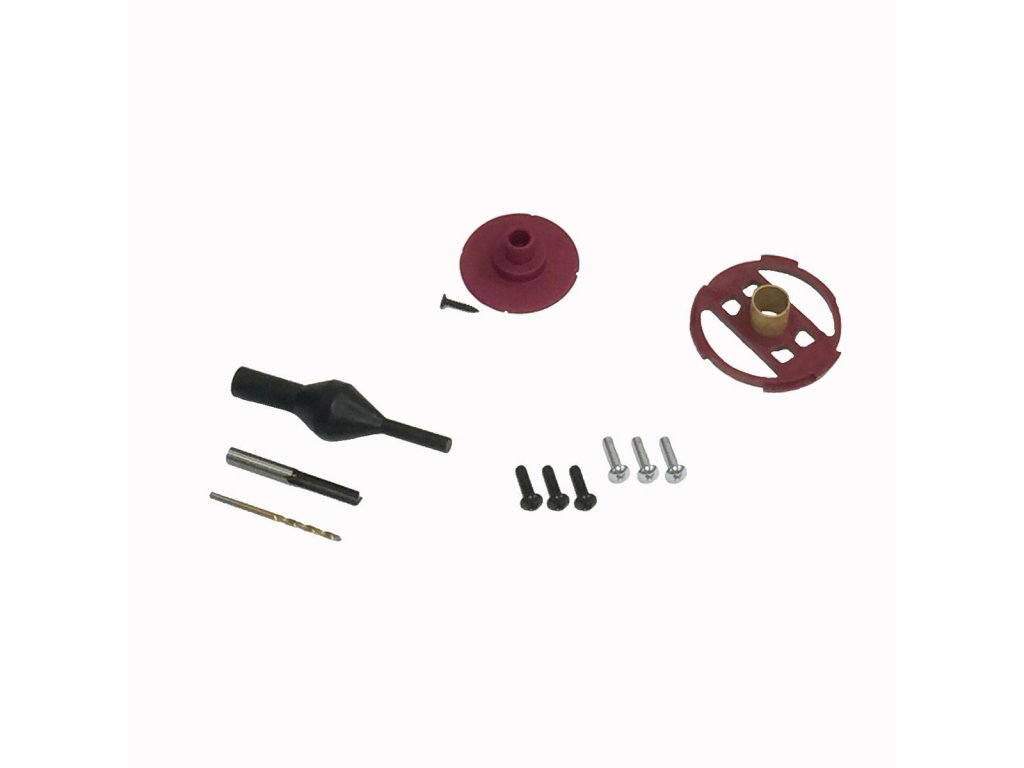

- Technologie TurnLock™ umožňuje rychlé nasazení vodicího pouzdra bez použití nástrojů.
- Mechanismus blokování/odblokování ovládaný palcem zvyšuje rychlost a bezpečnost při výměně nástroje.
- Základní deska TurnLock™ je vhodná pro všechny kroužky Milescraft®.

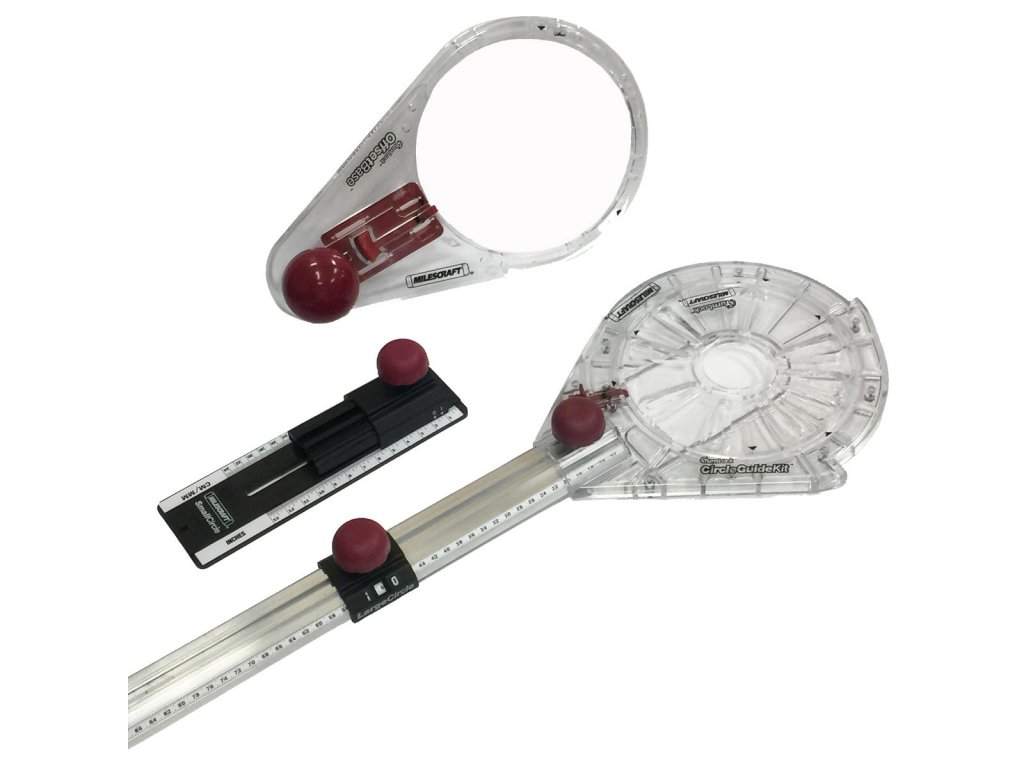

- Malý přípravek pro řezy o průměru 38-305 mm.

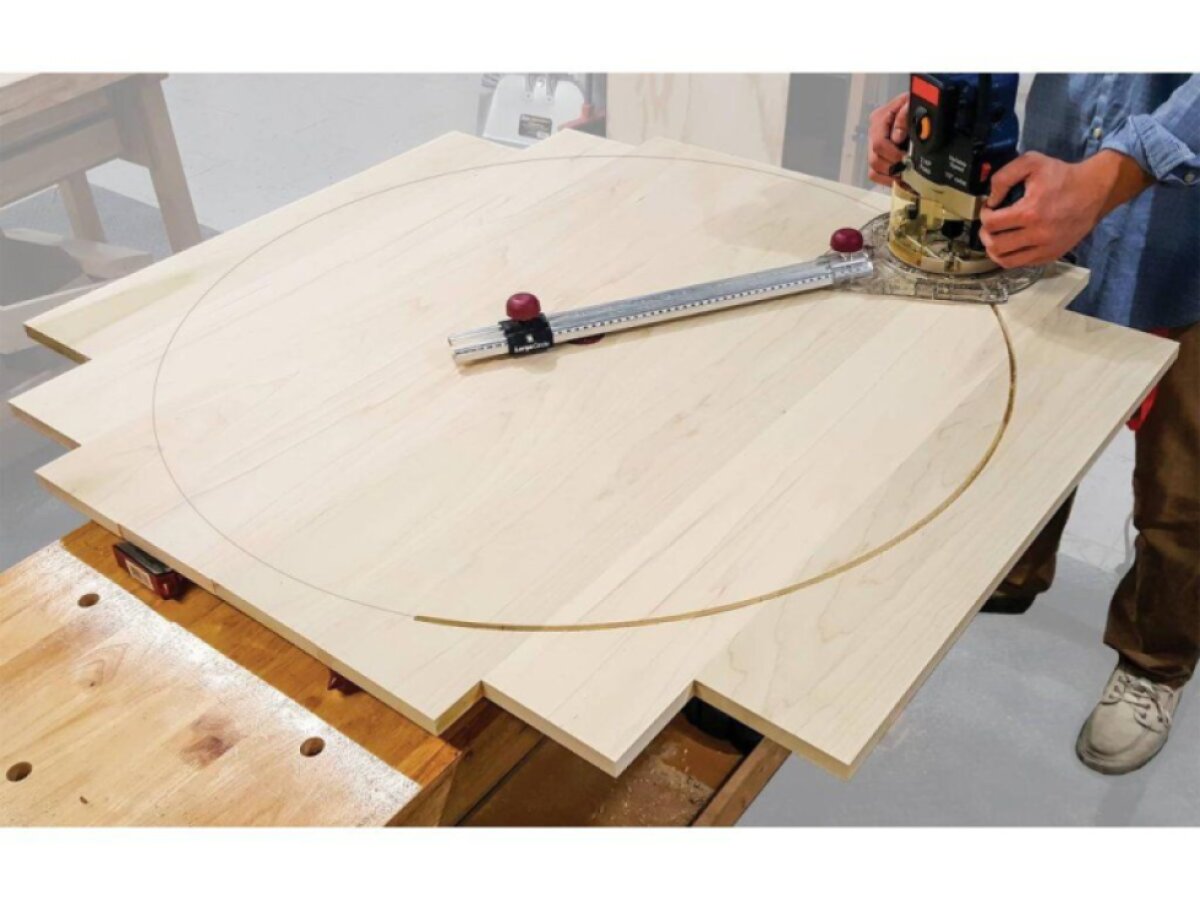

- Velký přípravek řeže průměry 25-130 cm.
Additional parameters
Category: | Drilling and milling jigs |
---|---|
Warranty: | 2 years |
Weight: | 1.2 kg |


Copy ring 30 mm - standard for the production of kitchen countertop joints.
Přípravek pro frézování kružnic
