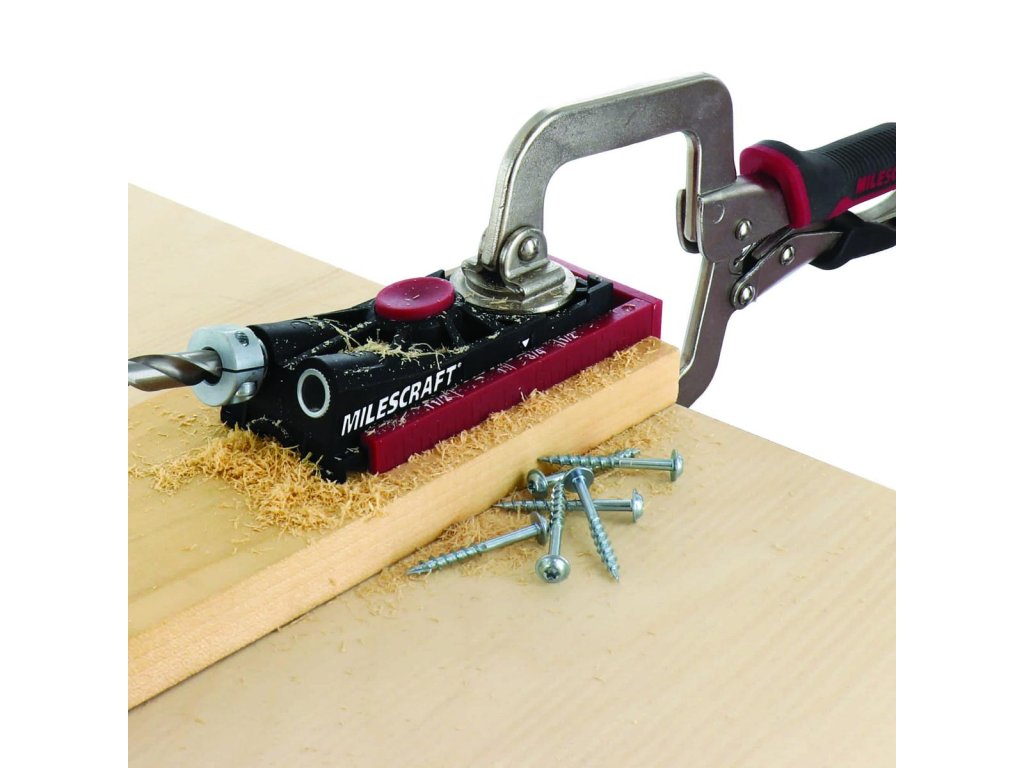

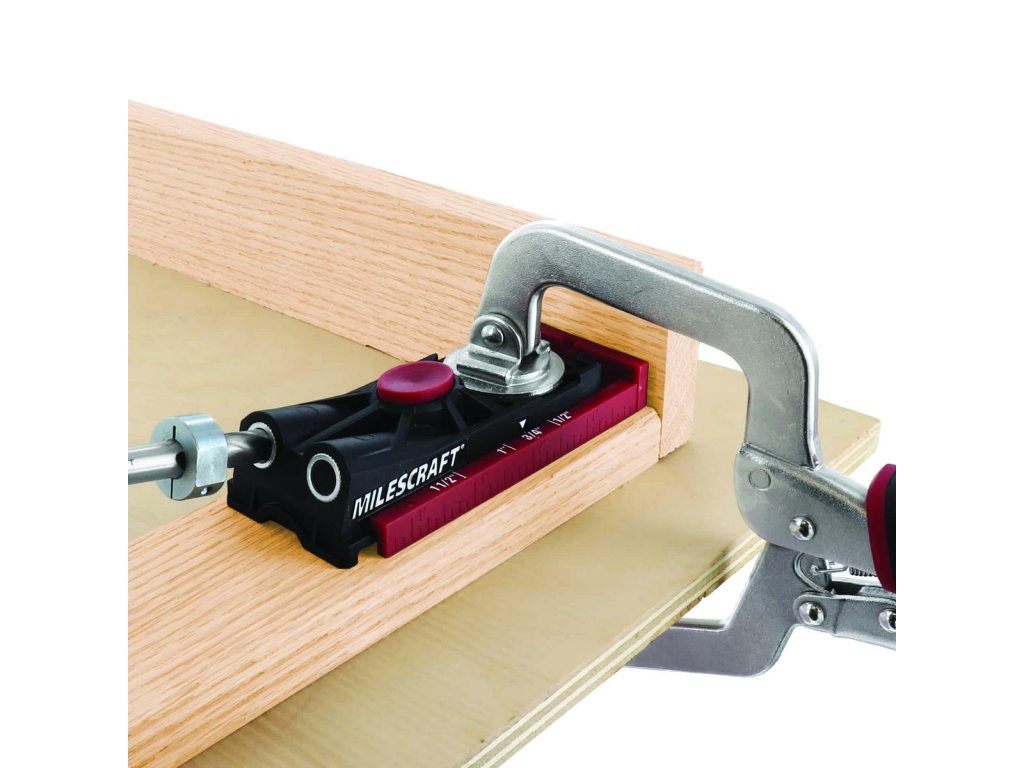

Milescraft | PocketJig200t SET – tool for pocket joints
Code: M1325Related products

Screws for pocket joints: connect your furniture with perfect strength and stability
Looking for the ideal solution for joining wood workpieces that is fast, easy and provides exceptional strength? Screws for pocket joints are exactly what you need! These galvanized T20 Torx® Star self-tapping screws allow you to securely fasten your wooden structures and ensure their longevity.

Screws for pocket joints: connect your furniture with perfect strength and stability
Looking for the ideal solution for joining wood workpieces that is fast, easy and provides exceptional strength? Screws for pocket joints are exactly what you need! These galvanized T20 Torx® Star self-tapping screws allow you to securely fasten your wooden structures and ensure their longevity.

Screws for pocket joints: connect your wood products with the highest strength and precision!
These galvanized T20 Star self-tapping screws have been developed to ensure the secure attachment and connection of wooden parts with maximum precision, strength and stability.

With the Milescraft blanking pin, you can easily hide or highlight the visible holes of pocket joints on various products. Insert the pin into the hole and then just sand it down so that it is flush with the surface. This pin will make your products look flawless and aesthetically appealing.

Pliers from Milescraft® are ideal for joinery work. Universal clamps are particularly suitable for use with drilling fixtures.

Special blade geometry for laminate and chipboard machining. The design of the F047-123 gives a cutting depth of 40 mm even when using a 29.5x9x1.5 mm blade if you are milling multiple passes through the material. Excellent use for cutting, shaping and grooving laminate or kitchen worktops using the top router and templates. Can be used for manual milling or on CNC machining centres.

- Replaceable razor blades made of micro-grain carbide.
- The razor blades can be rotated by 90° for a total of 4 cutting edges.
- The razor blades are fixed with special Torx screws.
- Cutter body made of high-quality steel.
The cutter is equipped with two double-edged razor blades for rounding the edges. The radius is ground on all 4 sides of the razor for maximum tool efficiency. The cutter is fitted with a razor blade with a radius of R3mm or R2mm, which is mainly used on ABS edges. It is also possible to buy a radius R1mm and R1,5 mm, which can be used to cut the edge when gluing umakarte, veneer or laminate on boards. For use on manual top milling machines.

Trimming cutter with upper and lower bearing. Double sided razor blades clamped with Torx strength screws. For precision face milling with a top milling machine or in a milling table.

Type F045 is designed for cutting, copying and formatting according to a template when using a template from above. For processing of board materials (laminate, DTD, MDF) or hardwood.

Milling machine designed for precise face milling and copying according to the template underneath. With a traditional brazed cutter, the cutting diameter is reduced against the bearing during sharpening and this causes a tooth to form. The razor cutter eliminates this phenomenon with precisely aligned exchangeable razor blades, which can also be rotated and used with up to 4 blades. For milling Corian, it is possible to purchase a straight or tapered bearing with a plastic ring to ensure precise guidance through the material.
Type F043-195xx with a cutting length of 50 mm is equipped with two copy bearings for better guidance according to the template.
Product detailed description
- The spring sledge is adjustable at the push of a button to different material thicknesses (12, 19, 27, 38 mm).

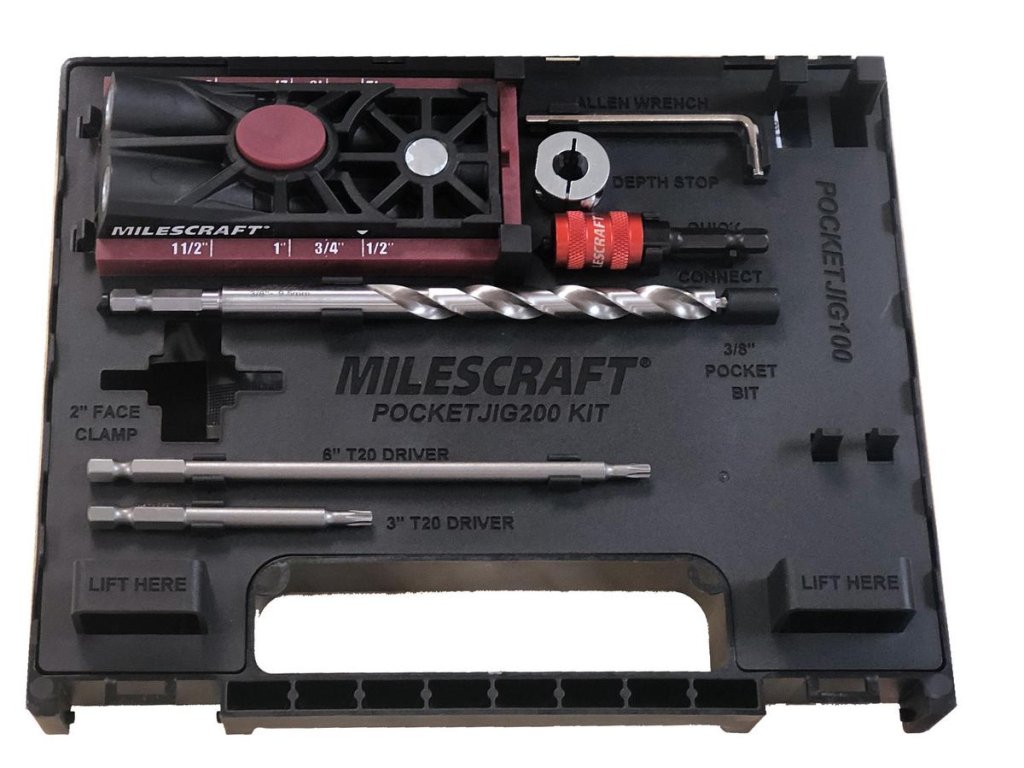

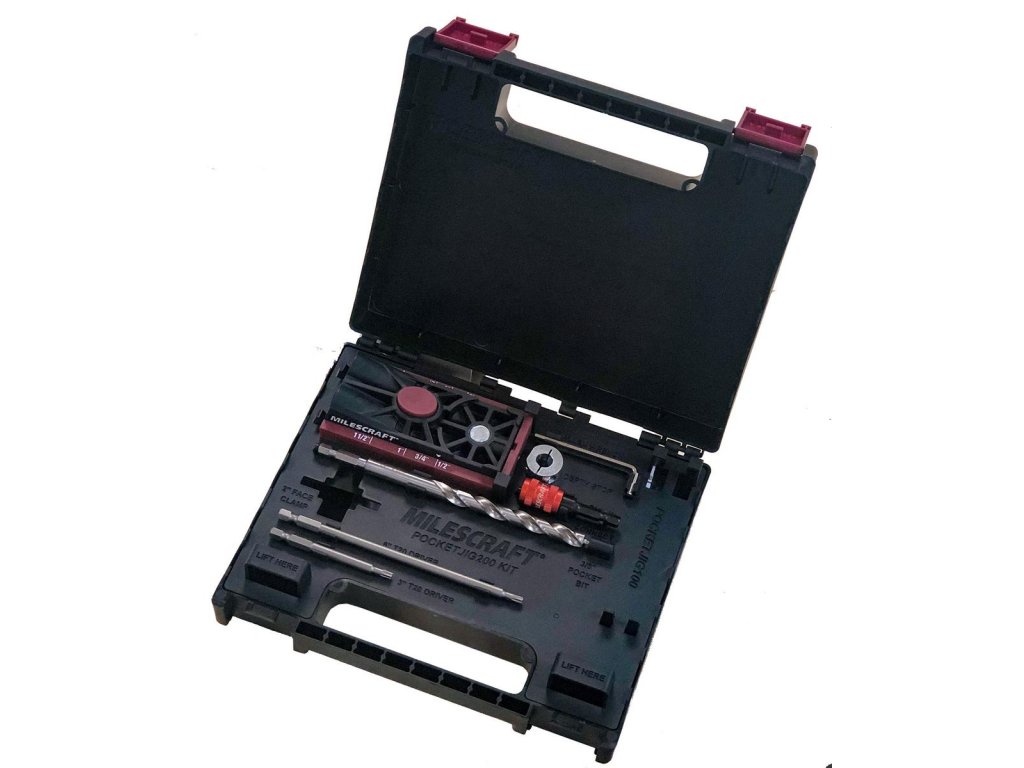

- This complete kit in a sturdy carrying case comes with all the bits, drivers, screws and accessories needed to complete any product.
- Hardened steel bushings for precise and accurate drilling of holes.
- Ideal for quick and easy joints, it is suitable for material thicknesses (12, 19, 27 and 38 mm).
- Legible reference marks for setting the jig to the correct material strength.
- A recessed washer with a clamping magnet helps keep the clamp in the same position when moving to the next joint.
- Hardened steel drill sleeves for precise and accurate holes.
- 3/8" split depth stop prevents slipping when tightening
- the 3/8" HSS drill bit with ¼" hex shank is designed to be non-clogging and keep holes perfectly clean.

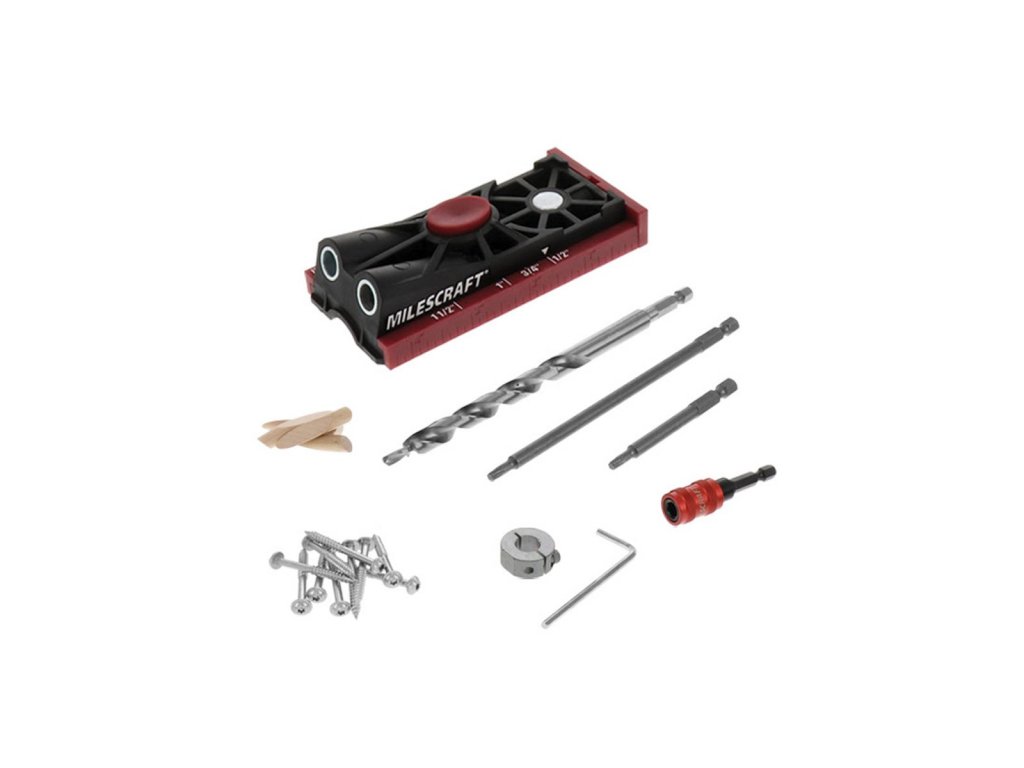

Scope of delivery:
- Double-headed hole tool
- Bit holder
- Bit TX 20, length 15 cm
- Bit TX 20, length 7,5 cm
- Split stop ring
- HSS 3/8" (9.5 mm) drill bit with 1/4" hex shank
- Imbus 3 mm
- Drilled 60 pcs of various lengths and blanking pins.
Additional parameters
Category: | Drilling and milling jigs |
---|---|
Warranty: | 2 years |
Weight: | 0.92 kg |

Copy ring 30 mm - standard for the production of kitchen countertop joints.
