Product detailed description
Milescraft TrackSawGuide™ – Precise and Straight Cuts with Your Circular Saw
TrackSawGuide™ transforms a standard circular saw into a professional guide system, ensuring absolute precision and safety with every cut. Forget the risks associated with manual saw guiding, which can lead to inaccuracies, wasted time, and unnecessary costs.
✅ Precise rip, cross, and angle cuts up to 1270 mm in length

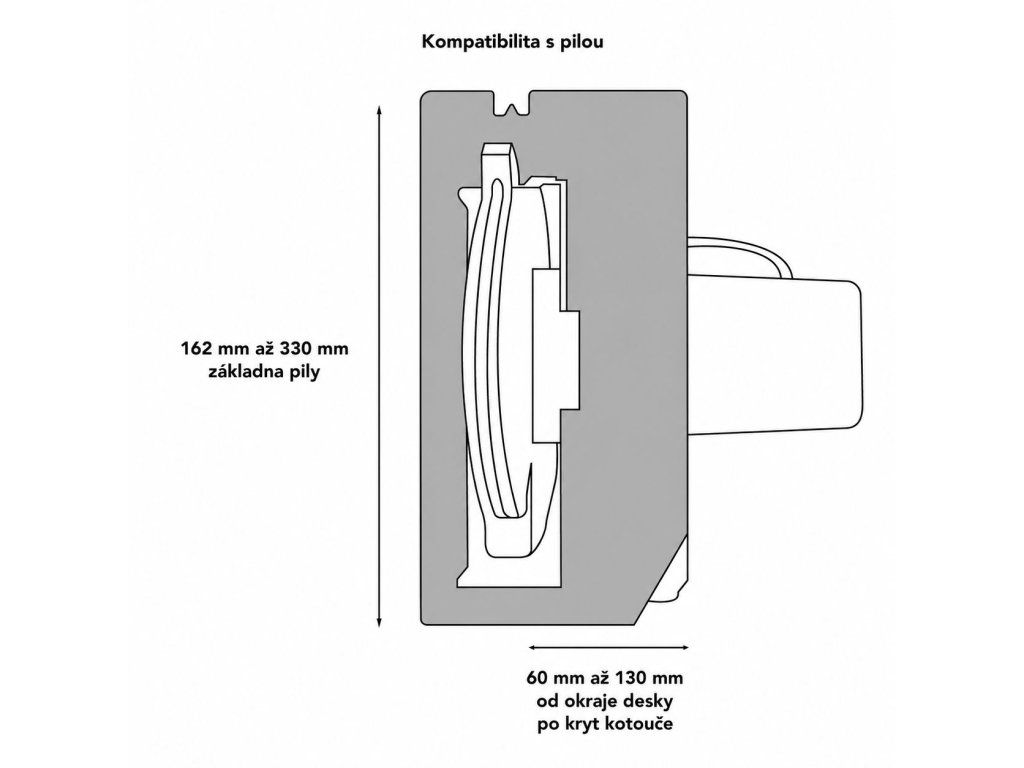

✅ Compatible with most circular saws with blades up to 190 mm
✅ Aluminum construction minimizes bending and enhances precision
✅ Low profile allows cuts up to 50 mm deep (depending on the saw)
Key Features
🔹 Universal Compatibility – The adjustable base fits most standard circular saws.
🔹 Cuts Full Sheets – Up to 1270 mm in one pass, with unlimited extension using GuideRail™.
🔹 Durable Metal Construction – Aluminum guide rails ensure stable tracking and repeatable precise cuts.
🔹 Easy Alignment – Red cutting strip acts as a visual guide, ensuring the saw cuts exactly along it.
🔹 Chip Reduction – Special anti-chip tape minimizes material chipping and improves cutting stability.
🔹 Sufficient Cutting Depth – Cuts standard doors 35–44 mm thick as well as thicker materials.
Package Contents
📦 1× Guide Sled (universal base)
📦 1× Spacer for Saw Adjustment
📦 2× 700 mm Guide Rails
📦 2× Rail Clamps
📦 4× Fastening Clips
📦 4× Spacers (for adjusting sled clearance)
🛠 The perfect choice for carpenters, craftsmen, and DIYers who require precise and safe saw guidance without investing in expensive track saw systems.
Additional parameters
Category: | Guide rails and woodworking aids |
---|---|
Weight: | 5 kg |
EAN: | 737888140909 |
