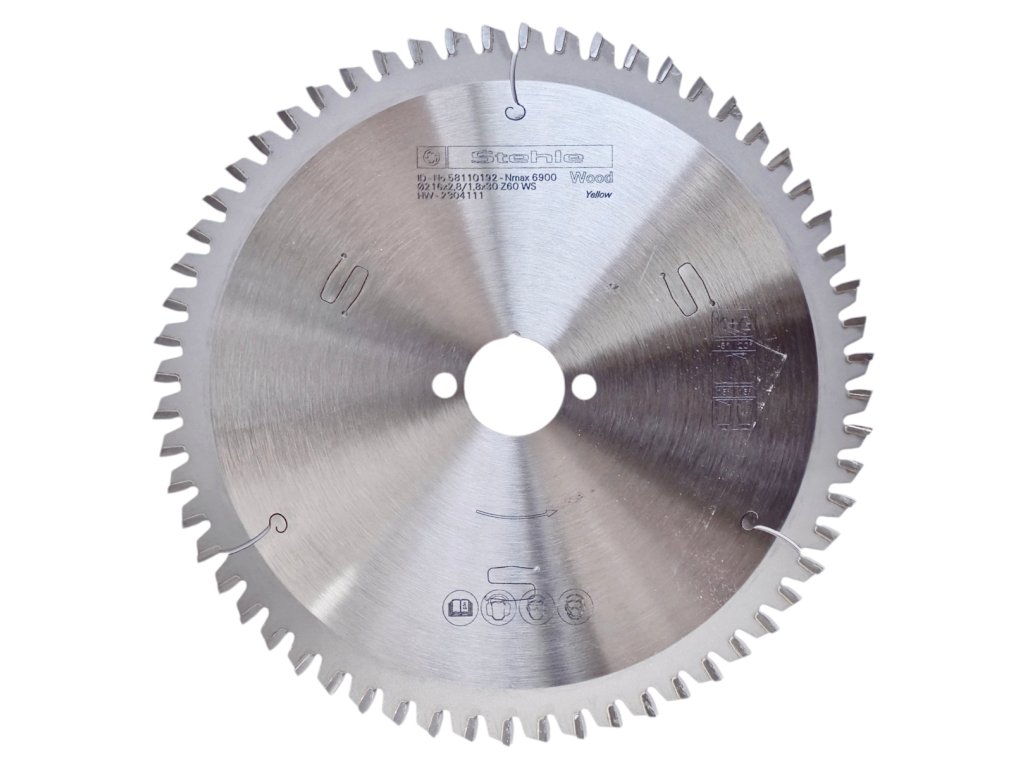

Stehle | Saw blade for wood and wood materials ø 216/30 mm Z60 WZ/ATB -6° negative

Product detailed description

Stehle | Saw blade for solid wood and wooden materials ø 216x1.8/2.8x30 mm Z60 WZ/ATB -6° universal.

Suitable materials:

• Solid wood (soft and hard)
• Glued wood (KVH, BSH)
• Chipboard and OSB
• Plywood and veneered materials

Parameters:

• Disc diameter: ø216 mm
• Clamping hole: 30 mm
• Number of teeth: 60
• Wheel body thickness: 1.8 mm
• Tooth width: 2.8 mm
• Tooth shape: alternating WZ - negative -6°
• Maximum speed: 7100 rpm

Description:

This Stehle saw blade with 60 alternating teeth (WZ/WS - Wechselzahn) for clean cutting where cut quality is required.

The alternating tooth arrangement (WZ) creates a wider cutting gap, which contributes to better sawdust removal and reduces friction during cutting.

The blade is fitted with sliced TC10 sintered carbide (this type of sintered carbide represents the standard industrial quality suitable for normal cutting of wood and wood materials), which ensures high durability and long blade life even under intensive use. The blade is ideal for working with solid wood, particleboard, glued materials and OSB.

Advantages of alternating helical teeth (WZ/ATB) with negative face angle:

• Clean cuts: minimise tearing and burrs on the surface of the material.
• Safety: reduced risk of recoil due to negative head angle.
• Versatility: suitable for various wood materials and laminates.

Recommendations for use:

Negative tooth face angle of -6° with better incisal control reduces the risk of backward of kickback, which is particularly important for mitre cuts. The combination of these features makes the blade ideal for precision work with various wood materials.

For optimum performance, we recommend setting the blade so that it only overhangs the material by the height of the tooth slice.

Suitable for:

• Mitre saws
• Table saws
• Professional joinery work requiring high cutting precision
