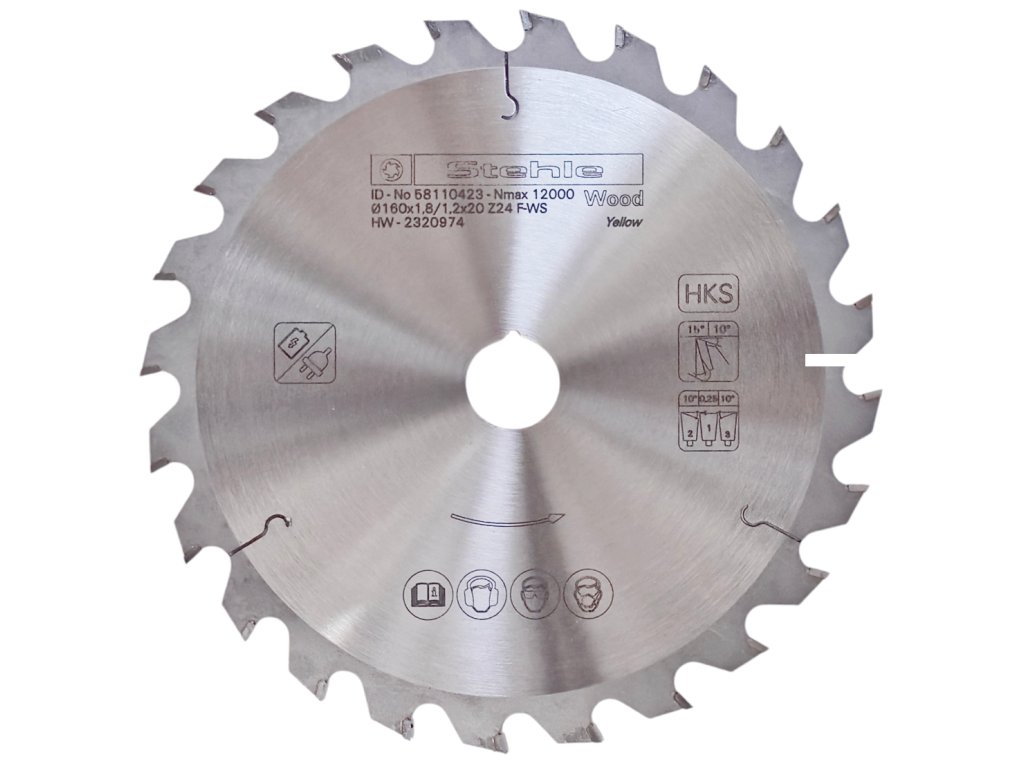

Stehle | Wood saw blade for transverse and longitudinal cutting ø160/20mm 24 FWS

Product detailed description

Stehle | Wood saw blade for cross cutting ø160/20 mm 1.8/1.2 mm Z24 F-WS – universal cutting.

Suitable materials:

• Solid wood (soft and hard)
• Chipboard (DTD)
• Plywood
• MDF
• Veneered materials

Parameters:

• Disc diameter: ø160 mm
• Clamping hole: 20 mm
• Number of teeth: 24
• Tooth shape: G3 (1x flat tooth, 2x alternating teeth)
• Cutting width: 1.8 mm
• Wheel body thickness: 1.2 mm

Description:

This Stehle saw blade with a diameter of 160/20 mm and 24 teeth in the G3 configuration is specially designed for longitudinal and transverse cuts in wood and wood materials.

The G3 configuration includes a repeating group of three teeth: one flat (straight) tooth and two alternating (helical) teeth. This arrangement ensures optimum cutting performance and high cutting quality when formatting plates, minimizing material tear-out. The positive tooth face angle of +10° contributes to more efficient cutting and better chip evacuation.

Advantages of the G3 configuration with positive face angle:

• Clean and smooth cut: the combination of flat and alternating teeth with a positive face angle ensures a precise cut with minimal tearing.
• Efficient chip evacuation: the flat tooth creates a groove while the alternating teeth widen the cut, improving chip evacuation and reducing blade heating.
• Versatile: Suitable for cross and longitudinal cuts in various materials.

Recommendations for use:

For optimum cut quality, we recommend setting the blade so that it overlaps the material only by the height of the tooth. This minimises wear on the blade and ensures a quality universal cut.

Suitable for:

• Submersible saws including cordless versions and hand-held circular saws
• Ideal for professional joinery workshops and demanding DIYers
