Swanson | "Speed Square" Metric Carpenter's Square

Code: NA202
777 Kč
In stock (4 pcs)
Delivery to:
23/01/2025
Delivery offer

Carpenter's Angle Swanson - a simple helper in the construction of roofs and shelters of all kinds from professionals to DIY.

The angle can be conveniently cut with a circular saw, 0.5 cm notches for easy scribing of not only tenons and splints, clear angle scale.

See below in the files tab to download the Czech manual. We also send goods to Slovakia as standard

Detailed information

Product detailed description

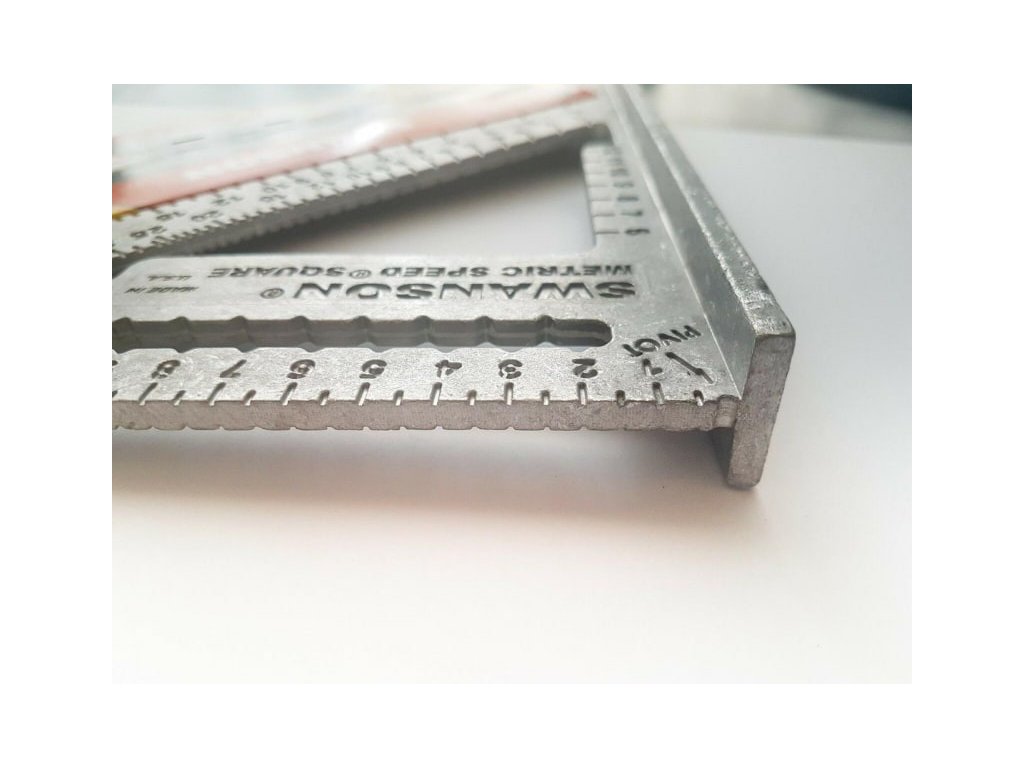

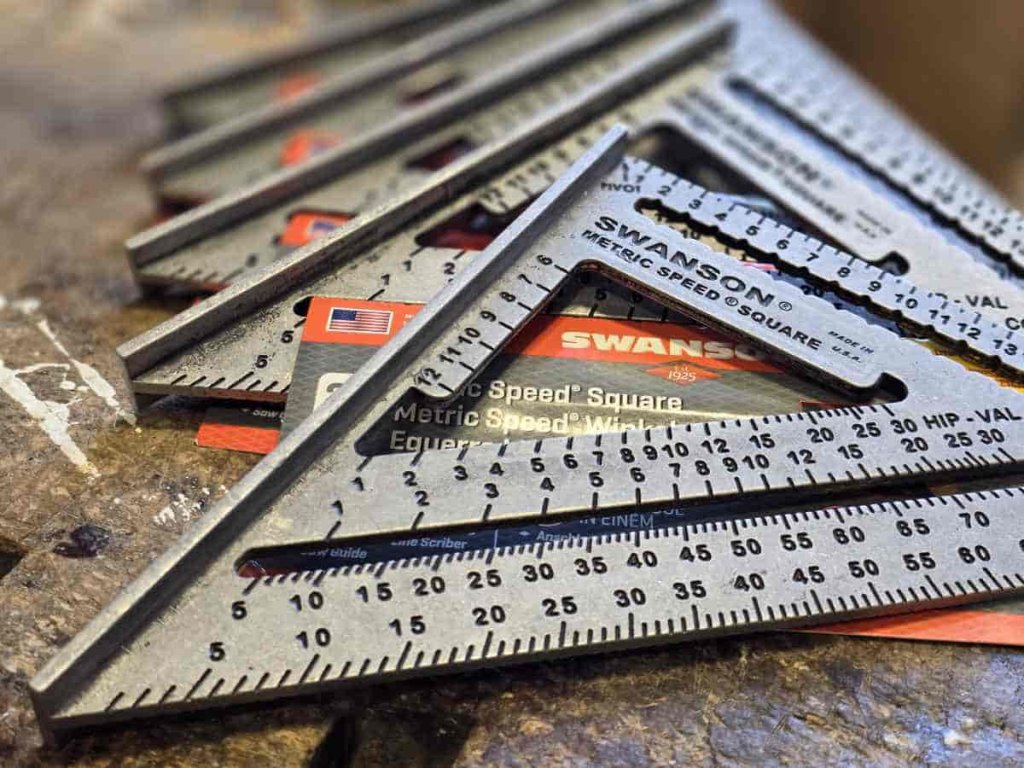

Swanson® | The legendary carpenter's square.

  • The only version in metric.
  • The angle is designed with two sets of gauges when used for common rafters, corner and eaves beams.
  • The angle can also be used as a stable guide for the electric saw.
  • The internal scale is used to mark studs and splints.
Swanson | " Speed Square " metrický tesařský úhelník

One angle, many possibilities.

  • The jig is used for precise measurement and drawing of angles and lines.
  • "Scribe" notches are placed along the centimeter scale, allowing the user to draw lines up to 14 cm wide along the entire length of the material.
  • The Pivot allows the angle to be easily rotated to measure angles, or an existing angle can be detected using a plumb bob.

the "ONE NUMBER METHOD" developed by Swanson Tool Co., Inc. simplifies the construction of the roof structure (ties). Diagrams, pictures and tables are included in the manual and will assist you in applying SPEED Angle to roof structures and other projects. Remember, proper planning will save time and materials. "Measure twice and cut once."

Description and use:

  • Size of the angle 25,4cm.
  • The only version in metric
  • The angle is designed with two sets of gauges when used for common rafters, corner and eaves beams.
  • The inner scale (scale) with smaller numbers is for working in metric data, while the outer scale (scale) is for working in degrees. By having a full 90° degrees, the scale allows the user to mark any angle in degrees, as well as angles represented in "*decimeter of height per meter of length." You can easily, on the first try, convert degrees to decimeters of height or vice versa.
  • The angle is marked the same on both sides for use on either side of the beam.
  • There are also "Scribe notches" located below the centimeter scale to allow the user to draw a line up to 14 cm in width along the length, of the entire piece of lumber.
  • The angle can also be used as a stable guide for the electric saw.
  • The internal scale is used to mark studs and splints.
  • Made of lightweight high quality aluminium alloy.
  • Matte finish for better visibility.
  • The size and properties of the angle lend it multiple uses within the construction industry.
  • Made in USA

There are many videos and tutorials on the YouTube channel on how to work with the angle - probably the best ones are on the Carpentry Window.

Additional parameters

Category: Angles and metal rulers
Warranty: 2 years
Weight: 0.6 kg
