Sola | Line laser Sola Plano 3D Professional, 360°

Line laser SOLA PLANO 3D GREEN PROFESSIONAL, 360° Real Green technology.

Description:

• 360° Real Green technology for perfect visibility: the PLANO 3D GREEN PROFESSIONAL uses advanced Real Green technology to provide exceptionally bright and sharp green laser lines. The green rays are more visible than traditional red rays, increasing measurement accuracy even in low light conditions.

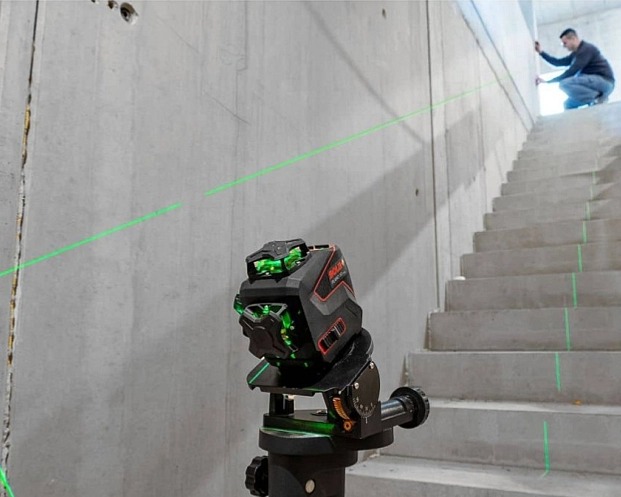

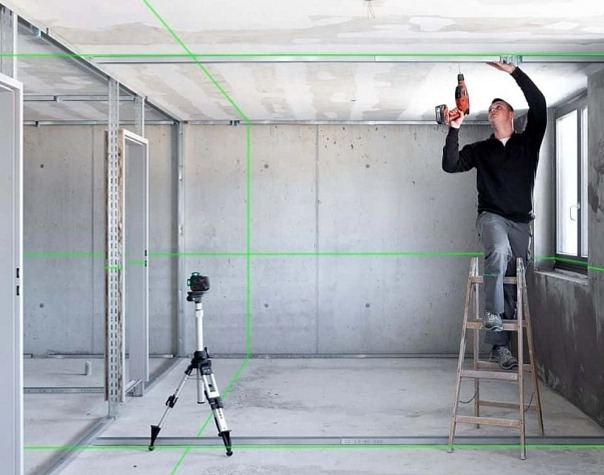

• Versatile use with complete 3D coverage: this line laser projects two vertical 360° lines and one horizontal 360° line, enabling precise levelling, alignment, plumbing and trimming. It is ideal for building partitions, installing tiles, suspended ceilings, lighting and other installation work.
• Individually switchable lines: allows individual lines to be switched individually, providing flexibility and adaptation to different tasks on site. The laser is suitable for precision moulding, measuring and installation.
• Tilt function for flexible applications:The PLANO 3D GREEN laser is equipped with a tilt function that allows you to adjust and maintain the angle, which is useful for the installation of sloping structures such as stair railings or pitched roofs.
• Self-levelling mechanism: the instrument automatically levels itself to ±0.3 mm/m within ±3°, minimising errors and reducing installation time. If it is outside this range, the indicator will warn of the discrepancy.

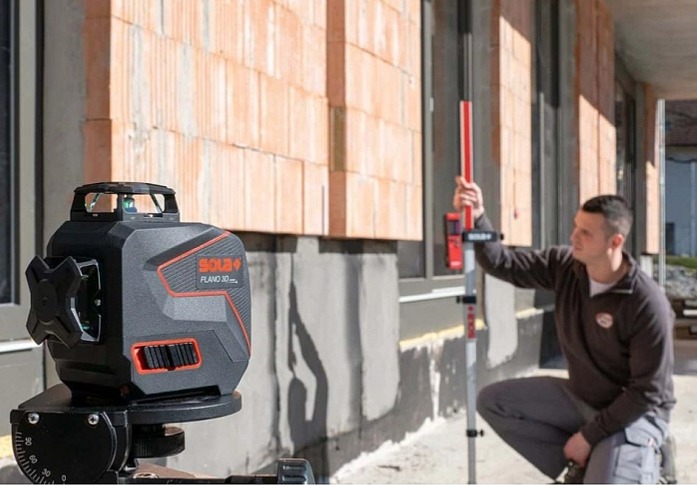

• Pulse mode for working with a handheld receiver: pulse mode can be used when working over long distances or in poor lighting conditions. With the optional REC LGD0 receiver, it is possible to reach up to 80 m, even with limited visibility of the laser lines.
• Compact and intuitive design: the device is lightweight, compact and features three simple control buttons that make operation intuitive and easy. It can be operated with one hand, which makes it easier to handle when working.
• Long life with high-performance batteries: thanks to lithium-ion batteries with a capacity of 3450 mAh, long life of up to 8 hours of operation with all active LEDs is guaranteed. Economical rechargeable batteries save costs and provide flexibility.
• Robust and durable design: with IP54 protection, the laser is dust- and splash-proof, ensuring a long service life even in harsh working conditions. It is equipped with 1/4" and 5/8" threads for easy mounting on a tripod.
• Versatile use for accurate measurement:
  • Horizontal and vertical leveling
  • Staking out perpendiculars and fitting
  • Slope measurements
  • Assembly and installation of lighting, tiles and suspended ceilings

Technical data:

• Dimensions: 150 × 95 × 125 mm
• Leveling: Self-levelling, ±3°
• Measurement tolerance: ±0.30 mm/m
• Range without handheld receiver: 30 m (radius)
• Range with handheld receiver: 80 m (radius)
• Operating temperature: -10 °C to +50 °C
• Tripod mounting: 1/4" + 5/8"
• Degree of protection: IP54
• Power: 2 × Li-Ion battery 3.6 V (3450 mAh)
• Operating time: 8 hours (all LEDs active)
• Laser class: 2, DIN EN 60825-1 : 2014
• Output power: < 1.0 mW
• Wavelength: 505 - 520 nm

Scope of delivery:

• 1 x Plano 3D line laser
• 4 × Li-Ion battery 3.6 V (3450 mAh)
• 1 x charger
• 1 x Wall bracket WB
• 1 x green glasses
• 1 x transport case

PLANO 3D GREEN PROFESSIONAL delivers precision and efficiency thanks to its Real Green technology, robust design and easy operation. It is the ideal solution for professionals who demand reliability and high performance in construction work, installations and other projects.
