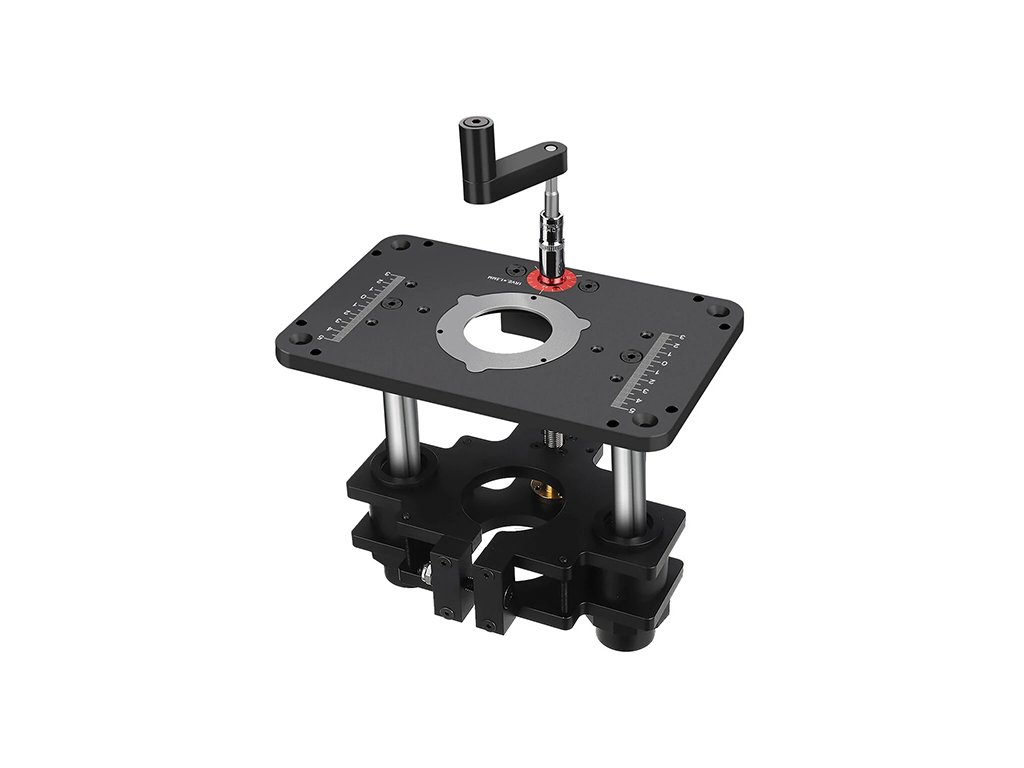

Lifting milling table for top milling machine

Product detailed description

Features

✔ Compatibility - suitable for 65 mm and 69 mm diameter milling machines

✔ Precise height adjustment - micro-adjustment system for maximum control

✔ Durable construction - aluminium alloy for long life

✔ Easy operation - quick crank adjustment without loss of accuracy

Technical Specifications

• Material: Aluminum alloy (hardened anodized plate)

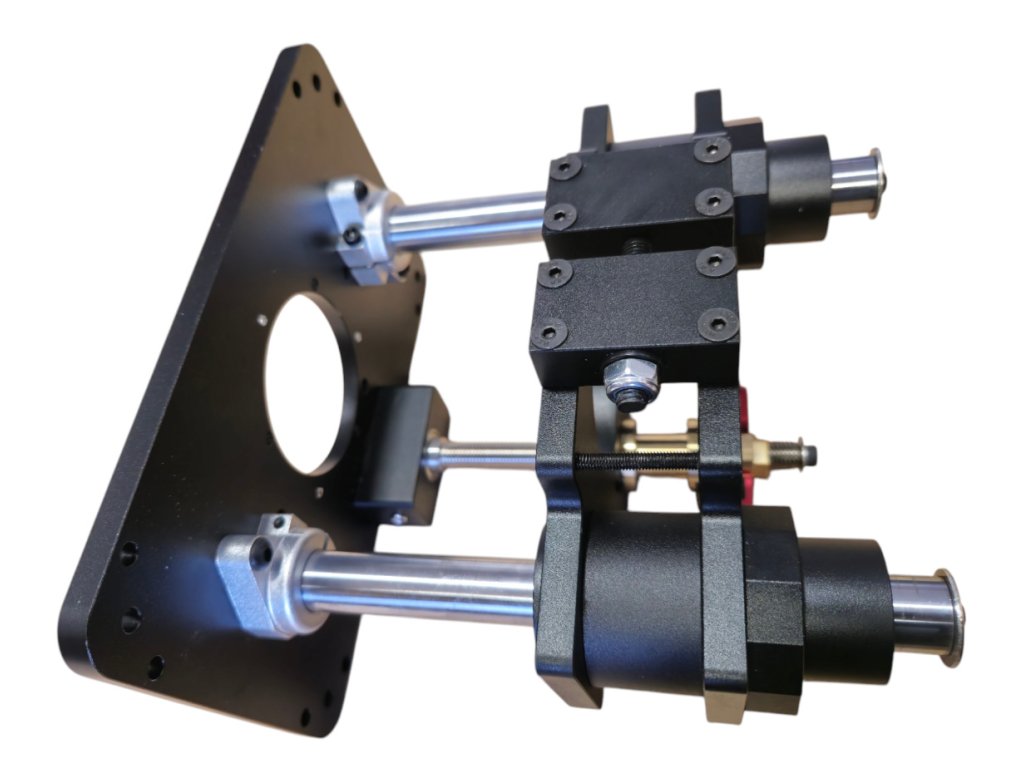

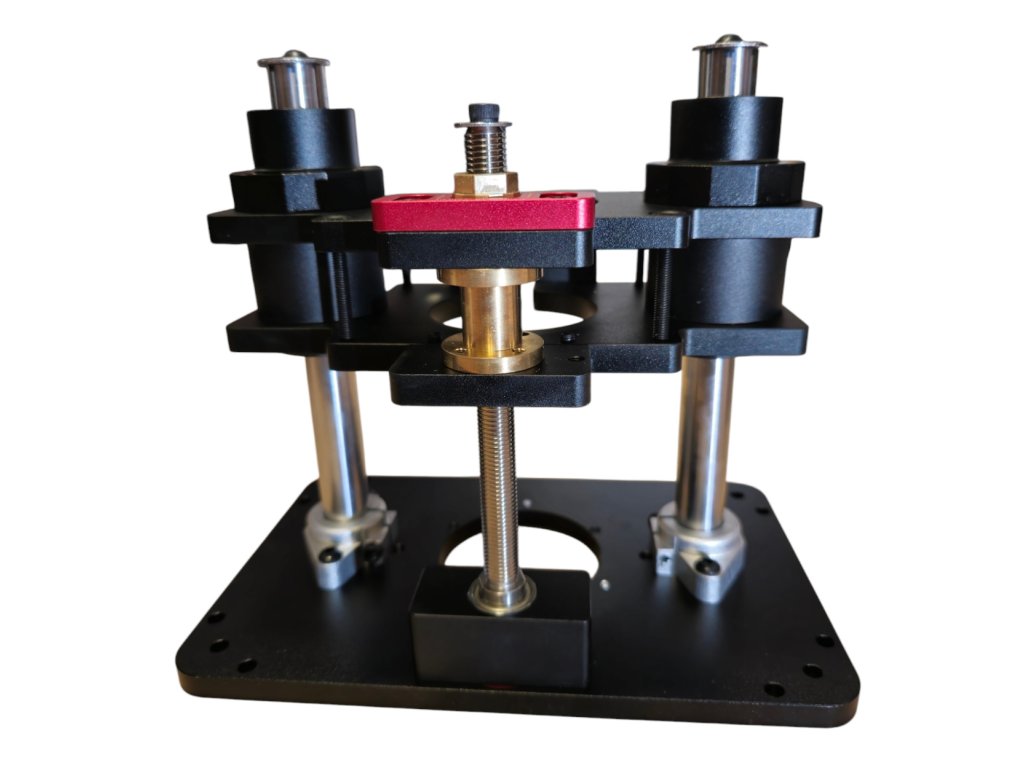

• Transmission system: Precision threaded mechanism
• One turn :1.5 mm travel with micro-adjustment
• Surface finish: Scratch and wear resistant

Raising and lowering the cutter in the router table can be challenging if you have to reach under the table each time to change the depth of cut. The ability to adjust the height from above greatly simplifies this process and saves time.

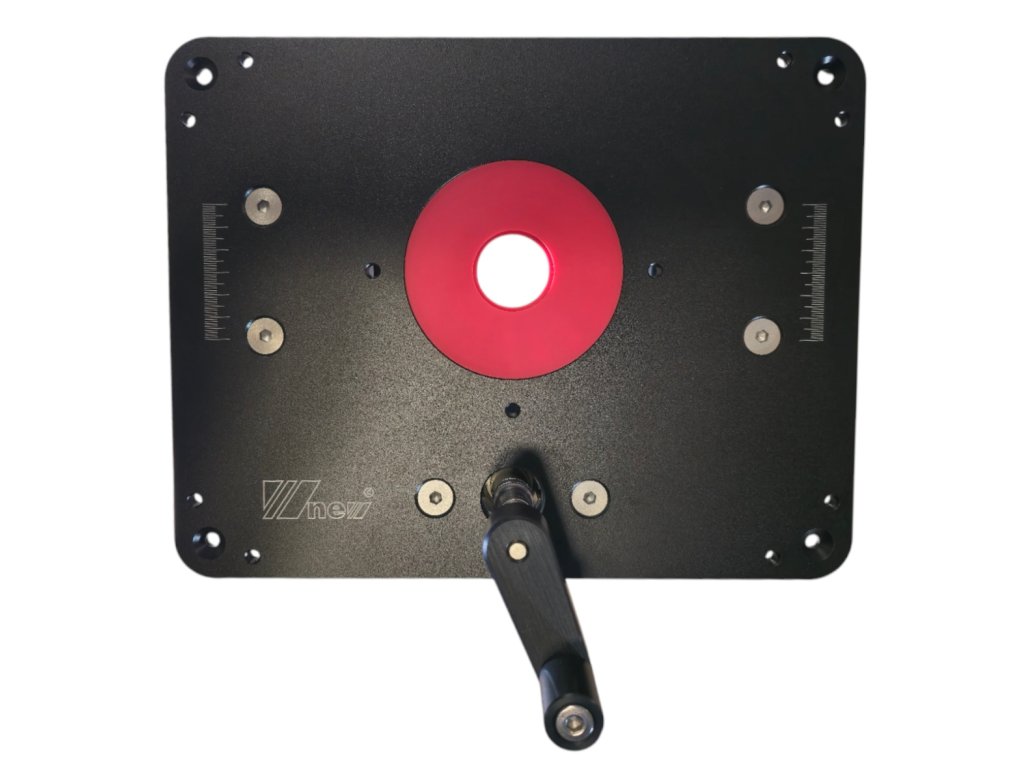

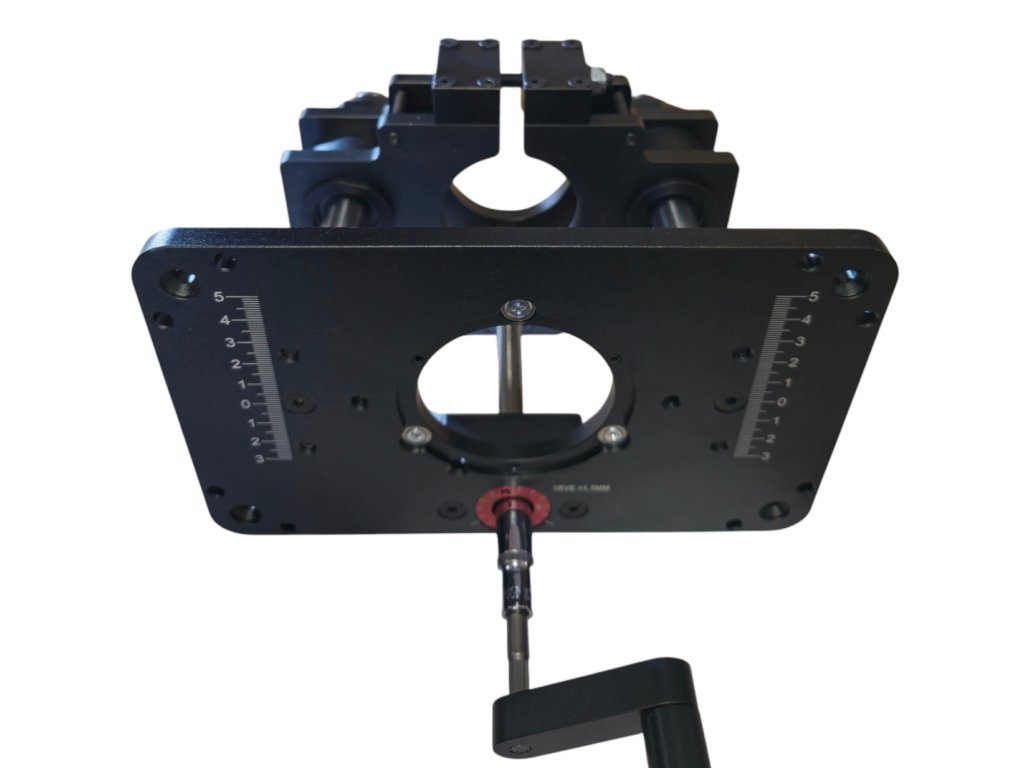

This router table offers fast, accurate and easy cutter height adjustment for a wide range of applications. The depth of cut is conveniently adjusted with a knob, with one turn changing the cutter height by 1.5 mm. The integrated scale with 0.1 mm accuracy allows maximum control over the milling process.

The milling cutter mounts directly or with an adapter ring, ensuring universal compatibility.

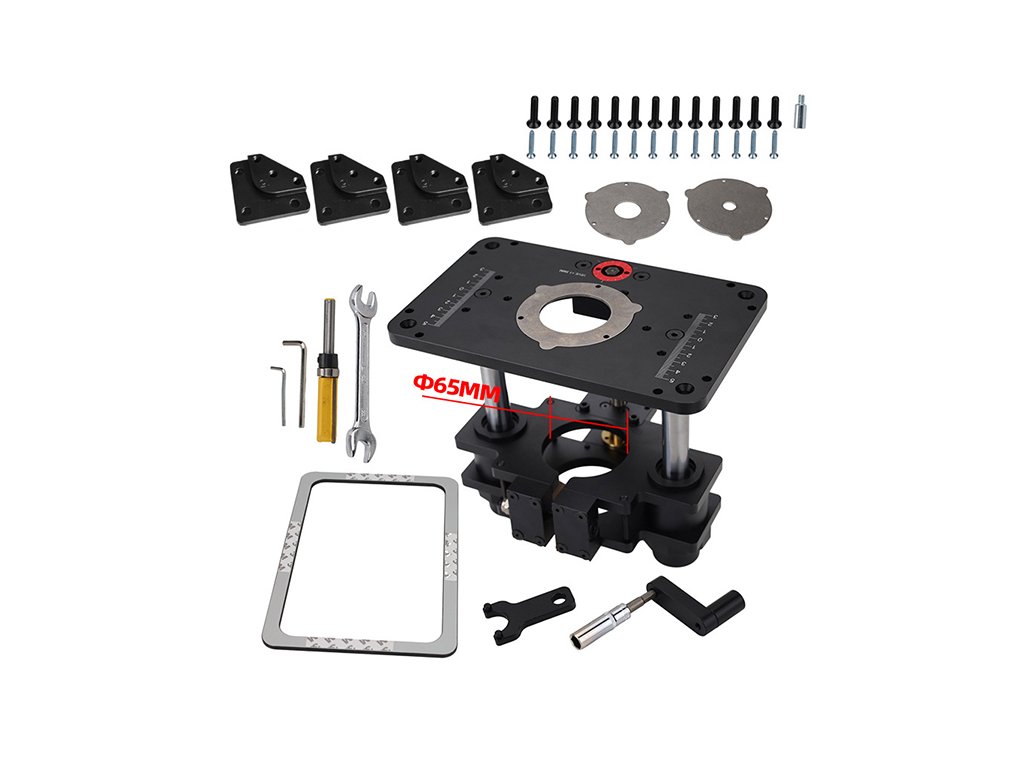

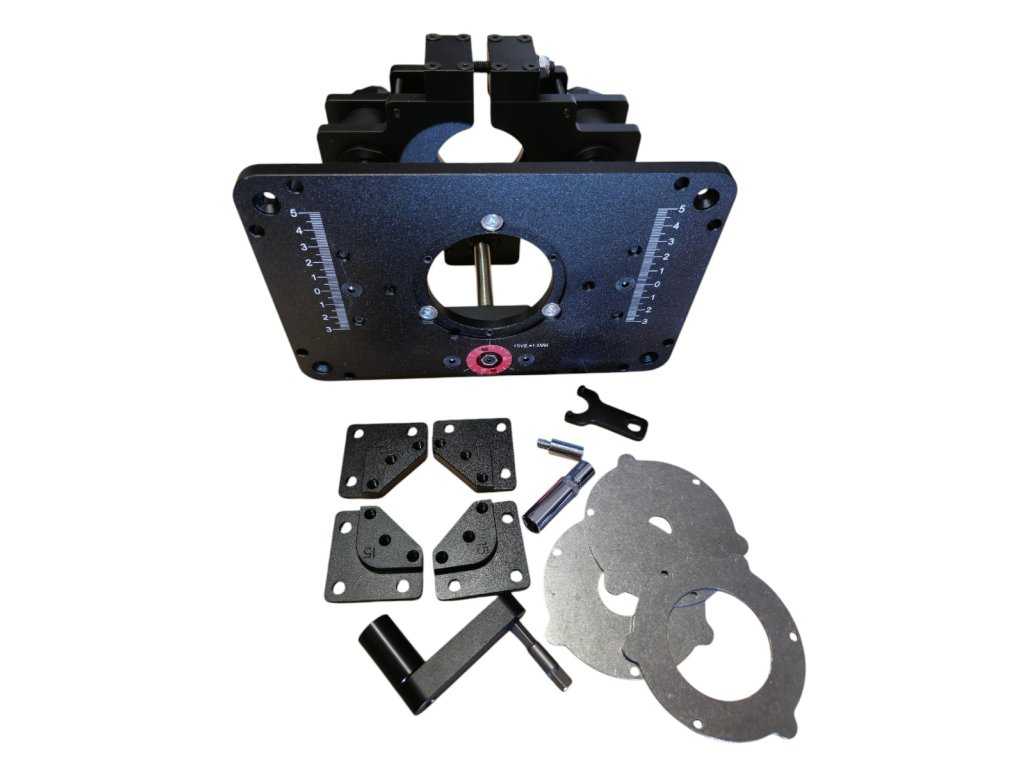

Package contents

📦 Complete kit for easy installation

• 1× lifting system for the upper milling machine
• 3× insertion rings for stable fixing
• 1x handle for easy height adjustment
• 1× mounting wrenches for easy adjustment
• 4× adjustment blocks for precise height adjustment
• 1× cutter for precise alignment
• 1x copy frame for making a hole in the table

Professional precision for every workshop

💡 Ideal for:

✔ Joiners who require perfect milling accuracy

✔ Demanding DIYers looking for a stable and reliable solution

✔ Milling grooves, decorative profiles and precision edge machining

✔ Batch production where repeatability of settings is key

🔧 How to choose the right milling table?

1. Setting accuracy

✅ Micro height adjustment - fine tuning for maximum control

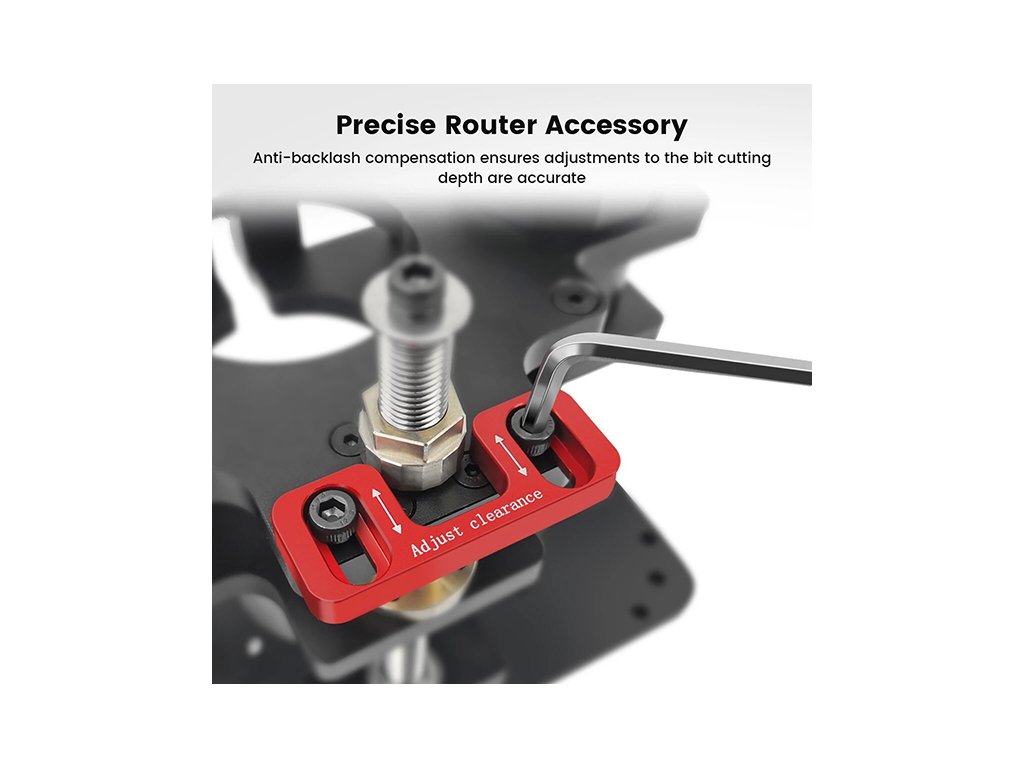

✅ S mooth, backlash-free operation - precision gear mechanism

✅ Height control scale - clearly legible markings

2. Easy to operate

✅ Height adjustment from above - convenient height change without disassembly

✅ Quick cutter change - no need to access under the table

3. Durability and compatibility

✅ Aluminium alloy - high strength and long service life

✅ Standardized dimensions - compatible with most milling tables

✅ Reduction rings can be used for different types of milling machines

4. Safety features

✅ Stable design - minimizes vibration during operation

✅ Dust protection - prevents dirt from settling in the mechanism
