Mafell | Multifunctional milling machine MF 26 cc - plasterboard

Product detailed description

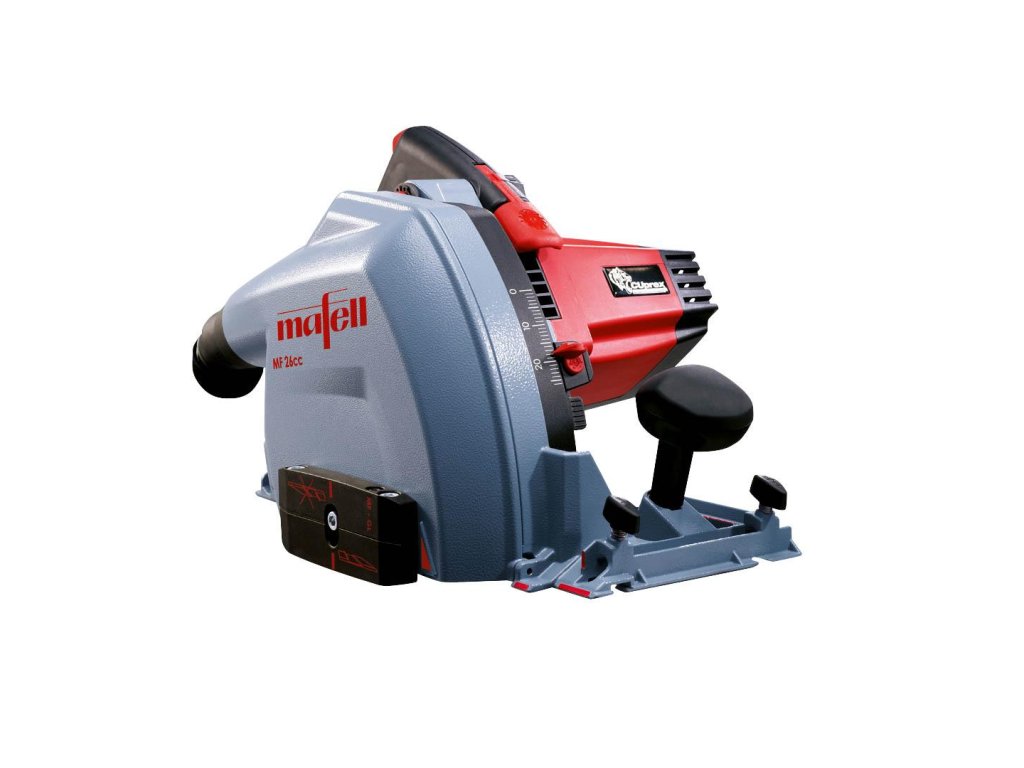

Mafell MF 26 cc - a true multitalent.

The MF 26 cc multifunctional milling machine from Mafell is a powerful tool that will become an indispensable part of your workshop thanks to its versatility and efficiency.

Whether you are involved in timber construction, plasterboard construction or facade work, the MF 26 cc gives you exactly what you need for professional results.

This milling machine is synonymous with versatility, from longitudinal and transverse grooves, through notches and V-grooves, to chamfering and precision cutting.

For plasterboard work, it offers techniques for easy folding and bending of boards, while in façade construction it excels at edge milling and cutting composite materials such as aluminium panels.

The MF 26 cc is designed with durability and precision in mind, as demonstrated by its premium components, including lightweight magnesium die-castings and impact-resistant fiberglass-reinforced plastic parts. This makes the tool not only robust, but also surprisingly light and easy to handle. Take advantage of a wide range of special accessories and discover new possibilities in your daily work. With the MF 26 cc from Mafell you get not only a milling machine, but a reliable partner for your highest demands on quality and efficiency.

• The MF 26 cc impresses with extremely robust, high-quality and precisely manufactured components made of lightweight magnesium alloy or glass fibre reinforced plastic parts.
• With the MF 26 cc you can cut up to a depth of 26 mm with the help of the guide bar, it can also be used as a plunge saw.
• What is true for cutting is also true for milling. The high precision is particularly useful with the "System-F" guide rails.
• Continuous speed adjustment up to 6250 rpm. For milling, cutting and grooving in various materials.

Strengths:

• Thanks to the adjusting screw, the milling depth can be set on the indicator with a precision of 0.1 mm.
• Additional safety device - the slider runs on the surface of the material, preventing the machine from tilting and giving the MF 26 cc more stability when used on the "System-F" guide rail.
• The tool cover can only be opened using the button in the machine handle. This automatically activates the spindle lock and blocks the motor switch against reactivation.
• With or without guide rail - by simply turning the pointer, the cutting depth is always precisely adjusted.

Field of application:

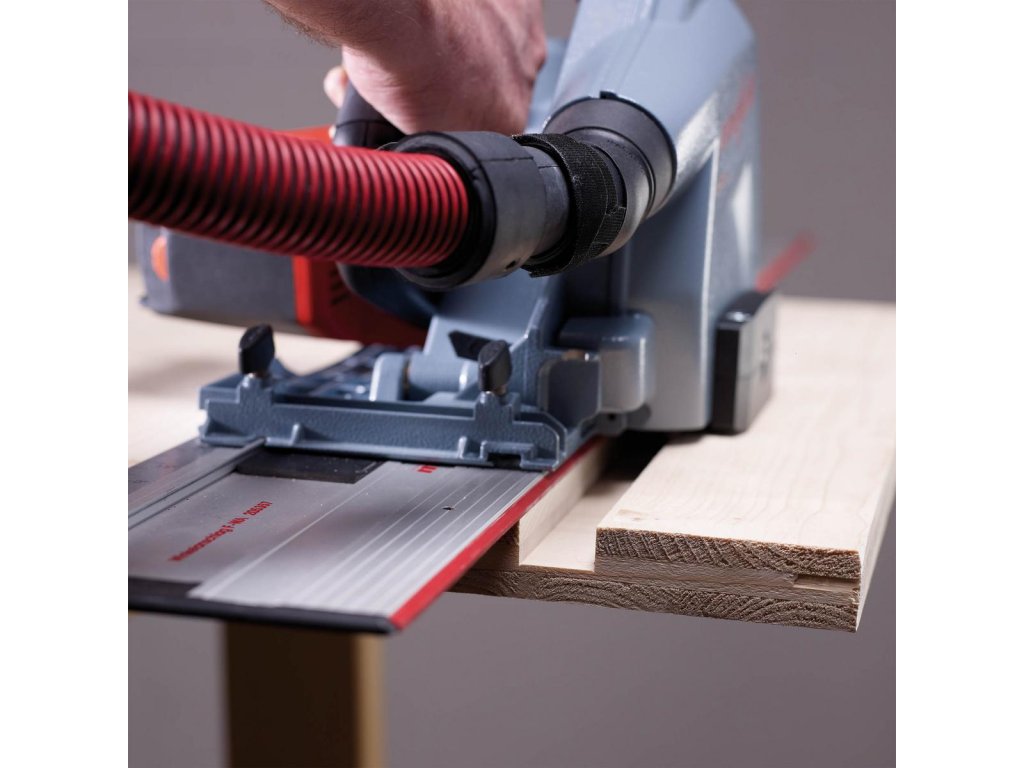

• Longitudinal and transverse grooves
• V-grooves

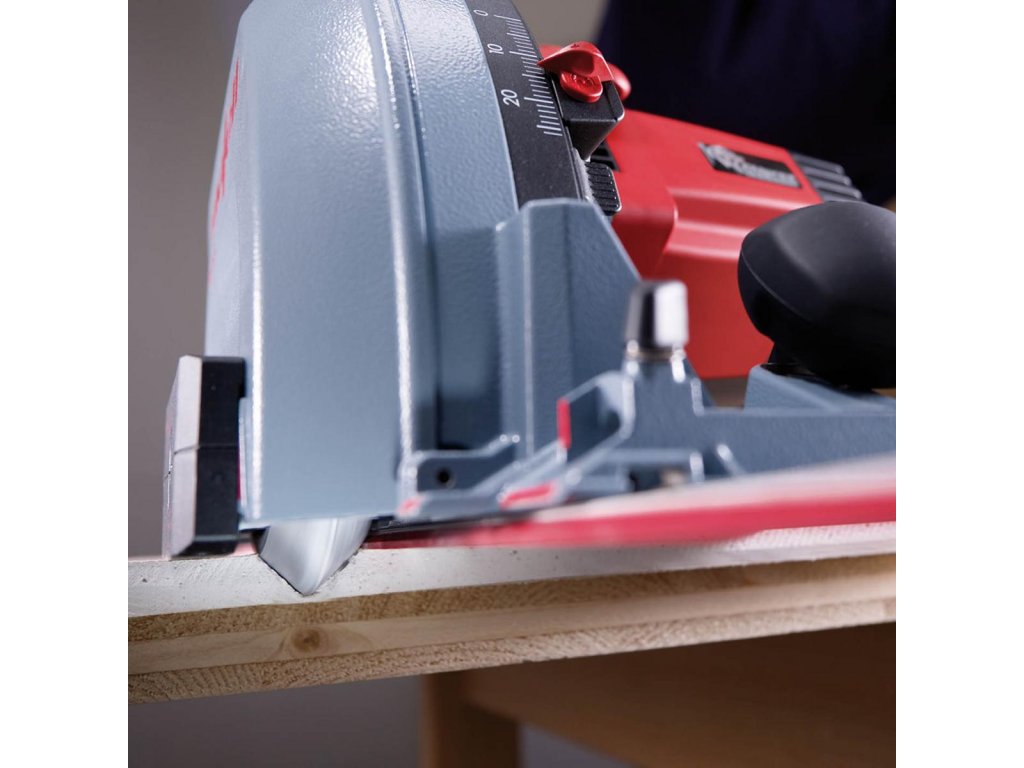

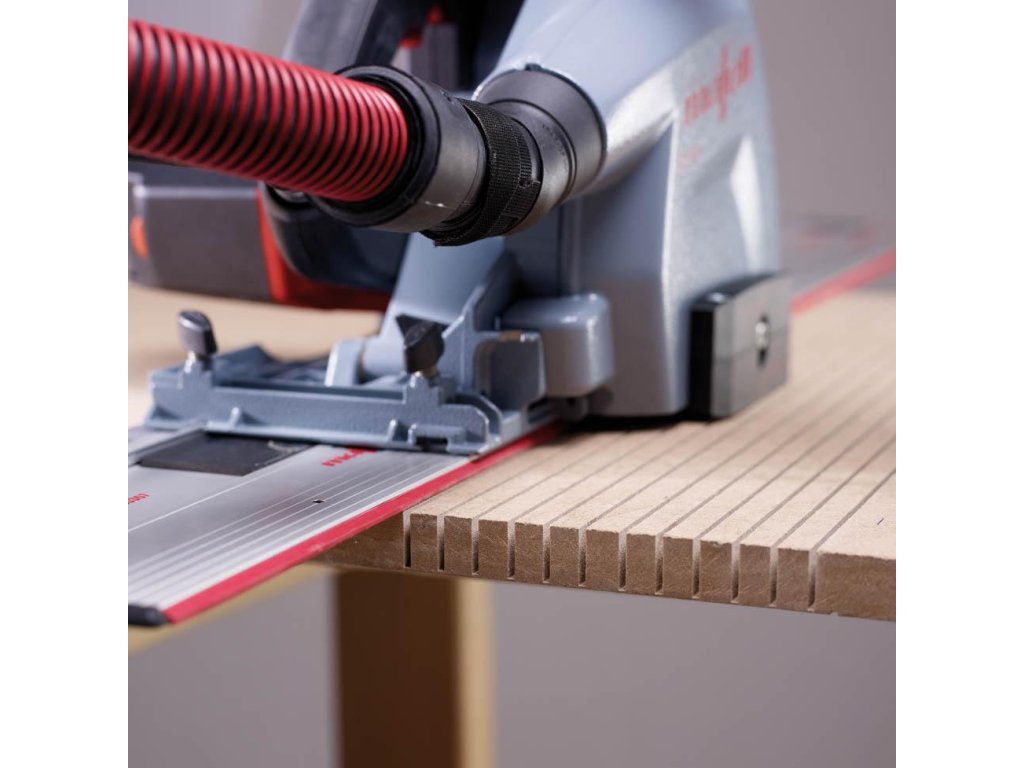

• Corner folding and bending technology for plasterboard

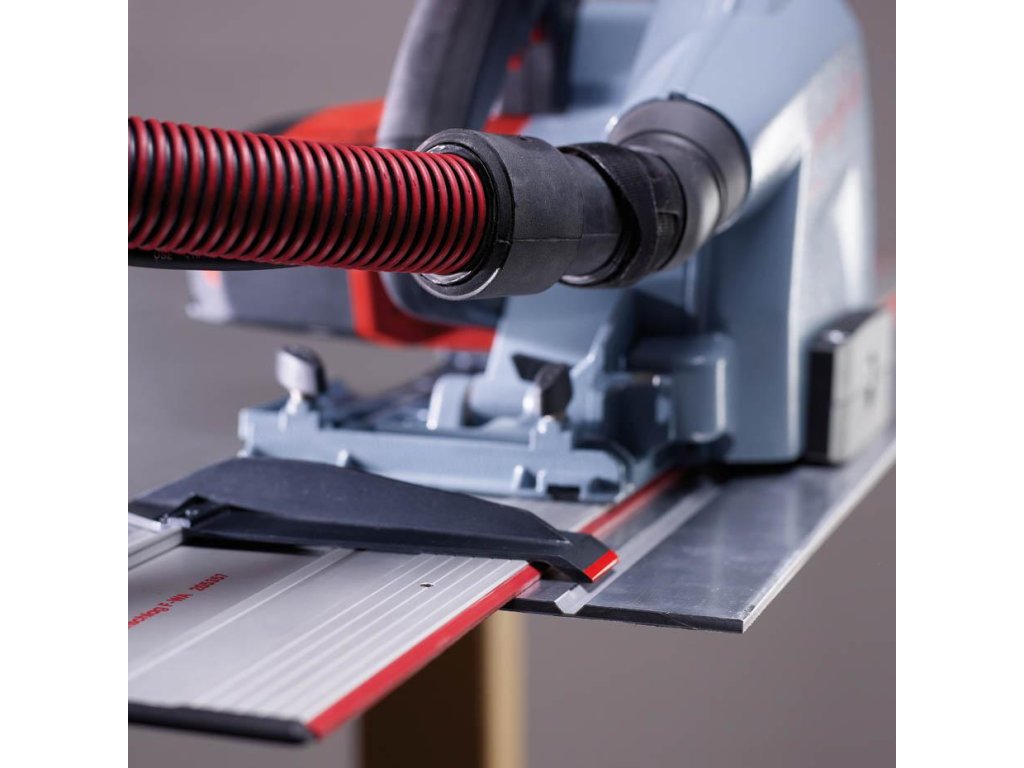

• Folding corners in aluminium composite panels
• Materials e.g.: solid wood, MDF, plasterboard, aluminium composite boards, sandwich materials (skybond, dibond)

Product Features:

• With the high-performance CUprex engine
• 26 mm milling depth
• Applicable on guide rails - System F
• Quick tool change thanks to flip-up cover

Technical data:

• Rated power: 1400 W,
• Universal motor: 230 V / 50 Hz,
• Idle speed: 3600 - 6250 rpm,
• Milling/cutting speed: 39.9 m/s,
• Milling depth: 0 - 26 mm,
• Weight: 4.9 kg.

Scope of delivery:

• 1 x Machine
• 1 x Saw blade HM 120 x 1,2/1,8 x 20 mm, Z 24, WZ for universal cuts in wood.
• 1 x Plasterboard cutter MF-GF 90 for 90° V grooves up to 8 mm deep (incl. 2 position indicators and 1 sprue extractor).
• 1 x Parallel stop.
• 2 x Position indicator
• 1 x 4 m supply cable
